Roland MICRO CUBE RX Guide D'utilisation page 8

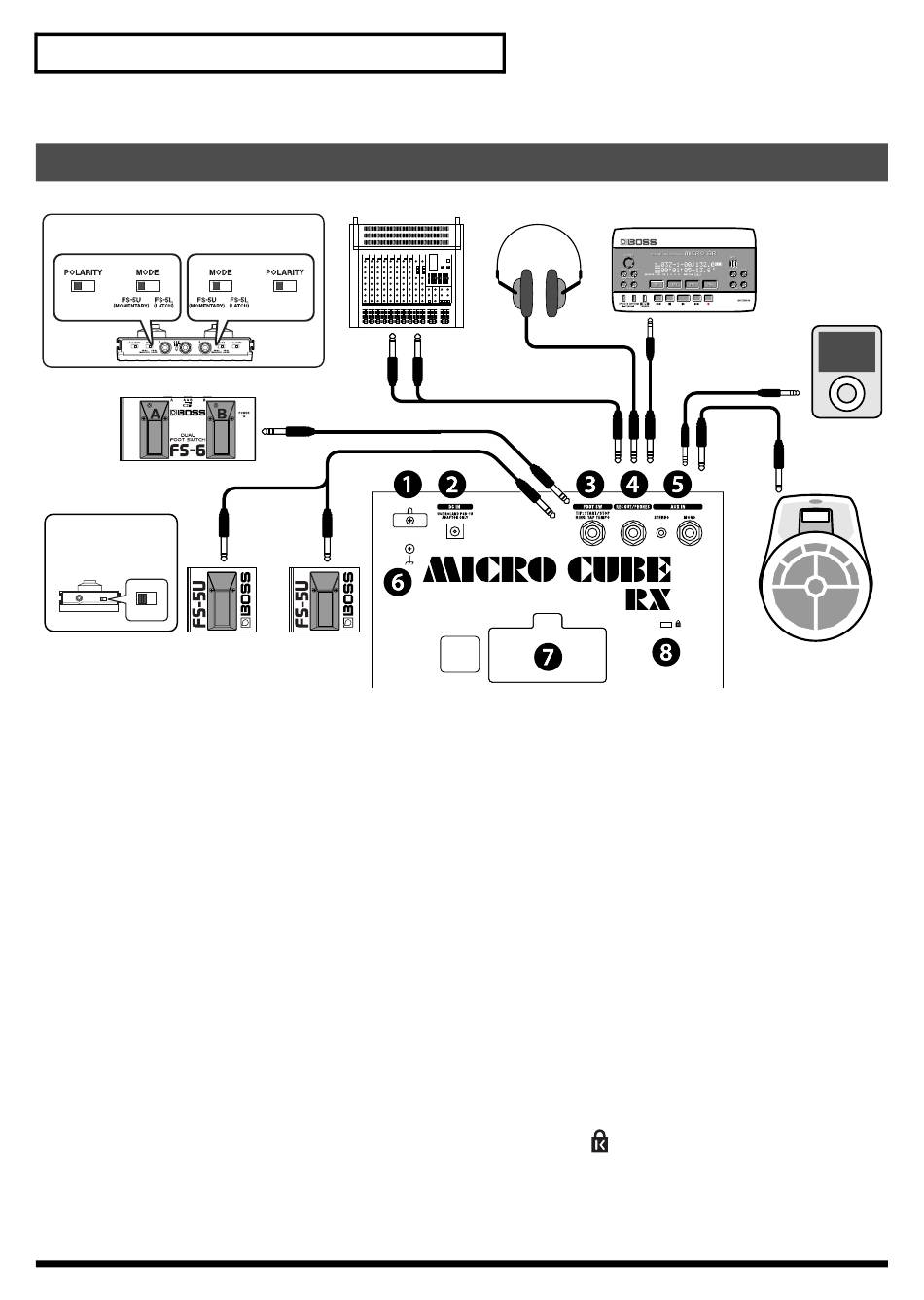

Panel Descriptions
Rear Panel
Set the switches as shown below.
B
Start/Stop
BOSS FS-6
Set the polarity
switch as shown below.
White
Start/Stop
1. Cord Hook
Hook the AC adaptor cord here.
→ Connecting the AC Adaptor (p. 5)
2. AC Adaptor Jack
Connect the included AC adaptor to this jack.
Use only the AC adaptor included with the MICRO CUBE RX. Use of
other AC adaptors may damage the amp or result in other problems.
→ Connecting the AC Adaptor (p. 5)
3. FOOT SW (Footswitch) Jack
If you connect a footswitch (the optional BOSS FS-5U or FS-6), you can
operate the RHYTHM GUIDE function (START/STOP and TAP TEMPO).
4. REC OUT/PHONES Jack
Connect stereo headphones or a recording device to this jack.
It supports stereo output.
* No sound is played through the unit's speaker while the REC
OUT/PHONES jack is in use.
5. AUX IN Jack
You can connect devices such as a CD player, digital audio player or
electronic musical instrument, and have it play along with your guitar.
Offers two types of jacks for external input; a mono 1/4" phone jack
and a stereo-mini jack. Use the appropriate cable (optional) for
the device that you are connecting.
* Determine the volume level by adjusting the volume control
of the connected device.
6. Ground Terminal
Depending on the circumstances of a particular setup, you may
experience a discomforting sensation, or perceive that the surface feels
8
A
White (L ch)
Tap Tempo
PCS-31
Red
BOSS FS-5U
Tap Tempo
Mixer Stereo Headphones
Red (R ch)
PCS-31
gritty to the touch when you touch this device, microphones connected
to it, or the metal portions of other objects, such as guitars. This is due to
an infinitesimal electrical charge, which is absolutely harmless. However,
if you are concerned about this, connect the ground terminal with an
external ground. When the unit is grounded, a slight hum may occur,
depending on the particulars of your installation. If you are unsure of
the connection method, contact the nearest Roland Service Center, or
an authorized Roland distributor, as listed on the "Information" page.
Unsuitable places for connection
• Water pipes (may result in electrical shock)
• Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be dangerous
in the event of lightning)
This unit may emit a noticeable amount of noise due to interference
from external devices or the power outlet to which it is connected.
Connecting the ground terminal to an external ground can reduce
these noise levels.
7. Battery Compartment
Insert 6 AA batteries. Use only alkaline batteries (LR6).
You cannot use any other type of battery.
→ Inserting Batteries (p. 5)
8. Security Slot (
You can connect commercially available anti-theft security cables
and other security devices to the unit.
http://www.kensington.com/
Recorder
Stereo Cable
Stereo Mini Cable
Electronic Musical
Instruments, etc.
)
Digital
Audio
Player
Standard
Mono Cable
