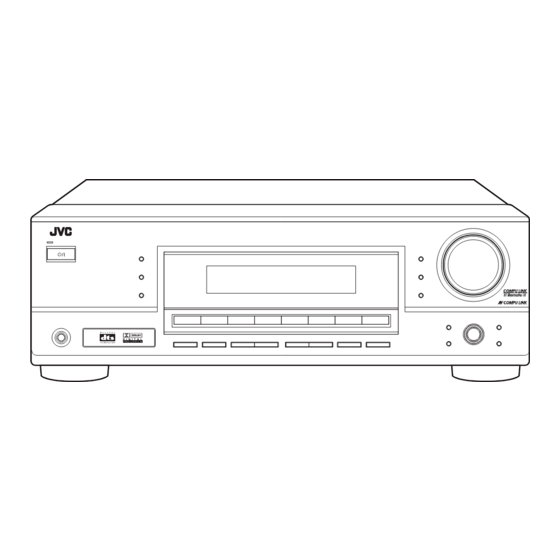

AUDIO/VIDEO CONTROL RECEIVER
RECEPTEUR DE COMMANDE AUDIO/VIDEO
RX-6030VBK/RX-6032VSL
RX-5030VBK/RX-5032VSL
STANDBY
TA/NEWS/INFO
STANDBY/ON
DISPLAY MODE
PHONES
RX–6030V
AUDIO/VIDEO CONTROL RECEIVER
SURROUND
DSP
DIGITAL AUTO
SPK
1 2
ONE TOUCH OPERATION
BASS BOOST
INPUT ATT
ANALOG
L
C
R
PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO
LINEAR PCM
S.WFR LFE
SURROUND/DSP
DIGITAL
LS
S
RS
OFF
CH–
DVD MULTI
DVD
VCR
TV SOUND
CD
D I G I T A L
SPEAKERS
SUBWOOFER OUT
FM/AM TUNING
FM/AM RESET
P R O L O G I C
ON/OFF
ON/OFF
INSTRUCTIONS
MANUAL D'INSTRUCTIONS
MASTER VOLUME
DIMMER
INPUT DIGITAL
EON RDS
SLEEP
VOLUME
INPUT ANALOG
INPUT ATT
TAPE/CDR
FM
AM
MULTI JOG
SETTING
ADJUST
SOURCE NAME
SET
EXIT
FM MODE
MEMORY
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0984-002B
[C]

Publicité

Chapitres

Table des Matières
loading

Sommaire des Matières pour JVC RX-6030VBK

  • Page 1 AUDIO/VIDEO CONTROL RECEIVER RECEPTEUR DE COMMANDE AUDIO/VIDEO RX-6030VBK/RX-6032VSL RX-5030VBK/RX-5032VSL MASTER VOLUME RX–6030V AUDIO/VIDEO CONTROL RECEIVER STANDBY TA/NEWS/INFO SURROUND DIMMER STANDBY/ON INPUT DIGITAL DISPLAY MODE DIGITAL AUTO ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP ANALOG VOLUME PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO LINEAR PCM S.WFR LFE...
  • Page 2: Warnings, Cautions, And Others/Mises En Garde, Précautions Et Indications Diverses

    Dégagement de 15 cm ou plus Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. RX-6030VBK/RX-6032VSL Back: No obstructions in 15 cm from the back. RX-5030VBK/RX-5032VSL Bottom: No obstructions, place on the level surface.
  • Page 3: Table Des Matières

    Adjusting Speaker Output Levels Using Test Tone ....20 RX-6030V Features with this mark are provided ONLY RX-6032V Adjusting Subwoofer Output Level ......... 21 ONLY for RX-6030VBK and RX-6032VSL. Differences between RX-6030VBK/RX-6032VSL and RX-5030VBK/RX-5032VSL Main unit : Supplied : Not supplied Color Video input terminals AV COMPU LINK...
  • Page 4: Parts Identification

    EXIT button (15, 19) 5 Remote sensor (10) s ADJUST button (19) 6 Display (For details, see “Display” on the next page.) d For RX-6030VBK and RX-6032VSL 7 • INPUT ANALOG button (17) • Source selection buttons (11) • INPUT ATT button (18)
  • Page 5: Remote Control

    @ Digital signal format indicators (17) 6 DSP indicator (25, 27) # CH– indicator (22) 7 H.PHONE indicator (13) $ Main display 8 RX-6030VBK and RX-6032VSL only: BASS BOOST indicator (18) Remote Control Remote Control See pages in parentheses for details.
  • Page 6 Parts Identification Rear Panel—RX-6030VBK/RX-6032VSL DIGITAL 1 (DVD) COMPU LINK- MONITOR OUT COMPU LINK-4 ANTENNA (SYNCHRO) FM 75 COAXIAL DIGITAL 2 ( CD ) MONITOR AUDIO (REC) TAPE RIGHT LEFT /CDR CENTER SURROUND FRONT DIGITAL IN FRONT (PLAY) SPEAKER SPEAKERS SPEAKERS...
  • Page 7: Getting Started

    Getting Started Rear panel Before Installation General Precautions • DO NOT insert any metal object into the unit. • DO NOT disassemble the unit or remove screws, covers, or cabinet. • DO NOT expose the unit to rain or moisture. Locations •...
  • Page 8: Connecting The Speakers And Subwoofer

    Getting Started 7 Speaker layout diagram Connecting the Speakers and Subwoofer You can connect five speakers—a pair of front speakers, a center speaker, and a pair of surround speakers—and a subwoofer. Center speaker CAUTION: Right front Left front Subwoofer speaker speaker Use speakers with a SPEAKER IMPEDANCE as indicated by the speaker terminals.
  • Page 9: Connecting Audio/Video Components

    By using these terminals, you can get better picture quality in the RX-6030V RX-6032V order of— Composite video < S-video < Component video. RX-6030VBK and RX-6032VSL have the following ONLY video terminals and you can use any of them to However, remember that the video signals from one type of...
  • Page 10 Ç To composite video output SURR (REAR) (PLAY) (PLAY) Î To composite video input RIGHT LEFT VIDEO S-VIDEO RX-6030VBK and RX-6032VSL only TV SOUND ‰ To S-video input SUBWOOFER RIGHT LEFT Ï To S-video output AUDIO Ì To component video output RX-6030V...
  • Page 11 RX-6030VBK/RX-6032VSL Rear panel Å To surround left/right audio output ı To center audio output Ç To subwoofer audio output Î To front left/right audio output ‰ To composite video output Ï To S-video output Ì To component video output DVD player...
  • Page 12: Digital Connections

    Getting Started Digital Connections Connecting the Power Cord This receiver is equipped with two DIGITAL IN terminals—one digital coaxial terminal and one digital optical terminal. Before plugging the power cord into an AC outlet, make sure You can connect any component to one of the digital terminals that all connections have been made.
  • Page 13: Basic Operations

    Press one of the source selection buttons. DVD: Select the DVD player. The selected source name appears on the display. VCR: Select the VCR. RX-6030VBK/RX-6032VSL TV SOUND: Select the TV sound (or the CATV converter). On the front panel CD*: Select the CD player.
  • Page 14: Changing The Source Name

    “CDR” appears on the display when selected as the listening to sound from another component. source. Press one of the audio source selection buttons while RX-6030VBK/RX-6032VSL watching the picture from a video component such as the TAPE/CDR VCR or DVD player.
  • Page 15: Adjusting The Volume

    After using the headphones Adjusting the Volume 1 Press SPEAKERS ON/OFF on the front panel to activate the speakers. On the front panel The H.PHONE indicator goes off and the SPK indicator To increase the volume, turn MASTER VOLUME control lights up.
  • Page 16: Turning Off The Power With The Sleep Timer

    • Speaker output level (see page 20) TA/NEWS/INFO • Surround/DSP mode selection (see pages 26 and 27) SLEEP • RX-6030VBK and RX-6032VSL only: BASS BOOST (see page 18) DISPLAY MODE Notes: • You cannot assign and store different settings for digital input Press SLEEP on the remote control repeatedly.
  • Page 17: Basic Settings

    • Speaker information (see the next column and page 16) • Digital input terminal sources (see page 16) • RX-6030VBK and RX-6032VSL only: Ex.: When “SUBWOOFER YES” is selected. Video input terminal type (see page 16) Press EXIT.
  • Page 18: Selecting The Digital Input Terminals-Digital In

    Basic Settings 7 Speaker distance—DISTANCE UNIT, FRNT DISTANCE, 7 Dynamic range compression—D_COMPRESSION CNTR DISTANCE, SURR DISTANCE You can compress the dynamic range (difference between Select the unit to measure the distance between your listening maximum sound and minimum sound) of the reproduced position and speakers—“METER”...
  • Page 19: Selecting The Analog Or Digital Input Mode

    Front panel Remote control INPUT DIGITAL DISPLAY MODE RX–6030V AUDIO/VIDEO CONTROL RECEIVER Source selection SURROUND buttons DIGITAL AUTO ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP ANALOG VOLUME PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO LINEAR PCM S.WFR LFE SURROUND/DSP...
  • Page 20: Sound Adjustments

    Once you have adjusted the bass boost level, this receiver Note: memorizes the adjustment for each source. When selecting “DVD MULTI” (RX-6030VBK and RX-6032VSL only) Press BASSBOOST on the remote control to select the as the source, this effect does not work.
  • Page 21: Sound Adjustments Using Multi Jog Dial

    Turn MULTI JOG dial to select an item you Sound Adjustments Using MULTI JOG Dial want to adjust. You can adjust the sound using MULTI JOG dial on the front TREBLE SUBWFR LEVEL* BASS panel. FRONT L LEVEL FRONT R LEVEL •...
  • Page 22: Sound Adjustments Using Remote Control

    Sound Adjustments 7 Tone—BASS, TREBLE 7 Panorama control for Pro Logic II Music— PANORAMA CTRL Adjust the bass and treble sounds as you like (–10 to +10 in 2 step intervals). You can turn on or off the Panorama control for Pro Logic II •...
  • Page 23: Adjusting Subwoofer Output Level

    Press SOUND. Press SOUND, then press TEST to stop the test tone. The 10 keys are activated for sound adjustments. Press TEST. “TEST TONE L” starts flashing on the display and a test Adjusting Subwoofer Output Level tone comes out of the speakers in the following order: Make sure the subwoofer setting is set to “YES”...
  • Page 24: Tuner Operations

    Tuner Operations Front panel Remote control A/V CONTROL RECEIVER RX-6030VBK/RX-6032VSL TAPE/CDR FM/AM 10 keys RX-5030VBK/RX-5032VSL SOURCE NAME RX–6030V AUDIO/VIDEO CONTROL RECEIVER STANDBY SURROUND DIMMER STANDBY/ON INPUT DIGITAL DIGITAL AUTO ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP ANALOG PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO...
  • Page 25: To Tune In To A Preset Station

    Select the band (FM or AM). AUTO Normally select this (initial setting). When a program is broadcast in stereo, you will RX-6030VBK/RX-6032VSL hear stereo sound; when in monaural, you will Press FM or AM. hear monaural sound. This mode is also useful to The last received station of the selected band is tuned in.
  • Page 26: Creating Realistic Sound Fields

    Creating Realistic Sound Fields You can use the following Surround and DSP modes to Dolby Digital 5.1 channel encoding method (so-called reproduce a realistic sound field: discrete multi-channel digital audio format) records and digitally compresses the left front channel, right front channel, Surround modes center channel, left surround channel, right surround channel, 7 Dolby...
  • Page 27 DSP modes Creating sound field 7 DAP (Digital Acoustic Processor) modes Reflections from behind DAP modes have been designed to create important acoustic Early reflections surround elements. The sound heard in a live club, dance club, hall or pavilion consists of direct sound and indirect sound—early reflections and reflections from behind.
  • Page 28: Using Surround Modes

    • Do not change the speaker setting while using any Surround/DSP modes; otherwise, the Surround/DSP modes may be canceled when you deactivate the speakers required for the Surround/DSP modes. RX-6030VBK and RX-6032VSL only: • When DVD MULTI is selected as the source, you cannot use Surround/DSP modes (SURROUND and DSP buttons do not work).
  • Page 29: Using Dsp Modes

    • When analog input is selected: Always lights up. S.WFR • When you select “DVD MULTI” (RX-6030VBK and RX-6032VSL R: • When digital input is selected: Lights up when the only), all the signal indicators except “S” light up.
  • Page 30: Using Dvd Multi Playback Mode (Rx-6030Vbk/Rx-6032Vsl Only)

    RX-6030V RX-6032V Using DVD MULTI Playback Mode ONLY RX-6030VBK RX-6032VSL This section is ONLY for From the remote control This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD A/V CONTROL player. Before playing a DVD, refer also to the manual supplied RECEIVER with the DVD player.
  • Page 31: Compu Link Remote Control System

    When you press the play (3) button on a connected on the receiver. component or on its own remote control, the receiver To use this remote control system, you need to connect JVC’s automatically turns on and changes the source to the audio components through the COMPU LINK-4 (SYNCHRO) component.
  • Page 32: Av Compu Link Remote Control System

    AV COMPU LINK Remote Control System The AV COMPU LINK remote control system allows you to operate JVC’s video components (TV, VCR, and DVD player) through the receiver. To use this remote control system, you need to connect the video components you want to operate following the diagrams below and the procedure on the next page.
  • Page 33 TV tuner so that you can watch TV. • When you select “DVD” or “VCR” (or “DVD MULTI”— RX-6030VBK and RX-6032VSL only) as the source to play Plug the AC power cords of the components into the on the receiver, the TV automatically changes the input AC outlets.
  • Page 34: Operating Jvc's Audio/Video Components

    To operate JVC’s audio components using this remote control: modes. • You need to connect JVC’s audio components through the COMPU LINK-4 (SYNCHRO) jacks (see page 29) in addition to the After pressing SOUND, you can use the following buttons for connections using cables with RCA pin plugs (see page 7).
  • Page 35 After pressing CD, you can use the following buttons for the RX-6030VBK/RX-6032VSL RX-5030VBK/RX-5032VSL CD changer operations: 1 – 10, +10 Select a track number directly. • For track number 5, press 5. CATV CATV A/V CONTROL STANDBY/ON A/V CONTROL STANDBY/ON...
  • Page 36 Operating JVC’s Audio/Video Components Tuner RX-6030VBK/RX-6032VSL RX-5030VBK/RX-5032VSL You can always use the following buttons: FM/AM Alternate between FM and AM. CATV A/V CONTROL CATV A/V CONTROL STANDBY/ON STANDBY/ON RECEIVER RECEIVER After pressing FM/AM, you can use the following buttons for...
  • Page 37: Operating Video Components

    To operate JVC’s video components using this remote control: VCR CH +/– Change the TV channels on the • You need to connect JVC’s video components through the AV VCR. COMPU LINK terminals (see page 30) in addition to the connections using cables with RCA pin plugs (see pages 8 and 9).
  • Page 38: Operating Other Manufacturers' Video Equipment

    Operating Other Manufacturers’ Video Equipment To change the transmission signals for By changing the transmission signals, you can use the remote control supplied for this unit to operate other manufacturers’ operating a CATV converter equipment. 1 Set TV/CATV selector to “CATV.” •...
  • Page 39 After pressing DVD (or DVD MULTI*), you can use the Rewind a tape. following buttons for DVD menu operations: Stop playback or recording. * RX-6030VBK and RX-6032VSL only. Pause playback. To release, press 3. REC PAUSE Press this button to enter recording...
  • Page 40: Troubleshooting

    Troubleshooting Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC service center. PROBLEM POSSIBLE CAUSE SOLUTION The power does not come on. The power cord is not plugged in.
  • Page 41: Specifications

    Specifications Designs & specifications are subject to change without notice. RX-6030VBK/RX-6032VSL Amplifier Output Power: At Stereo operation: 100 W per channel, min. RMS, driven into 8 Ω, 40 Hz to Front channels: 20 kHz with no more than 0.8% total harmonic distortion.
  • Page 42 Specifications RX-5030VBK/RX-5032VSL Amplifier Output Power: At Stereo operation: 100 W per channel, min. RMS, driven into 8 Ω, 40 Hz to Front channels: 20 kHz with no more than 0.8% total harmonic distortion. At Surround operation: 100 W per channel, min. RMS, driven into 8 Ω at 1 kHz with no Front channels: more than 0.8% total harmonic distortion.
  • Page 43 ..........20 ONLY UNIQUEMENT pour les RX-6030VBK et Ajustement du niveau de sortie du caisson de grave .... 21 RX-6032VSL. Différences entre le RX-6030VBK/RX-6032VSL et le RX-5030VBK/RX-5032VSL Appareil principal : Founi : Non fourni Couleur Prises d’entrée vidéo...
  • Page 44: Identification Des Parties

    Touche EXIT (15, 19) 5 Capteur de télécommande (10) s Touche ADJUST (19) 6 Affichage (Pour les détails, voir “Affichage” à la page d Pour le RX-6030VBK et RX-6032VSL suivante.) • Touches de sélection de source (11) 7 • Touche INPUT ANALOG (17) DVD MULTI, DVD, VCR, TV SOUND, CD, TAPE/CDR, •...
  • Page 45: Affichage

    @ Indicateurs de format du signal numérique (17) 6 Indicateur DSP (25, 27) # Indicateur CH– (22) 7 Indicateur H.PHONE (13) $ Affichage principal 8 RX-6030VBK et RX-6032VSL uniquement: Indicateur BASS BOOST (18) Télécommande Télécommande Voir les pages entre parenthèses pour plus de détails.
  • Page 46 Identification des parties Panneau arrière—RX-6030VBK/RX-6032VSL DIGITAL 1 (DVD) COMPU LINK- MONITOR OUT COMPU LINK-4 ANTENNA (SYNCHRO) FM 75 DIGITAL 2 ( CD ) COAXIAL MONITOR AUDIO (REC) TAPE RIGHT LEFT /CDR DIGITAL IN CENTER SURROUND FRONT FRONT (PLAY) SPEAKER SPEAKERS...
  • Page 47: Pour Commencer

    Pour commencer Panneau arrière Avant l’installation Précautions générales • N’INSERER AUCUN objet métallique à l’intérieur de l’appareil. • NE PAS DEMONTER l’appareil ni ne retirer les vis, les couvercles ou le compartiment. • NE PAS EXPOSER l’appareil à la pluie ou à l’humidité. Emplacement •...
  • Page 48: Connexion Des Enceintes Et Du Caisson De Grave

    Pour commencer 7 Schéma de disposition des enceintes Connexion des enceintes et du caisson de grave Vous pouvez connecter cinq enceintes—une paire d’enceintes Enceinte avant, une enceinte centrale et une paire d’enceintes centrale Surround— et un caisson de grave. Caisson de Enceinte Enceinte grave...
  • Page 49: Connexion Des Appareils Audio/Vidéo

    En utilisant ces prises, il est possible d’obtenir une meilleure qualité RX-6030V RX-6032V d’image dans l’ordre— Les RX-6030VBK et RX-6032VSL possèdent les ONLY prises vidéo suivantes que vous pouvez utiliser pour Vidéo composite < S-vidéo < Vidéo composante. connecter un appareil vidéo: Cependant, se rappeler que les signaux vidéo d’une de ces...
  • Page 50 SURR (REAR) (PLAY) (PLAY) Î À l’entrée vidéo composite RIGHT LEFT VIDEO S-VIDEO RX-6030VBK et RX-6032VSL uniquement TV SOUND ‰ À l’entrée S-vidéo SUBWOOFER RIGHT LEFT Ï À la sortie S-vidéo AUDIO Ì À la sortie vidéo en composantes Téléviseur Téléviseur...
  • Page 51 Lecteur de DVD RX-6030VBK/RX-6032VSL Panneau arrière Å À la sortie audio Surround gauche/droite ı À la sortie audio centrale Ç À la sortie audio du caisson de grave Î À la sortie audio avant gauche/droite ‰ À la sortie vidéo composite Ï...
  • Page 52: Connexions Numériques

    Pour commencer Connexions numériques Connexion du cordon d’alimentation secteur Cet ampli-tuner est équipé de deux prises d’entrée numérique DIGITAL IN—une prise numérique coaxiale et une prise Avant de brancher l’ampli-tuner sur une prise d’alimentation numérique optique. secteur, s’assurer que toutes les connexions ont été faites. Il est possible de connecter un appareil numérique à...
  • Page 53: Opérations De Base

    ANALOG Appuyer sur une des touches de sélection de source. /DIGITAL FM/AM TV SOUND Le nom de la source choisie apparaît sur l’affichage. RX-6030VBK/RX-6032VSL DVD: Choisit le lecteur de DVD. Sur le panneau avant VCR: Choisit le magnétoscope. TV SOUND: Choisit le son du téléviseur (ou du...
  • Page 54: Modification Du Nom De La Source

    “CDR” apparaisse sur l’affichage quand l’enregistreur écoutant le son d’un autre appareil. de CD est choisi comme source. Appuyer sur l’une des touches de sélection de source audio, RX-6030VBK/RX-6032VSL tout en regardant l’image d’un appareil vidéo tel qu’un TAPE/CDR magnétoscope, un lecteur de DVD, etc.
  • Page 55: Ajustement Du Volume

    Après avoir utilisé le casque d’écoute Ajustement du volume 1 Appuyer sur SPEAKERS ON/OFF sur le panneau avant pour mettre en service les enceintes. Sur le panneau avant L’indicateur H.PHONE s’éteint et l’indicateur SPK s’allume. Pour augmenter le volume, tourner le réglage MASTER 2 Déconnectez le casque d’écoute.
  • Page 56: Mise Hors Tension De L'appareil Avec La Minuterie D'arrêt

    • Niveau de sortie des enceintes (voir page 20) TA/NEWS/INFO • Sélection du mode Surround/DSP (voir pages 26 et 27) SLEEP • RX-6030VBK et RX-6032VSL uniquement: BASS BOOST (renforcement des graves) (voir page 18) DISPLAY MODE Remarques: • Il n’est pas possible d’affecter et de mémoriser des réglages Appuyer répétitivement sur SLEEP sur la télécommande.
  • Page 57: Réglages De Base

    • Information des enceintes (voir la colonne de droite et page 16) • Sources de la prise d’entrée numérique (voir page 16) • RX-6030VBK et RX-6032VSL uniquement: Ex.: Quand “SUBWOOFER YES” est choisi. Type de prise d’entrée vidéo (voir page 16) Appuyer EXIT.
  • Page 58: Sélection Des Prises D'entrée Numérique-Digital In

    Réglages de base 7 Distance des enceintes—DISTANCE UNIT, FRNT 7 Compression de la plage dynamique—D_COMPRESSION DISTANCE, CNTR DISTANCE, SURR DISTANCE Il est possible de compresser la plage dynamique (différence Choisir l’unité pour mesurer la distance entre la position entre le son maximum et le son minimum) du son reproduit. d’écoute et les enceintes—“METER”...
  • Page 59: Sélection Du Mode D'entrée Analogique Ou Numérique

    Panneau avant Télécommande INPUT DIGITAL DISPLAY MODE RX–6030V AUDIO/VIDEO CONTROL RECEIVER Touches de SURROUND sélection de source DIGITAL AUTO ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP ANALOG PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO VOLUME LINEAR PCM S.WFR LFE...
  • Page 60: Ajustements Sonores

    Une fois que le niveau d’accentuation des graves a été ajusté, Remarque: cet ampli-tuner le mémorise pour chaque source. Lors de la sélection de “DVD MULTI” (RX-6030VBK et RX-6032VSL Appuyer sur BASSBOOST sur la télécommande pour choisir uniquement) comme source, cet effet ne fonctionne pas.
  • Page 61: Ajustements Sonores À L'aide De La Molette Multi Jog

    Tourner la molette MULTI JOG pour choisir Ajustments sonores à l’aide de la molette l’élément à ajuster. MULTI JOG TREBLE SUBWFR LEVEL* BASS Il est possible d’ajuster le son en utilisant la molette MULTI FRONT L LEVEL FRONT R LEVEL JOG sur le panneau avant.
  • Page 62: Ajustements Sonores À L'aide De La Télécommande

    Ajustements sonores 7 Tonalité—BASS, TREBLE 7 Commande panoramique pour Pro Logic II Music— PANORAMA CTRL Ajuste les graves et les aigus selon ses préférences (–10 à +10 par pas de 2 niveaux). Il possible de mettre en ou hors service la commande •...
  • Page 63: Ajustement Du Niveau De Sortie Du Caisson De Grave

    Appuyer sur SOUND. Appuyer sur SOUND, puis appuyer sur TEST pour arrêter la tonalité de test. Les touches numériques sont actives pour les ajustements sonores. Appuyer sur TEST. Ajustement du niveau de sortie du caisson de “TEST TONE L” clignote sur l’affichage et une tonalité de grave test sort des enceintes dans l’ordre suivant: S’assurer que le réglage du caisson de grave est sur “YES”...
  • Page 64: Utilisation Du Tuner

    Utilisation du tuner Panneau avant Télécommande A/V CONTROL RECEIVER RX-6030VBK/RX-6032VSL TAPE/CDR FM/AM Touches RX-5030VBK/RX-5032VSL numériques SOURCE NAME RX–6030V AUDIO/VIDEO CONTROL RECEIVER STANDBY SURROUND DIMMER STANDBY/ON INPUT DIGITAL DIGITAL AUTO ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP ANALOG PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO...
  • Page 65: Accord D'une Station Préréglée

    Pendant l’écoute d’une station FM, appuyer sur FM MODE. Choisir la bande (FM ou AM). • Chaque fois que la touche est pressée, le mode de réception RX-6030VBK/RX-6032VSL FM alterne entre “AUTO” et “MONO”. Appuyer sur FM ou AM. La dernière station reçue de la bande choisie est AUTO Normalement choisir ce réglage (réglage initial).
  • Page 66: Création De Champs Sonores Réalistes

    Création de champs sonores réalistes Il est possible d’utiliser les modes Surround et DSP suivant La méthode de codage Dolby Digital à 5,1 canaux (aussi pour créer un champ sonore réaliste: appelée format audio numérique multicanaux discret) enregistre et compresse numériquement les signaux du canal Modes Surround avant gauche, du canal avant droit, du canal central, du canal 7 Dolby...
  • Page 67 Modes DSP Création d’un champ sonore 7 Modes DAP (Processeur acoustique numérique) Réflexions arrière Les modes DAP ont été conçus pour créer les éléments Réflexions importants de l’acoustique Surround. premières Le son entendu dans un cinéma, un café-concert, un club de danse ou un pavillon est constitué...
  • Page 68: Utilisation Des Modes Surround

    • Ne pas changer le réglage des enceintes pendant l’utilisation des modes Surround/DSP; sinon, les modes Surround/DSP peuvent être annulés quand les enceintes requises pour les modes Surround/DSP sont mises hors service. RX-6030VBK et RX-6032VSL uniquement: • Quand DVD MULTI est choisi comme source, il n’est pas possible d’utiliser les modes Surround/DSP (les touches SURROUND et DSP ne fonctionnent pas).
  • Page 69: Utilisation Des Modes Dsp

    S’allume lors de l’entrée du signal du canal droit. S.WFR • Quand “DVD MULTI” est choisi (RX-6030VBK et RX-6032VSL • Quand l’entrée analogique est choisie: Toujours allumé. uniquement), tous les indicateurs de signal sauf “S” s’allument. C: S’allume lors de l’entrée du signal du canal central.
  • Page 70: Utilisation Du Mode De Lecture Dvd Multi

    RX-6030V RX-6032V Utilisation du mode de lecture DVD MULTI ONLY RX-6030VBK Cette section est UNIQUEMENT pour les À partir de la télécommande RX-6032VSL Cet ampli-tuner possède un mode de lecture DVD MULTI A/V CONTROL permettant la reproduction du mode de sortie analogique RECEIVER discrète du lecteur de DVD.
  • Page 71: Système De Commande À Distance Compu Link

    Système de commande à distance COMPU LINK Sélection automatique de source Le système de commande à distance COMPU LINK vous permet de commander les appareils audio JVC à travers le Quand la touche de reproduction (3) d’un appareil connecté capteur de télécommande de l’ampli-tuner.
  • Page 72: Système De Commande À Distance Av Compu Link

    Système de commande à distance AV COMPU LINK Le système de commande à distance AV COMPU LINK permet de commander les appareils vidéo JVC (téléviseur, magnétoscope et lecteur de DVD) à travers l’ampli-tuner. Pour utiliser ce système de commande à distance, il faut connecter les appareils vidéo que l’on souhaite commander en suivant les illustrations ci-dessous et les procédures de la page suivante.
  • Page 73: Procédure De Connexion

    Brancher les cordons d’alimentation des appareils • Quand “DVD” ou “VCR” (ou “DVD MULTI”—RX-6030VBK et dans les prises secteurs. RX-6032VSL uniquement) est choisi comme source de lecture sur l’ampli-tuner, le téléviseur change Quand le téléviseur est mis sous tension pour la...
  • Page 74: Commande D'appareils Audio/Vidéo Jvc

    Met hors service les modes télécommande: Surround ou DSP. • Il faut connecter les appareils audio JVC par les prises COMPU LINK-4 (SYNCHRO) (voir page 29) en plus de connexions avec les Après appuyer sur SOUND, il est possible d’utiliser les câbles munis de fiches cinch (voir page 7).
  • Page 75 Après appuyer sur CD, il est possible d’utiliser les touches RX-6030VBK/RX-6032VSL RX-5030VBK/RX-5032VSL suivantes pour commander le changeur de CD: 1 – 10, +10 Choisit un numéro de plage directement. • Pour la plage numéro 5, appuyer sur 5. CATV CATV...
  • Page 76 Commande d’appareils audio/vidéo JVC Tuner RX-6030VBK/RX-6032VSL RX-5030VBK/RX-5032VSL Il est toujours possible d’utiliser les touches suivantes: FM/AM Alterne entre FM et AM. CATV CATV A/V CONTROL STANDBY/ON A/V CONTROL STANDBY/ON RECEIVER RECEIVER Après appuyer sur FM/AM, il est possible d’utiliser les touches...
  • Page 77: Commande D'appareils Vidéo

    VCR CH +/– Change les canaux de télévision • Il est nécessaire de connecter les appareils vidéo JVC par les sur le magnétoscope. prises AV COMPU LINK (voir page 30) en plus des connexions à l’aide des câbles à fiches cinch (voir pages 8 et 9).
  • Page 78: Commande D'appareils Vidéo D'autres Fabricants

    Commande d’appareils vidéo d’autres fabricants En changeant les signaux de télécommande, il est possible Pour changer les signaux de télécommande pour d’utiliser la télécommande fournie avec cet appareil pour commander un convertisseur CATV commander les appareils des autres fabricants. 1 Régler le sélecteur TV/CATV sur “CATV”. •...
  • Page 79: Essayer De Commander Le Magnétoscope En Appuyant Sur Standby/On

    Après appuyer sur DVD (ou DVD MULTI*), il est possible d’utiliser les touches suivantes pour commander le menu Arrêter la lecture ou l’enregistrement. de DVD: Mettre la lecture en pause. Pour la * RX-6030VBK et RX-6032VSL uniquement. reprendre, appuyer sur 3. TEST FRONT L FRONT R...
  • Page 80: Guide De Dépannage

    Guide de dépannage Utiliser ce tableau pour aider à résoudre les problèmes de fonctionnement quotidiens. Si certains problèmes ne peuvent pas être résolus, contacter un centre de réparation JVC. PROBLÈME CAUSE POSSIBLE SOLUTION L’appareil ne se met pas sous Le cordon d’alimentation n’est pas Brancher le cordon d’alimentation sur une prise...
  • Page 81: Spécifications

    La conception et les spécifications sont Spécifications sujettes à changement sans notification. RX-6030VBK/RX-6032VSL Amplificateur Puissance de sortie: Pendant le fonctionnement stéréo: 100 W par canal, min. RMS, entraîné sur 8 Ω, 40 Hz à 20 Canaux avant: kHz avec moins de 0,8% de distorsion harmonique totale.
  • Page 82 Specifications RX-5030VBK/RX-5032VSL Amplificateur Puissance de sortie: Pendant le fonctionnement stéréo: 100 W par canal, min. RMS, entraîné sur 8 Ω, 40 Hz à Canaux avant: 20 kHz avec moins de 0,8% de distorsion harmonique totale. Pendant le fonctionnement Surround: 100 W par canal, min. RMS, entraîné sur 8 Ω à 1 kHz avec moins Canaux avant: de 0,8% de distorsion harmonique totale.
  • Page 83 VICTOR COMPANY OF JAPAN, LIMITED EN, FR © 2003 VICTOR COMPANY OF JAPAN, LIMITED 0203NHMMDWJEIN...
