The USB port functionality is described in the USB section above and the Discrete I/O function is
described in the COM2/DIO section above. Refer to these sections for connection and operation
details.
2.5.

PCB Switch Settings

PCB switch settings are described in this section, including settings for main PCB switches and the
discrete I/O switch.
2.5.1.

Main PCB Switches

A six position switch block (Figure 2-67) is located on the main PCB. These switches function as
shown in Table 2-6.
2-34 METTLER TOLEDO IND246 and IND246 POWERCELL Installation Manual

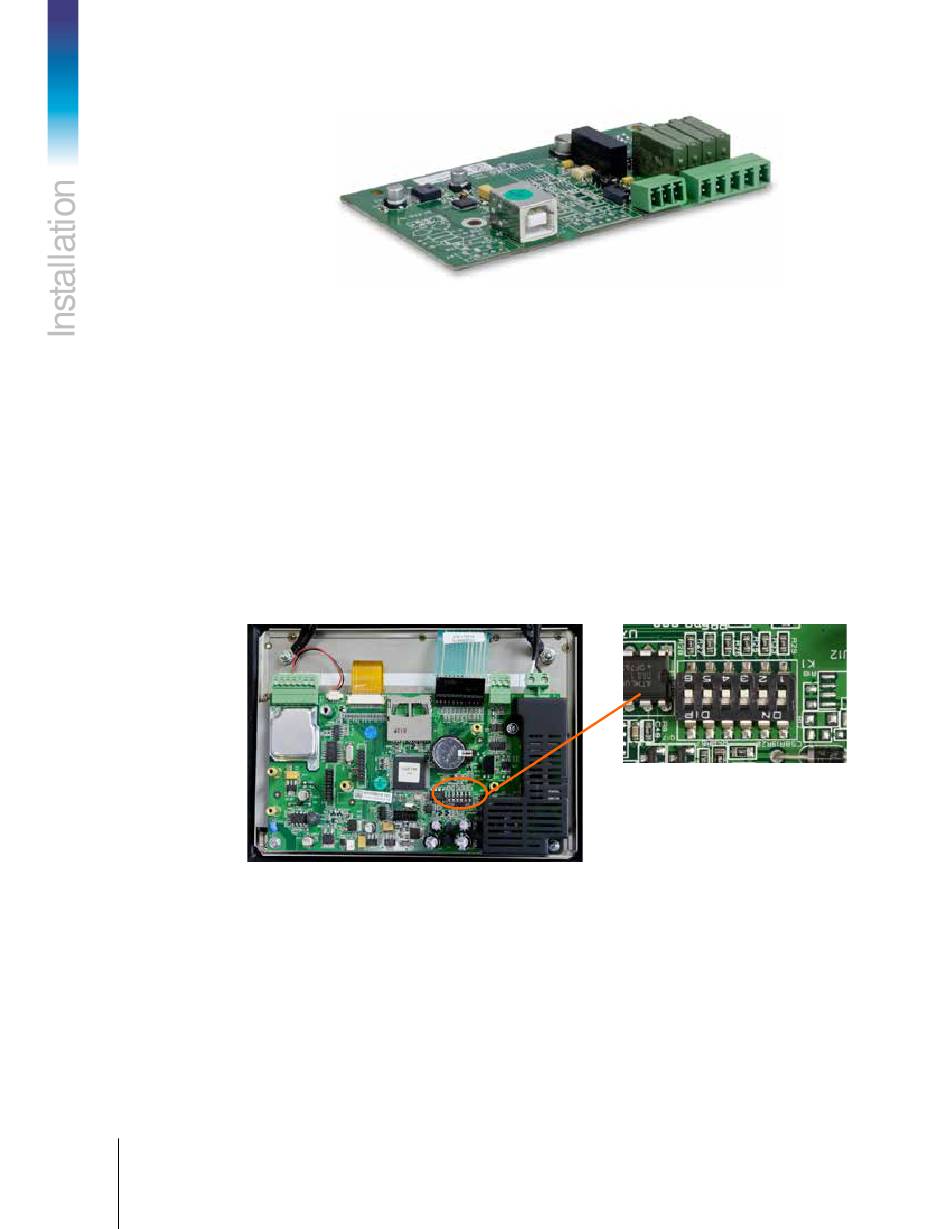

Figure 2-66: USB/DIO Option Board
Figure 2-67: Location of Switch Block 1 on the Main PCB, Analog Version
64084463 | 02 | 12/2013
