Some examples of connecting external equipment are shown in Figure 2-23.
2.4.3.4.1. RS-485 Transmission Line Termination
The RS-485 network should include a terminating resistor, installed between the two lines at or on
the last node. The terminating resistor should match the characteristic impedance of the
transmission line, approximately 120 ohms. This terminating resistor is required when connecting
ARM100 modules to the port.
2.4.4.

POWERCELL Cabling

TO AVOID DAMAGE TO THE PCB OR LOAD CELL, REMOVE POWER FROM THE TERMINAL AND WAIT AT LEAST 30
SECONDS BEFORE CONNECTING OR DISCONNECTING ANY HARNESS.
64084463 | 02 | 12/2013

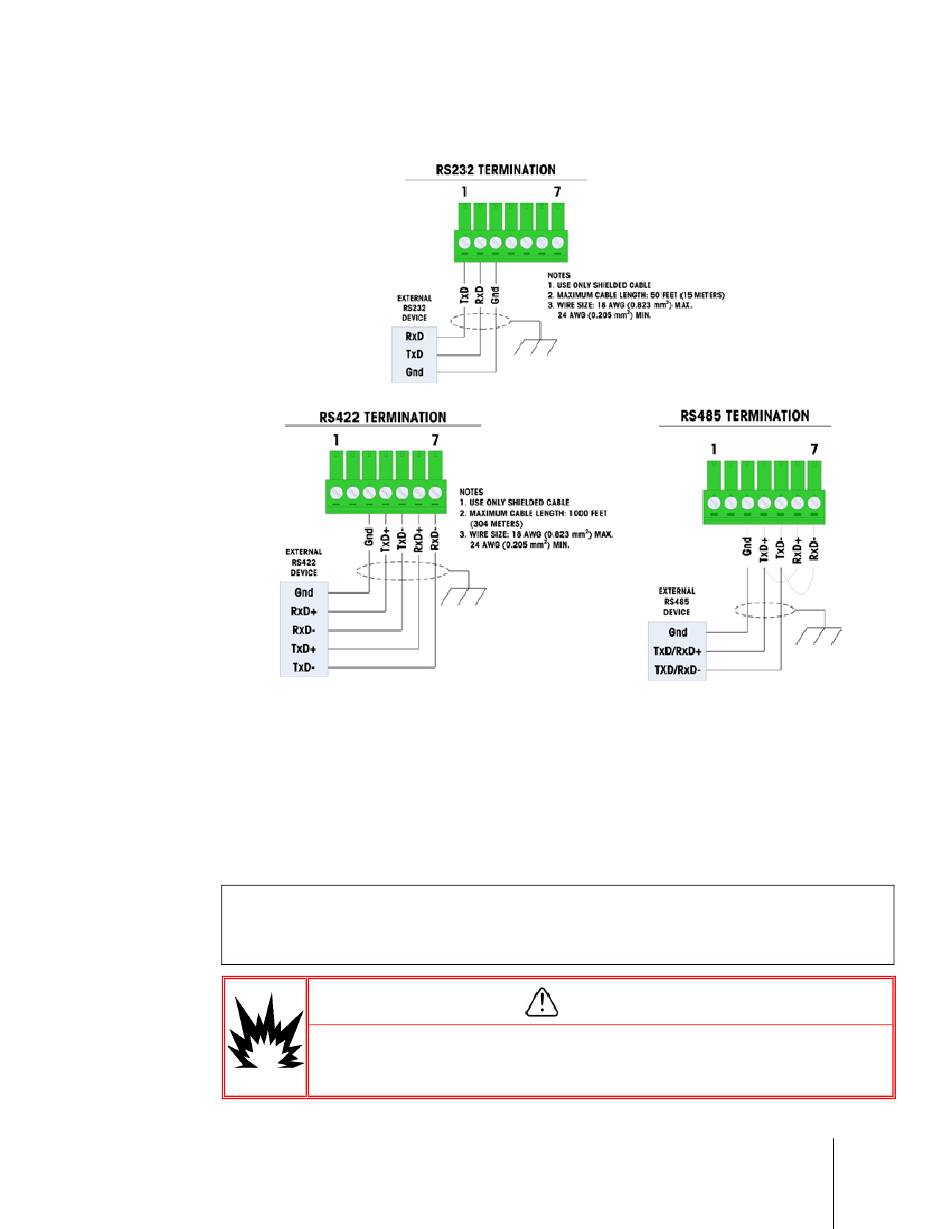

Figure 2-25: Sample COM1 Connections
DO NOT INSTALL THE IND246 POWERCELL TERMINAL IN AREAS CLASSIFIED AS HAZARDOUS
BECAUSE OF COMBUSTIBLE OR EXPLOSIVE ATMOSPHERES. CONTACT AN AUTHORIZED METTLER
TOLEDO REPRESENTATIVE FOR INFORMATION ABOUT HAZARDOUS AREA APPLICATIONS.
METTLER TOLEDO IND246 and IND246 POWERCELL Installation Manual
NOTICE
WARNING
2-17
