Each Wattstopper BZ series power pack can supply power for 14 CI-305
sensors. When using more sensors than this, multiple power packs are
required.

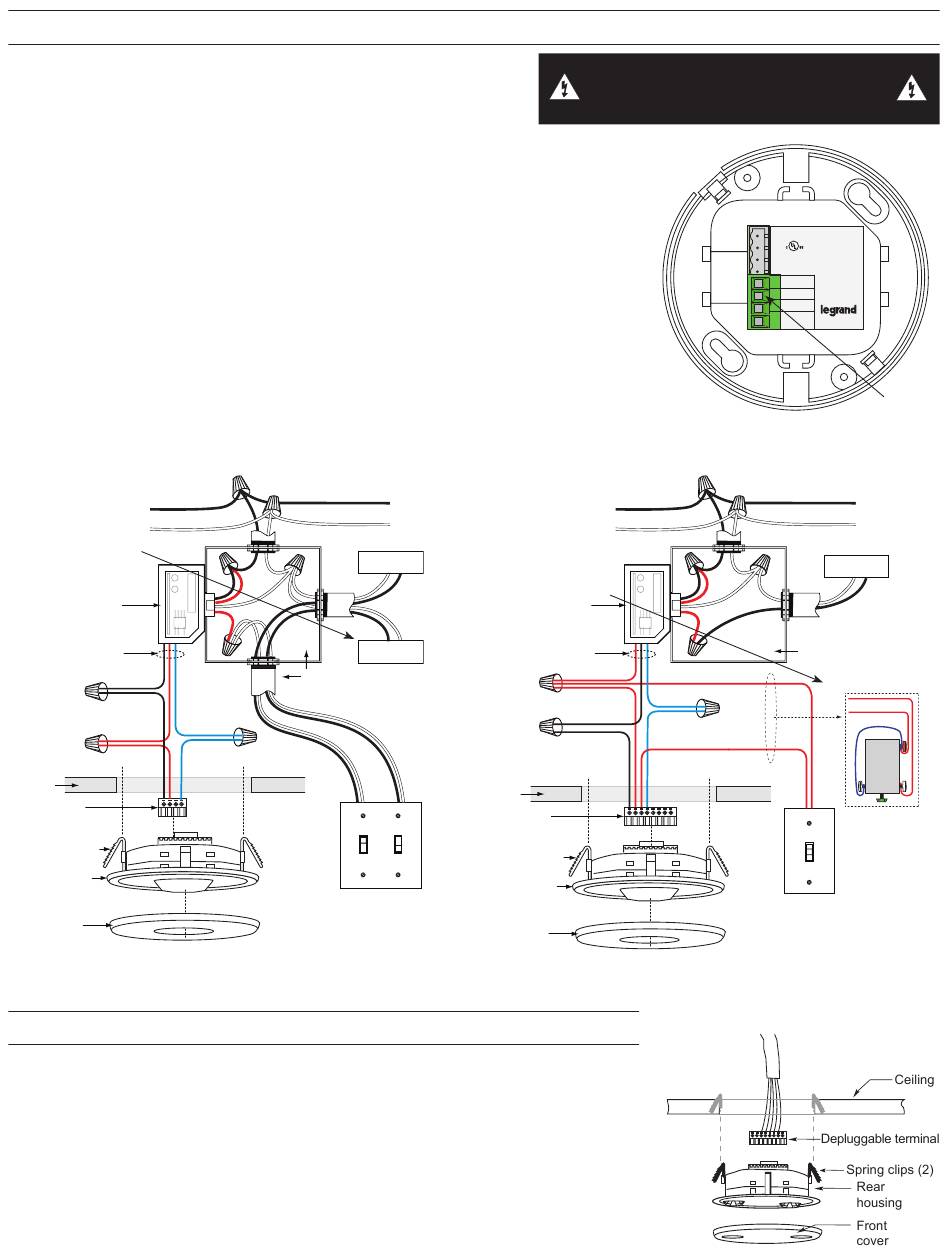

Refer to the wiring diagram for the following procedures:
Connect the low voltage:
• RED wire (+24VDC) from power pack to the +24V terminal on the sensor.
• BLACK wire (Return) from power pack to Common terminal on the sensor.
• BLUE wire from power pack to Control Out terminal on sensor.
To add a manual switch such as the LVS-1 Momentary Toggle Switch, or
RS2-3 Low Voltage Momentary Switch to the above applications–connect:
• Wire from one side of switch to +24 terminal on sensor.
• Wire from other side of switch to Man Switch terminal on sensor.
Care should be taken to separate high voltage power from low voltage (Class 2)
control wiring.
All connections to sensor are low voltage, Class 2.
Standard wiring with local off switch
Line
Neutral
Power Pack
Low Voltage
Class 2
Black
Common
Red
Control Out
+24V
Ceiling
Depluggable
Terminal
Spring Clips (2)
Rear Housing
Front Cover
CI-305
Standard wiring with local off switch
MOUNTING THE SENSOR DIRECTLY TO CEILING
1. Attach the plastic spring clips to the edge of the sensor in the slots provided.
2. Cut a 3.5" to 4" round hole in the acoustic ceiling tile at the mounting location.
A 3.5" hole is recommended for a secure fit.
3. Pull the low voltage wire from the power pack to the sensor through the hole.
4. Connect the low voltage wires to the appropriate terminals on the sensor.
5. Push the sensor up through the hole until the Spring Clips hold the sensor
securely in place.
6. Snap the front cover onto the sensor. Using an Octagonal J-Box
7. Pull the low voltage wires from the power pack into the J-Box through the conduit
knockout.
Feed Through
Load #1
Load #2
(Optional)
Line
Voltage
Blue
#1
Line Voltage
Switches
WIRING DIRECTIONS
Manual-On wiring with low voltage momentary switch
Power Pack
Low Voltage
Class 2
Ceiling
Depluggable
Terminal
Spring Clips (2)
#2
Rear Housing
Front Cover
2
WARNING: TURN THE POWER OFF AT THE
CIRCUIT BREAKER BEFORE WIRING.
Line
Neutral
Red
+24V
Blue
Black
Control Out
Common
Man.Switch
CI-305
CI-305
03083r2
v3
Passive Infrared
Occupancy Sensor
LISTED
88T9 +24VDC/VAC
Appliance
Connect to Watt Stopper
Control
Class 2 Power Packs
For Indoor Use Only
Control Out.
U.S.Patents:
5,640,113
Man. Switch Patent Pending
+24V
Common
www.legrand.us.com
800.879.8585
Wiring
terminals
Feed Through
Load
Line Voltage
+24V
Man.Switch
Jumper
Back
of
LVS-1
LVS-1
For low voltage momentary
switch set DIP switch #7 ON
Ceiling Mount
