INSTALLATION

Installation

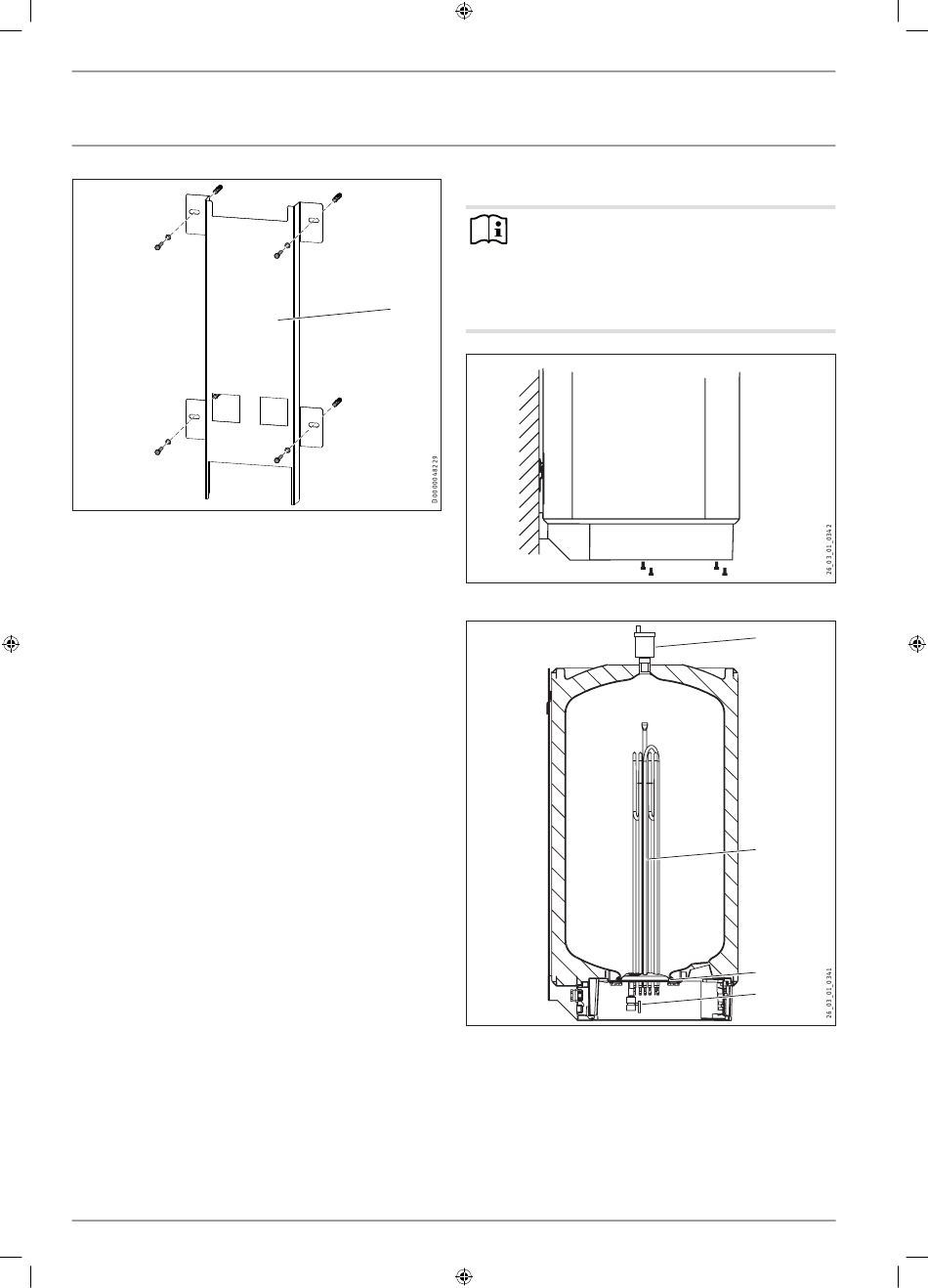

1 Mounting panel
f Drill the holes and secure the wall mounting bracket or f
mounting panel with screws and rawl plugs. Select fixing
materials in accordance with the wall construction/condition.
9.3

Connector with sensor sleeve

f Screw the connector with sensor sleeve for the return f
temperature sensor into the "charging station return opt."
connection (see chapter "Specification / Dimensions and
connections").
9.4

Fitting the quick-action air vent valve

Fit the quick-action air vent valve provided to the "ventilation"
connection (see chapter "Specification / Dimensions and connec-
tions").
10. Installation

10.1 Immersion heater accessory

10.1.1 Standard delivery
- Type plate
- Adhesive fascia
- Fitting PG 11
- Wiring diagram label
- Seal ring
- Safety valve
26 | SBP 100
168843_SBP_100_de_en_fr_cs_pl.indb 26
10.1.2 Fitting the immersion heater
Note
If you would like to retrofit the immersion heater, please
observe the following:
f Drain the cylinder (see chapter "Maintenance / f
Draining the appliance")
f Release the pipe fittings and remove the appliance f
1
from the wall.
f Remove the lower cover. f
1 Quick-action air vent valve
2 Booster heater
3 Seal ring
4 Drain valve
f Remove the drain valve. f
f Remove the flange plate. To do this, undo the 10 screws. f
f Fit the immersion heater with the seal ring supplied. f
f Connect the insulating plate. f
1
2
3
4
