Installation Instructions
8. Move the range into its final location. Check that the range is level by placing a
level on the oven bottom.
NOTE: The range must be level for optimum cooking and baking performance.
9. If needed, use a wrench to adjust the height of the leveling legs until the
range is level from side to side and front to back.

STEP 5 - COMPLETE INSTALLATION

1. Reconnect power at the circuit breaker or fuse box.
2. Turn on each element to check that it is heating correctly.
3. Turn on the oven to check that it is heating correctly.
NOTE: When the range has been on for 5 minutes, check for heat. If range is
cold, turn off the range and contact a qualified technician.
4. Check that the indicator lights on the control panel, and the interior oven
lights illuminate correctly.
If the range does not operate correctly, check the following:
•
Household fuse is intact and tight; or circuit breaker has not tripped.
•
Range is plugged into a grounded outlet.
•
Electrical supply is connected.
Contact a qualified electrician to verify the electrical supply.

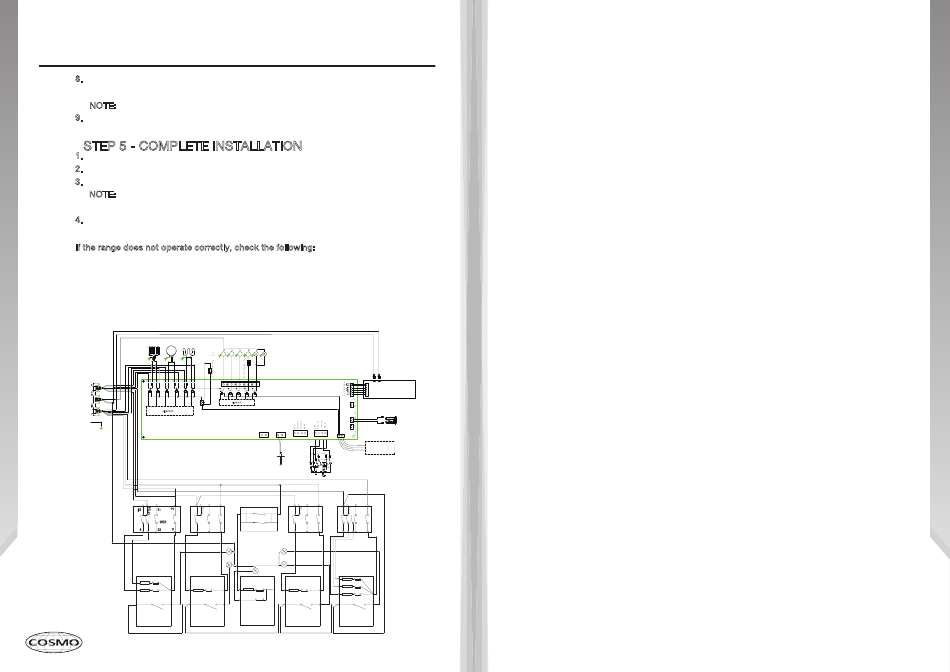

Circuit Diagram
Back g rill Bottom G rill
Top Grill
Low Cyc
High
Cool fan fan Latch
Cool fan
M M M M
1 2 3 4
L1(RED)
N(WHITE)
L2(BLACK)
G(GREEN) PCB BOARD
P2 P1
S1
2a
SCER
1a
4a
4 S2 2
HIL
HIL
4a
2 2 P1
4 4
22
H S H S
SCHE SCHE
Lamp
L N
PCB BOARD
Baffle
GND
A Plug
Probe
GND Probe socket
Probe
B Plug
GND
down sensor up sensor
TO_DISP
Latch_door2 Latch_door1
DISPLAY
P2 P1 P2 P1
S1
S1
1
SCER SCER
2
4 S2 2 4 4b 4a S2 2
HIL
HIL
HIL
4b
4a
2
4
2
4
H S H S
SCHE SCHE
24
CUISINIÈRE ÉLECTRIQUE
AUTOPORTANTE DE 30 PO
COS-305AEC

INSTRUCTIONS D'INSTALLATION

INSTRUCTIONS IMPORTANTES DE SÉGURITÉ
Lire attentivement l'importante information concernant la sécurité l'installation
et l'entretien. Conserver ces instructions pour référence future.
