Helo R20 Manuel D'installation Et D'utilisation page 36

Kuva, bild, Figure, pис 3

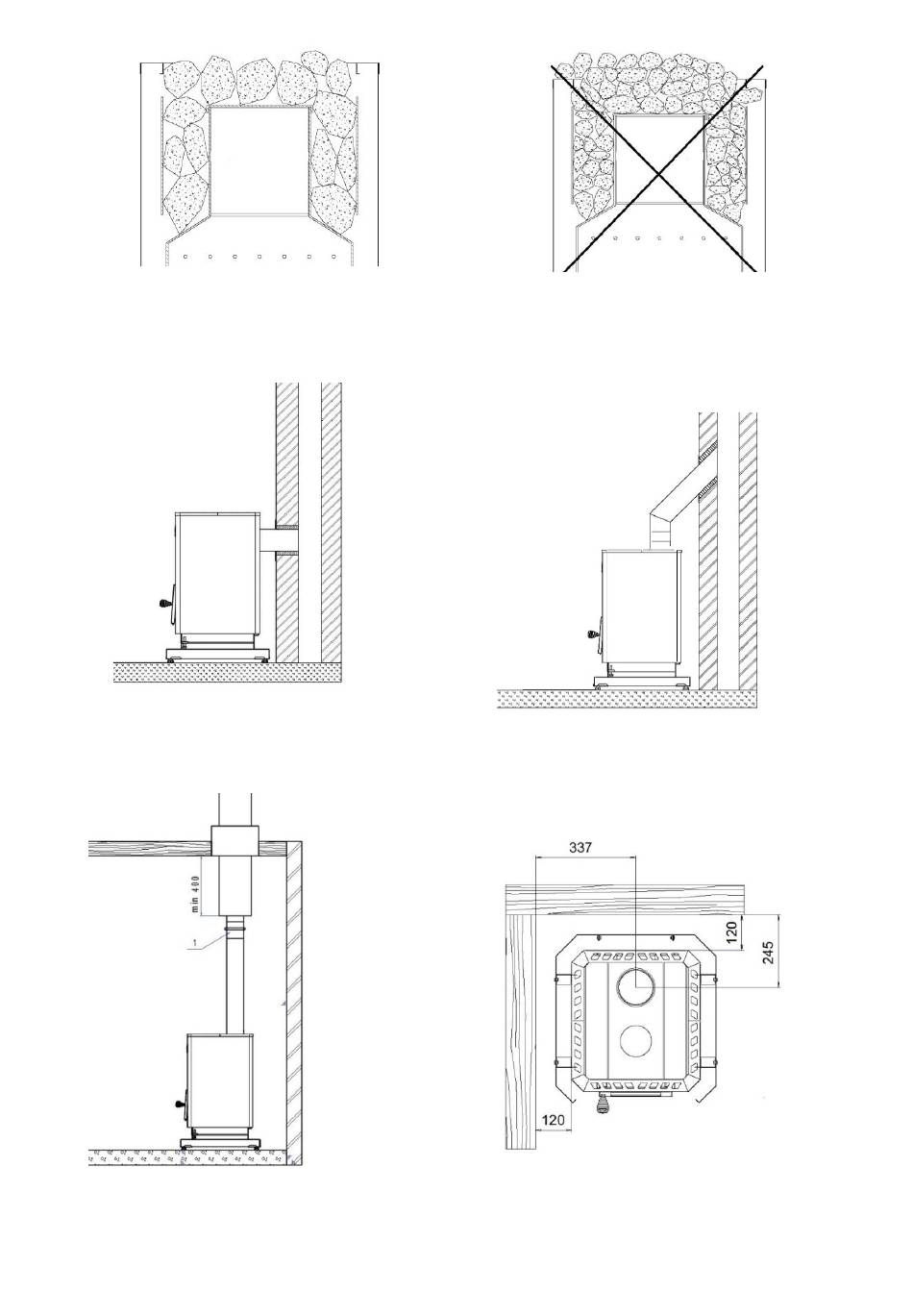

Placing the stones, a cross-section of the heater stone compartment
Place the stones loosely, so there will be enough space between the stones
Figure 4 Figure 5
Heater back connection to a brick flue. Heater top connection to a brick flue.
Figure 6 Figure 7
Connection to a Kastor/Helo ready-made flue. Installation of Helo heater and a Helo protective wall
1. Damper
11
