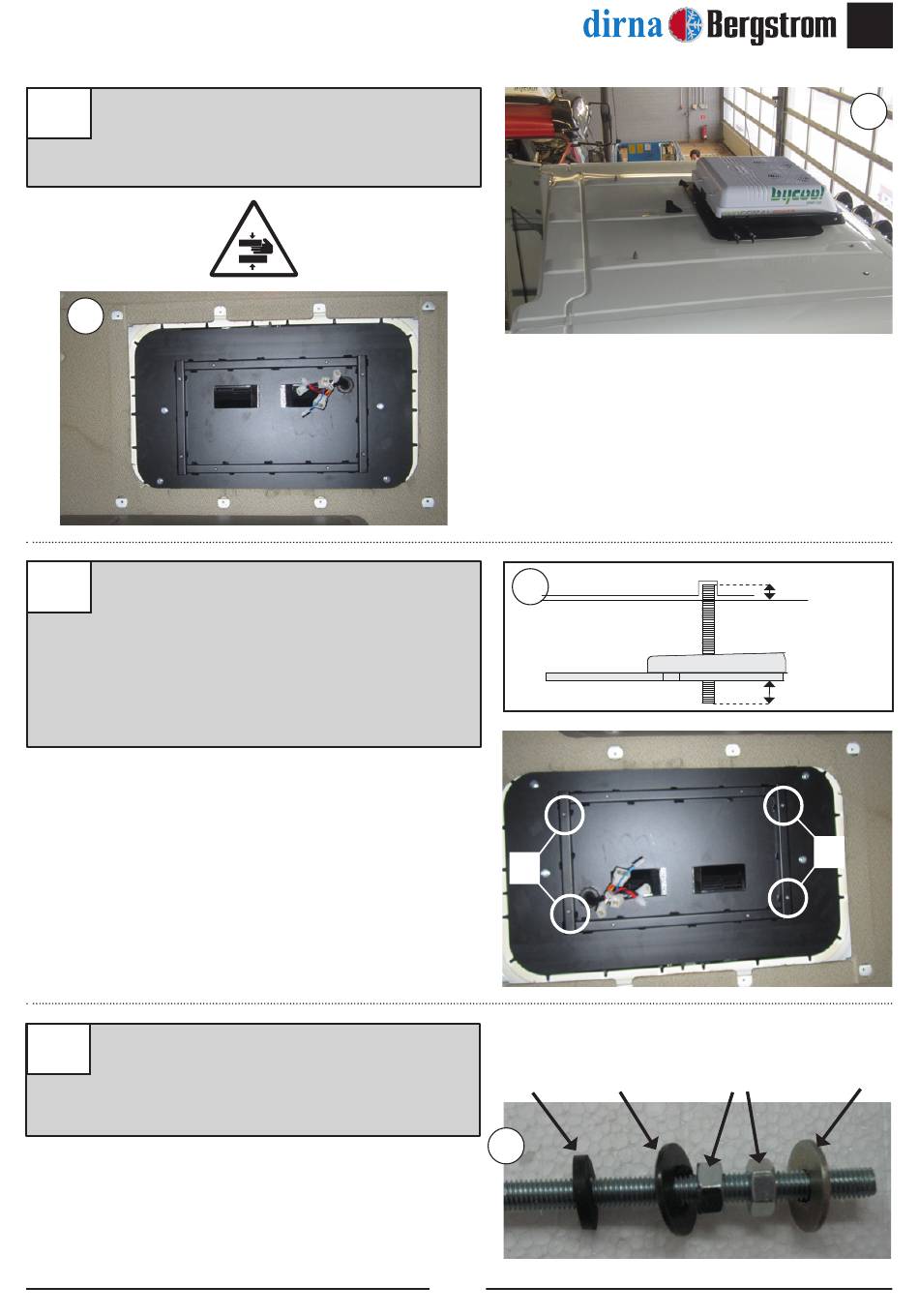

INTEGRAL POWER
CABIN EXTERIOR:
4
Position the Integral Power unit in the hatch
gap.
4
CABIN INTERIOR:
5
Thread about 5 mm (4) studs 8 / 125x100-70
or 120 on the threads of the reinforcements
indicated (*), the measurement will be chosen
after aligning up the clamping brackets and
taking into account that the studs should
protrude through the bottom by about 20 mm.
Position (1) Ø7 rubber washer, (1) Ø8 flat wide-
6
rimmed washer, (2) M8 nut and (1) Ø8 flat wide-
rimmed washer on each of these studs, in the
same order.
5
Base
Stud
*
Ø8 Flat
wide-rimmed
Rubber
washer
washer
6
21
®
5 mm
Support piece
20 mm
*
Ø8 Flat
wide-rimmed
washer
M8 nut
EN
4
