The CGLine+ Web Compact controller is supplied as standard with the fixed IP address
192.168.1.200.
Operation via dhcp (dynamic IP address assignment) is possible but not factory-activated.
Because typical company networks only permit own-assigned IP addresses, we recommend
configuring network settings via direct connection to a PC, e.g. a notebook.
The network configuration can be done directly on the CGLine+ Web Compact con-
troller. The connection to a PC via a patch cable is optional.
The devices must be in the same subnet, meaning the network card of the PC must be set
to 192.168.1.xxx (not equal to 200), e.g. 192.168.1.50 (subnet to 255.255.255.0).
Settings for gateway and DNS must not be taken into account with a direct connection.

3. FIRST START

a
230V/AC

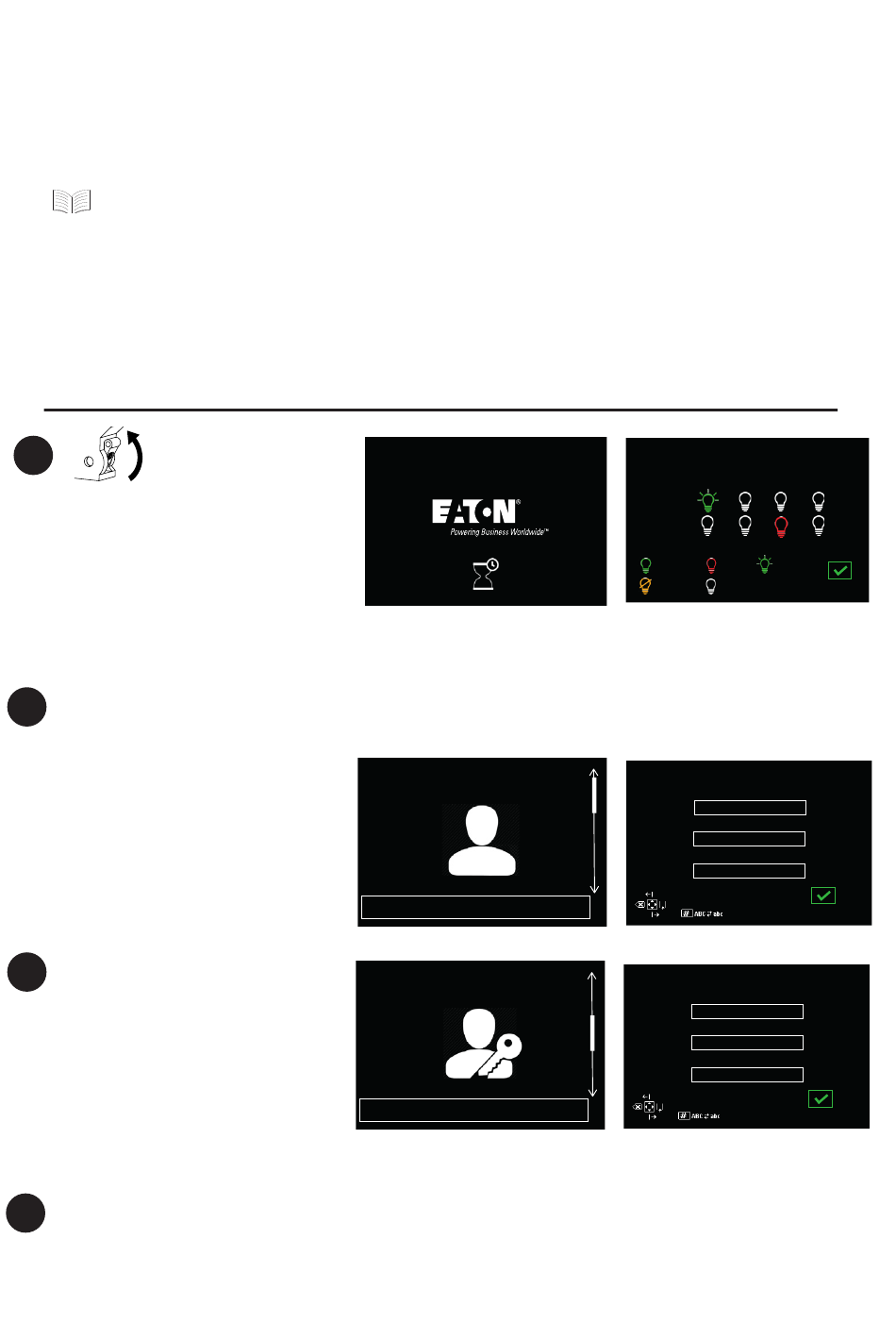

When the CGLine+ Web
Compact Controller starts, a
loading page appears during
3 seconds.
Then, a recap of the entire installation appears on screen. You can detect easily a failure
and identify the line and zone in which the problem is.
b
Passwords for User and Admin must be changed during the first connection. Select
Administrator and enter the password by default "EATON".
Select User for choosing a new
password. Enter the password
by default "GUEST", and enter
a new password (6
characters minimum).
Then validate with Save.
c
Go back to previous display.
Select Admin for choosing a
new password.Enter the pass-
word by default "EATON" and
enter a new password (6
characters minimum).
Then validate with Save.
d
The CGLine Web Compact Controller is now ready to be used !
