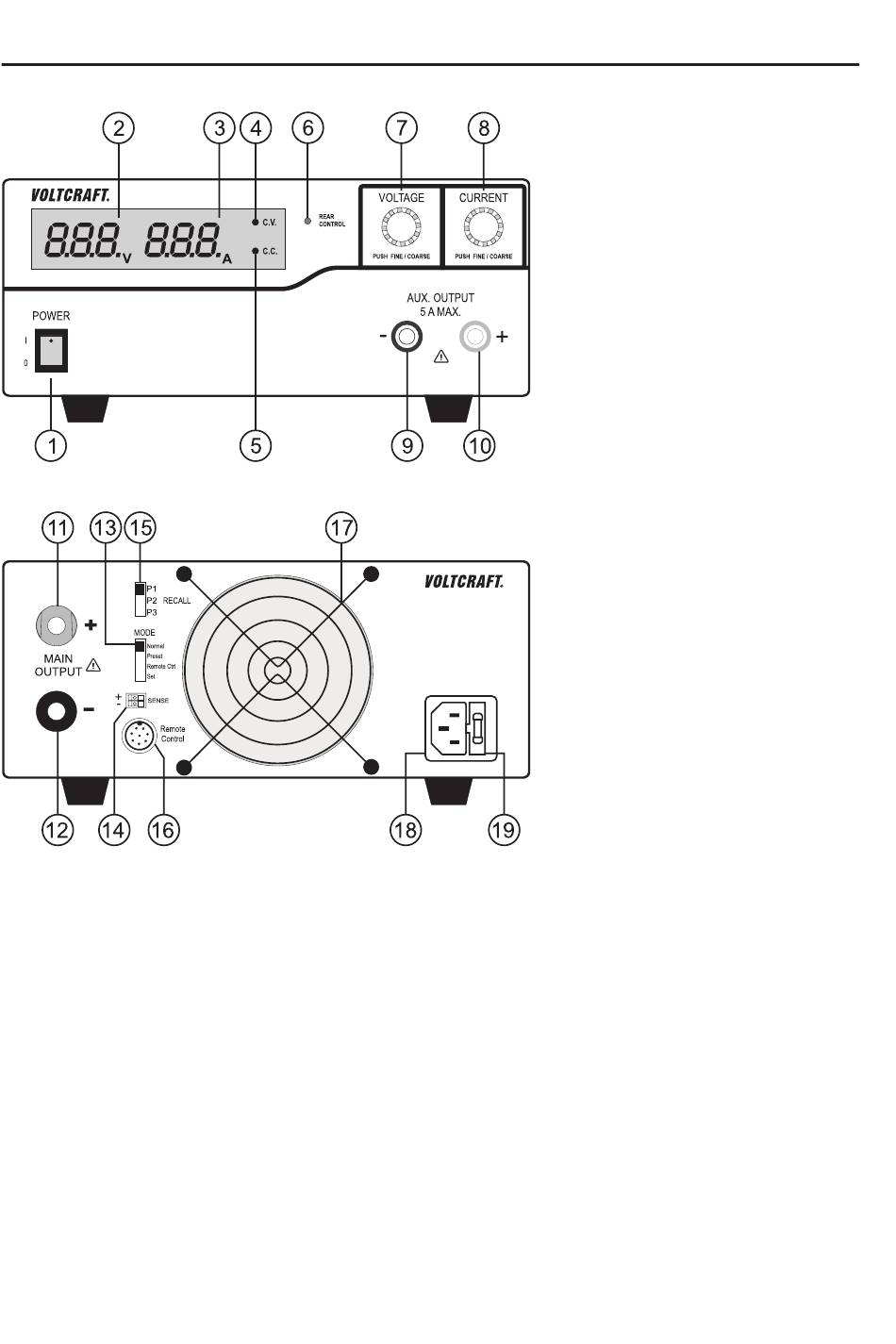

7. Operating elements

1 Power switch for putting the device into operation (I=ON / 0=OFF)
2 Voltage display "V"
3 Current display "A"
4 Status display output "C.V." (constant voltage operation)
5 Status display output "C.C." (current limiter/constant current operation)
6 Status display "REAR CONTROL" shows active remote control or fixed voltage operation
7 Voltage control (with button function for coarse / fine adjustment)
8 Current limiter control (with button function for coarse / fine adjustment)
9 Minus pole connection socket (max. 5 A!)
10 Plus pole connection socket (max. 5A!)
11 Plus pole high-load connection (screw clamp with socket function)
