INSTALLATION

Commissioning

SHC 10 GB Eltron | SHC 15 GB Eltron

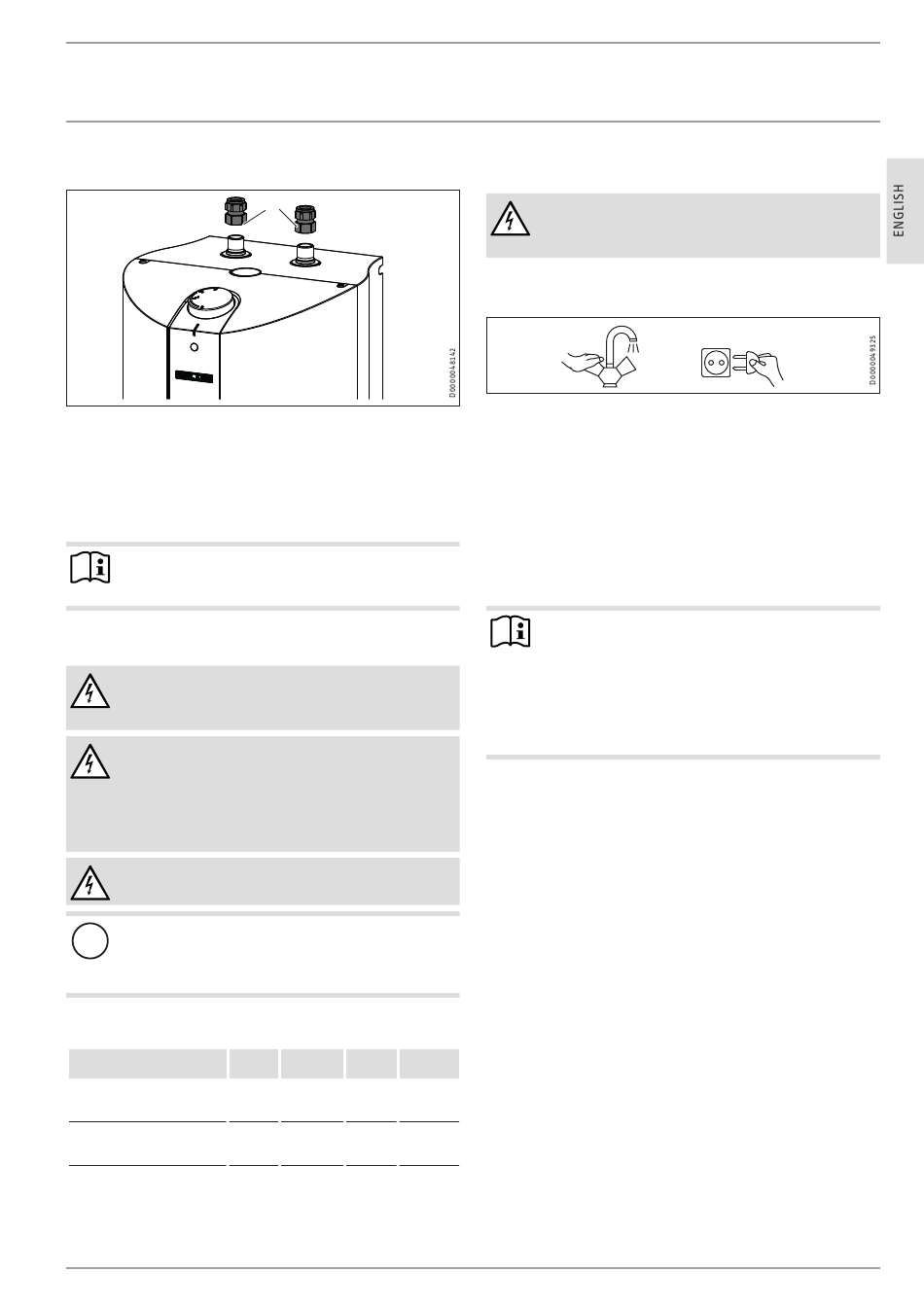

2 Locking ring fittings G 1/2 x 15
f Match up the colour coding on the water connections of the f
tap and the appliance:
- R.h. side blue = "Cold water inlet"
- L.h. side red = "DHW outlet"
f Secure the water connections from the tap to the appliance. f
Note
Ensure that the water connections are not kinked during
installation. Prevent any tensioning during installation.
9.4

Power supply

WARNING ELECTROCUTION
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING ELECTROCUTION
When permanently connected to the power supply using
a dedicated junction box, the appliance must be able to
be isolated from the mains power supply by an isolator
that disconnects all poles with at least 3 mm contact
separation.
WARNING ELECTROCUTION
Ensure that the appliance is earthed.
Material losses
!
The voltage specified on the type plate must match the
mains voltage.
f Observe the type plate. f
The following electrical connections are permissible:
SHC 10 SHC 10 GB
Connection to a freely acces-
sible standard socket with
matching plug
Permanent connection to an
appliance junction box with
earth conductor
www.stiebel-eltron.com
1
SHC 15 SHC 15 GB
Eltron Stiebel Eltron
X - X
X X X
10. Commissioning
WARNING ELECTROCUTION
Commissioning may only be carried out by a qualified
contractor in accordance with safety regulations.

10.1 Initial start-up

1.
f Either open the DHW valve of the tap or set the mono lever f
mixer tap to "hot" until the water that flows out is free of air
bubbles.
f Turn the temperature selector to maximum. f
f Insert the plug into the standard socket or set the fuse/MCB f
in the fuse box.
f Check the function of the appliance. Ensure that the tempera- f
ture controller switches off.
f Check that the safety valve is working correctly. f
f Check the entire hydraulic installation for tightness. f
Note
If you fail to follow the correct sequence (first water, then
power), the high limit safety cut-out will trip.
Proceed as follows:
f Make the high limit safety cut-out operational by f
pressing the reset button (see chapter "Installation /
Troubleshooting / Activating the high limit safety
cut-out").

10.1.1 Appliance handover

f Explain the functions of the appliance to the user. Show the f
user how to operate the appliance.
f Make the user aware of potential dangers, especially the risk f
of scalding.
f Hand over these instructions and, if applicable, the instruc- f
tions for any accessories.

10.2 Recommissioning

See chapter "Installation / Commissioning / Initial start-up".
-
X
2.
SHC 10 | SHC 15 | 7
