Using The Energizer Controller
Energizer Output and Alarms
The energizer output is the default screen display mode. The zone indicator arrow
is highlighting the energizer zone (
this case.
The quickscan bargraph display is also indicating an output voltage of over 7KV.
Voltage Alarm
If the energizer output voltage falls below the alarm level (default 3KV) then the
status LED will flash red and the energizer zone indicator will become highlighted.
Status LED
flashes red
12
Gallagher 3E3446 M5800i/M10000i Energizer User Manual
) and the energizer output voltage is 7.3KV in

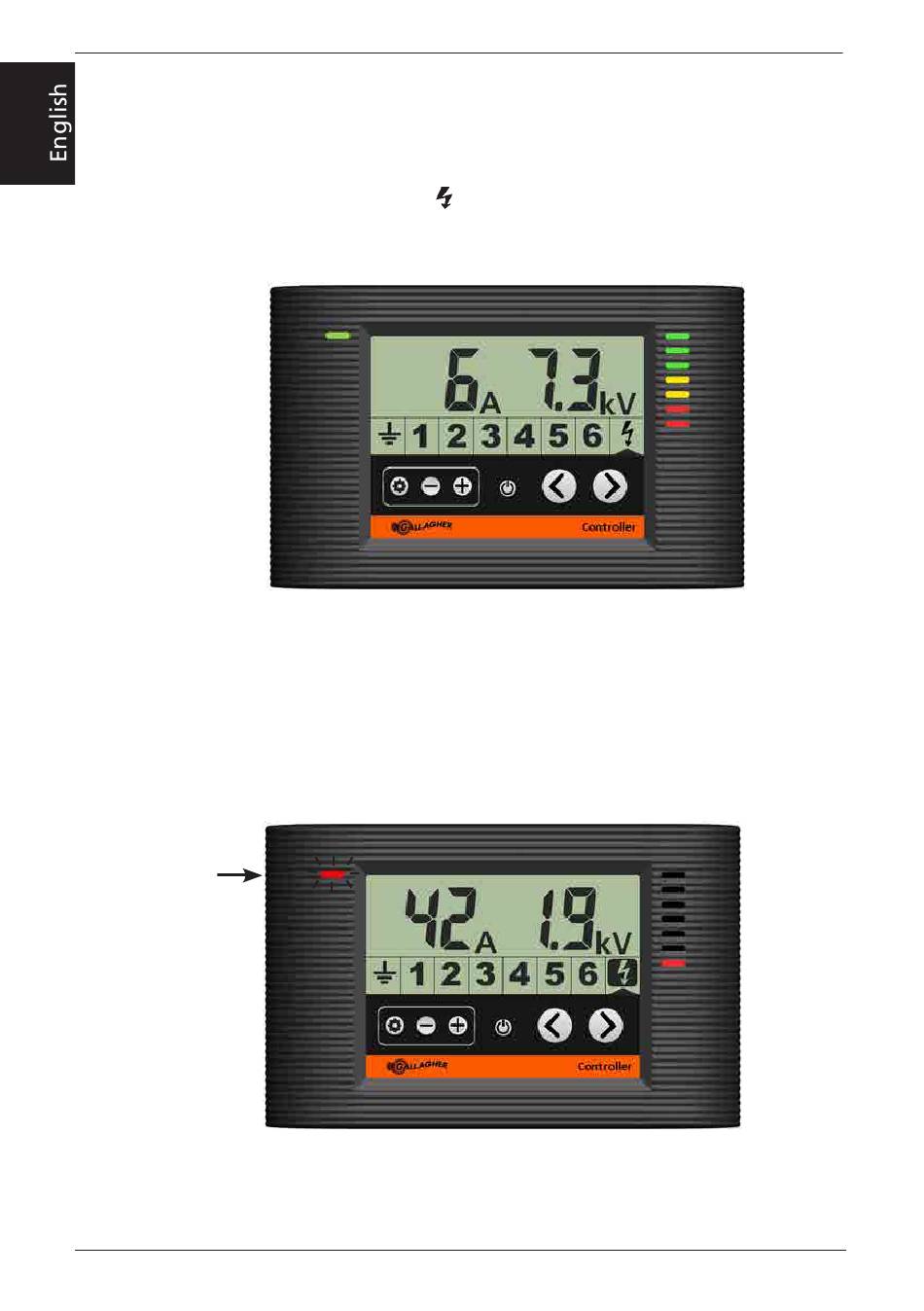

Controller showing the energizer operating normally
Controller showing the energizer in output alarm
