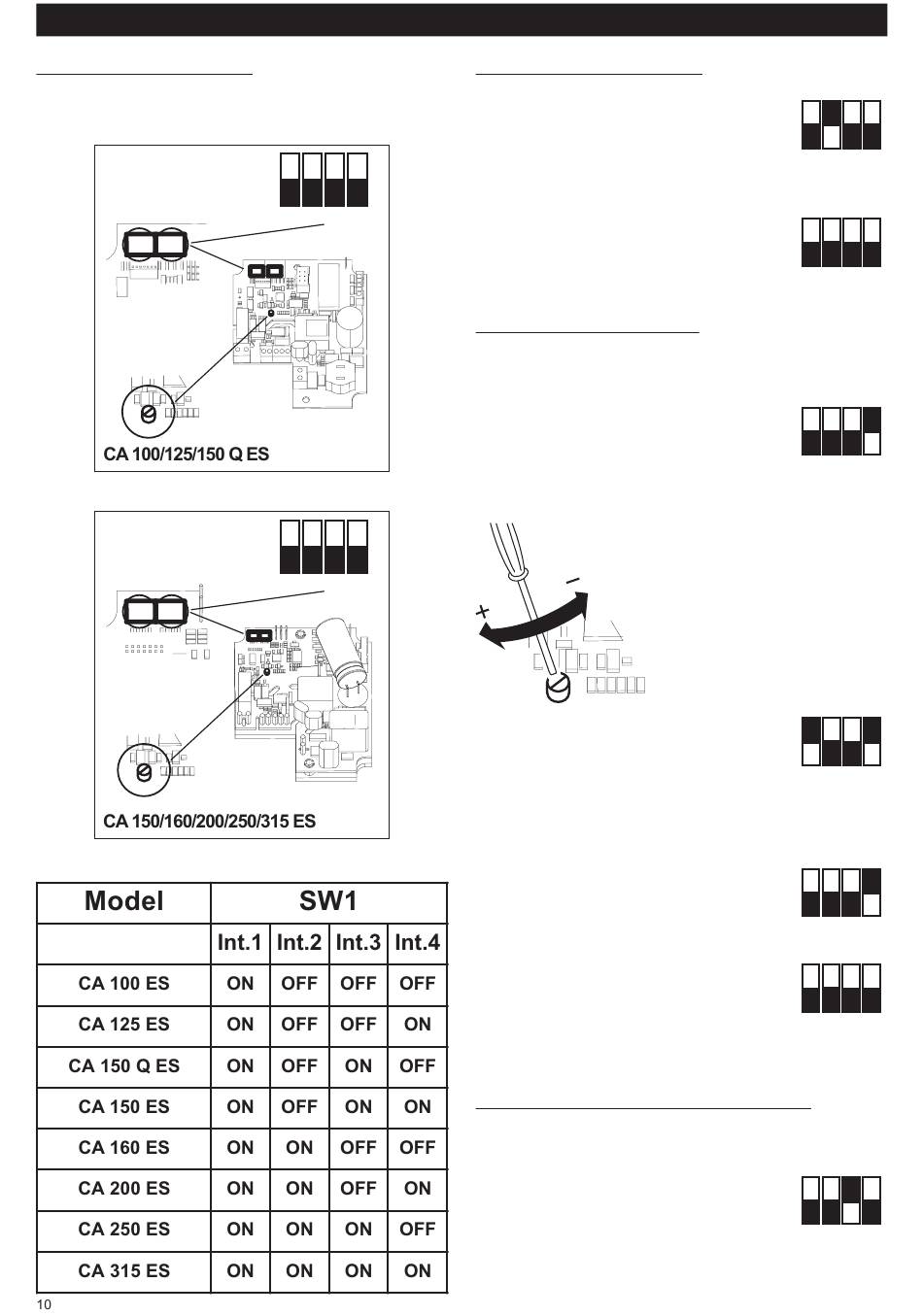

Selecting the product model
The model is selected by setting the dip-switch 1
indicated in the figure as described in the table below.
DIPSWITCH
SW 1 : MODEL
SW 2 : SETUP
2 1
TRIMMER
DIPSWITCH
SW 1 : MODEL
SW 2 : SETUP
2 1
TRIMMER
ON
OFF
1 2 3 4
ON
OFF
1 2 3 4
Selecting the operating mode
Two-speed mode:
cut off the power supply
set the dip-switch SW2 indicated in
the figure:
Int.2=ON; Int.3=OFF
Int.4=OFF
Adjustable speed mode:
cut off the power supply
set the dip-switch SW2 indicated in
the figure:
Int.2=OFF; Int.3=OFF
Int.4=OFF
Setting the V1 and V2 values
The appliance leaves the factory with default nominal
settings V1=V , V2=V
MIN
Values V1 and V2 can be adjusted as follows:
- cut off the power supply
- set the dip-switch SW2 indicated in
the figure:
Int.1=OFF
Int.4=ON
- restore the power supply. The motor automatically
runs at the V1temp speed
- set Int.1=ON. This produces two
effects:
the V1temp value is saved as a
new V1;
the motor automatically runs at V2temp;
- use the trimmer (see figure) to set V2temp to the
desired value, between the saved V1 + 100Rpm and
Vmax;
- set Int.1=OFF. This produces two
effects: the V2temp value is saved
as a new V2;
the motor automatically runs at
V1temp
- cut off the power supply
- set Int.4=OFF to lock the V1 and
V2 values

Restoring nominal values

If necessary, the nominal factory-set values for V1 and
V2 can be restored using the following procedure:
- cut off the power supply
- set the dip-switch SW2 indicated in
the figure:
Int.3=ON
- restore the power supply:
V1 and V2 are automatically restored to the nominal
factory-set values corresponding to the selected
ON
OFF
1 2 3 4
ON
OFF
1 2 3 4
MAX
ON
OFF
1 2 3 4
- use the trimmer (see figure)
to set V1temp to the desired
value, between V1nom and
the saved V2 – 100Rpm
ON
OFF
1 2 3 4
ON
OFF
1 2 3 4
ON
OFF
1 2 3 4
ON
OFF
1 2 3 4
