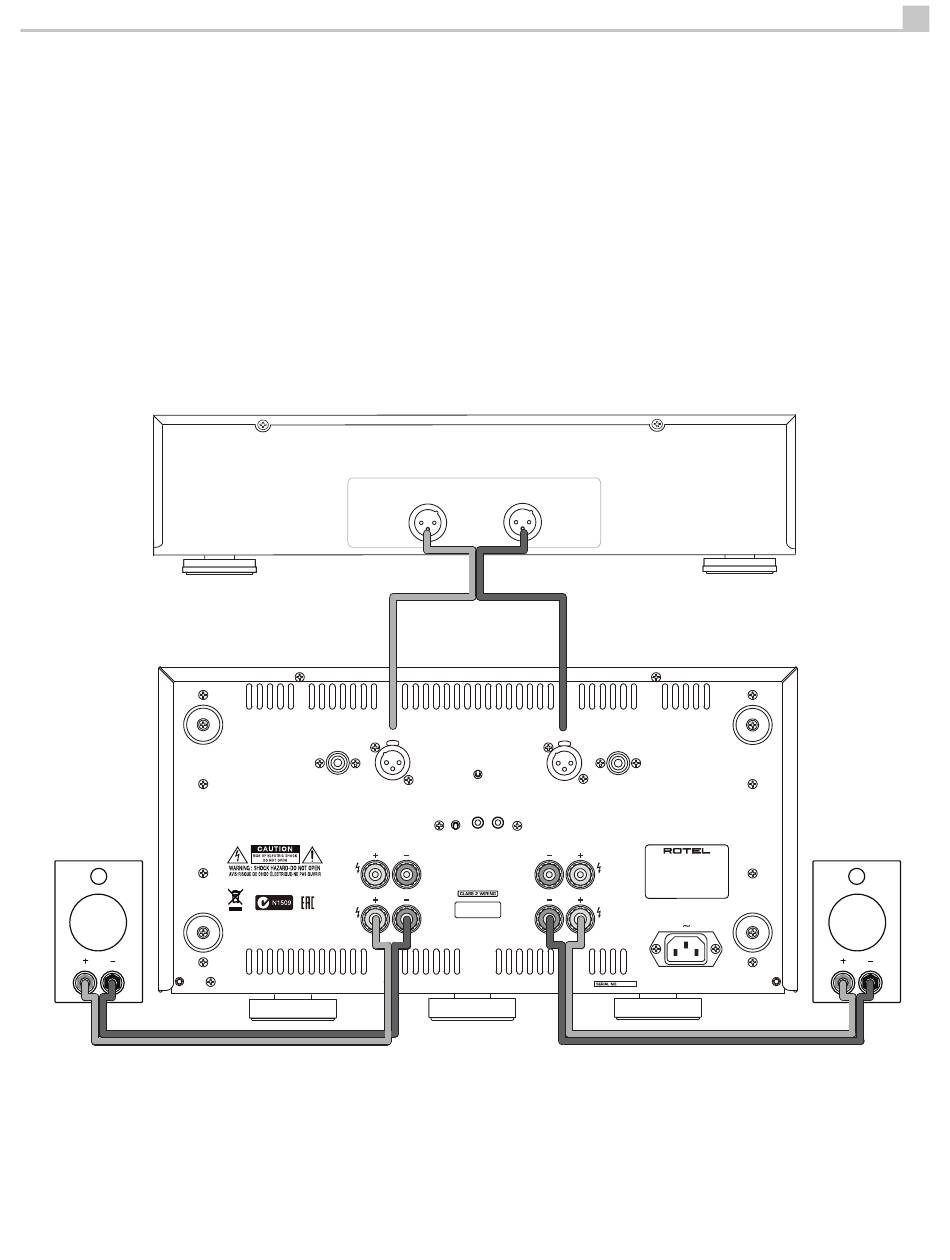

Figure 3: Balanced (XLR) Inputs
Branchements des entrées symétriques (XLR)
Symmetrische(XLR-)Eingänge
Entradas Balanceadas (XLR)
Gebalanceerde ingangen (XLR)
Ingressi analogici bilanciati (XLR)
Balanserade ingångar (XLR)
Балансные (XLR) входы
PREAMP
RB-1590
SPEAKER
ANALOG OUTPUTS
BALANCED RIGHT
RIGHT INPUT
UNBALANCED BALANCED
PUSH
BALANCED
UNBALANCED
12V TRIGGER
ON
OFF IN OUT
RIGHT SPEAKER
SPEAKER IMPEDANCE
COMBINED LOAD
4 OHMS MINIMUM
BALANCED LEFT
LEFT INPUT
BALANCED UNBALANCED
PUSH
LEFT SPEAKER
POWER AMPLIFIER
MODEL NO. : RB -1590
POWER CONSUMPTION : 800W
SPEAKER
RP-553
