PicoScope 6000E Series oscilloscopes
All models
measurement range
1 MΩ input
50 Ω input
Signals exceeding the voltage limits in the table below are defined as "hazardous live" by EN 61010.
PicoScope 6000E Series oscilloscopes must not be used to directly measure hazardous live voltages.
To prevent electric shock, take all necessary safety precautions when working on equipment where hazardous live
voltages may be present.
The following accessories can safely connect to and allow measurement of hazardous live voltages, up to either the
instrument's full-scale measurement voltage multiplied by the applicable attenuation ratio or the accessory's marked
maximum operating voltage, whichever is the lower:
• P2036 and P2056 10:1 passive high-impedance oscilloscope probes
• All Pico Technology-supplied high-voltage active probes
Do not exceed the voltage rating marked on any accessory. If an accessory is not marked with a voltage rating on
either the connector, cable or body, or if a protective finger guard is removed, then do not exceed the EN 61010
"hazardous live" limits above. When connecting one or more accessories and the instrument together, the lowest
voltage rating in the chain applies to the whole chain.
To prevent injury or death, the oscilloscope must not be directly connected to the mains (line power). To measure
mains voltages, use only a differential isolating probe that is specifically CAT rated for mains or high energy use,
such as the TA041 listed on the Pico website.
The maximum voltage marked on a CAT-rated accessory must never be exceeded, regardless of whether or not the
accessory is being used for mains or high-energy measurements.
To prevent injury or death, do not use the product or an accessory if it appears to be damaged in any way, and stop
use immediately if you are concerned by any abnormal operations.

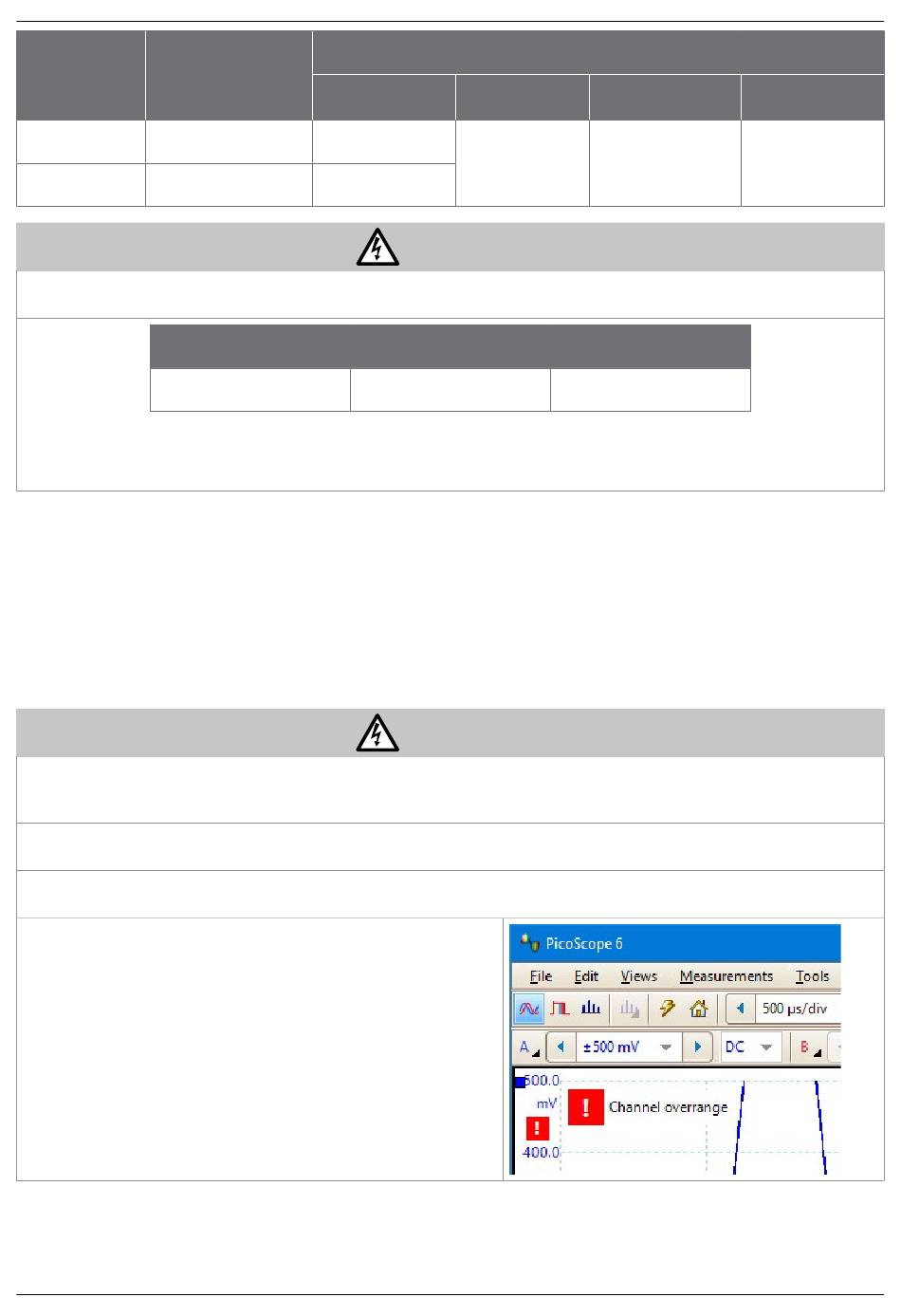

A signal voltage exceeding the current full-scale measurement
range is detected and indicated on the measurement display. A
red warning icon will appear in the upper left corner and next to
the relevant channel's vertical axis.
In these conditions, displayed waveforms and measurements
may be incorrect and the condition may be hazardous. Reduce
input sensitivity to achieve a within-range measurement and
if the condition persists, to prevent injury or death, disable or
otherwise safely disconnect from the source of overvoltage.
4
Full-scale
Input channels
±20 V ±100 V
±5 V 5.5 V RMS
Signal voltage limits of EN 61010-1: 2010
±70 V DC
Copyright © 2020 Pico Technology Ltd. All rights reserved.
Overvoltage protection (DC + AC peak)
Aux trigger
±20 V
WARNING
33 V AC RMS
WARNING
10 MHz reference
Signal generator
clock input
±5 V
±46.7 V pk max.
Quick Start Guide
±20 V
DO338-4
