3.1 Inputs and outputs

For detailed specification information, please refer to the specification table in the PicoScope 6000E Series Data
Sheet.

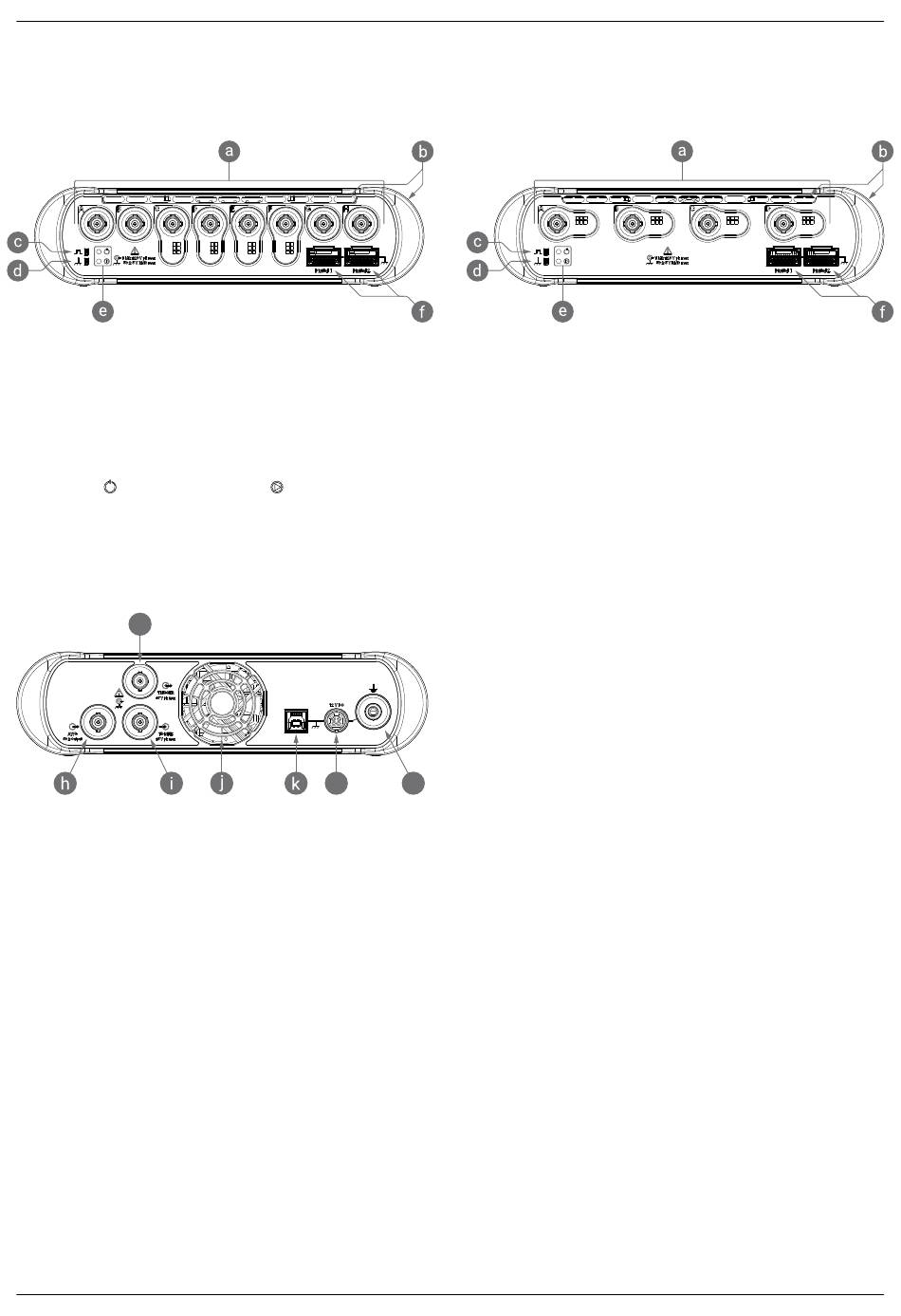

Front panel
a. Oscilloscope analog inputs – BNC(f)
Detects readout pin on 10:1 attenuated probes such as P2036 and P2056.
b. Air vents for cooling fan. Do not block when oscilloscope is in use. Note presence of vents on side of
oscilloscope, in addition to front panel.
c. Probe compensation output. 1 kHz square wave. See probe User's Guide for compensation instructions.
d. Probe compensation ground
e. Power ( ) and status/trigger ( ) LEDs
f. Digital interface ports, compatible with TA369 MSO pods (sold separately). Refer to MSO pod user's guide.
Intelligent probe interface on Channels A to D of PicoScope 6400E models and Channels C to F of PicoScope 6800E
[3]
models.
Rear panel
g
g. AUX trigger I/O. Allows you to trigger the scope from an external source.
h. Arbitrary waveform generator (AWG) output – BNC(f). Do not apply an external voltage to this output.
i. 10 MHz clock reference input – BNC(f)
j. Air vent for cooling fan. Do not block when oscilloscope is in use.
k. USB 3.0 Type-B socket.
l. 12 V DC input. Use only the power supply provided.
m. Ground terminal. Accepts bare wire or 4 mm (banana) plug.
8
. See maximum input voltage marked on front panel of oscilloscope.
[3]
l m
