Hitachi RB 18DSL Instructions De Sécurité Et Mode D'emploi page 35

1
2
6A
7
8
19

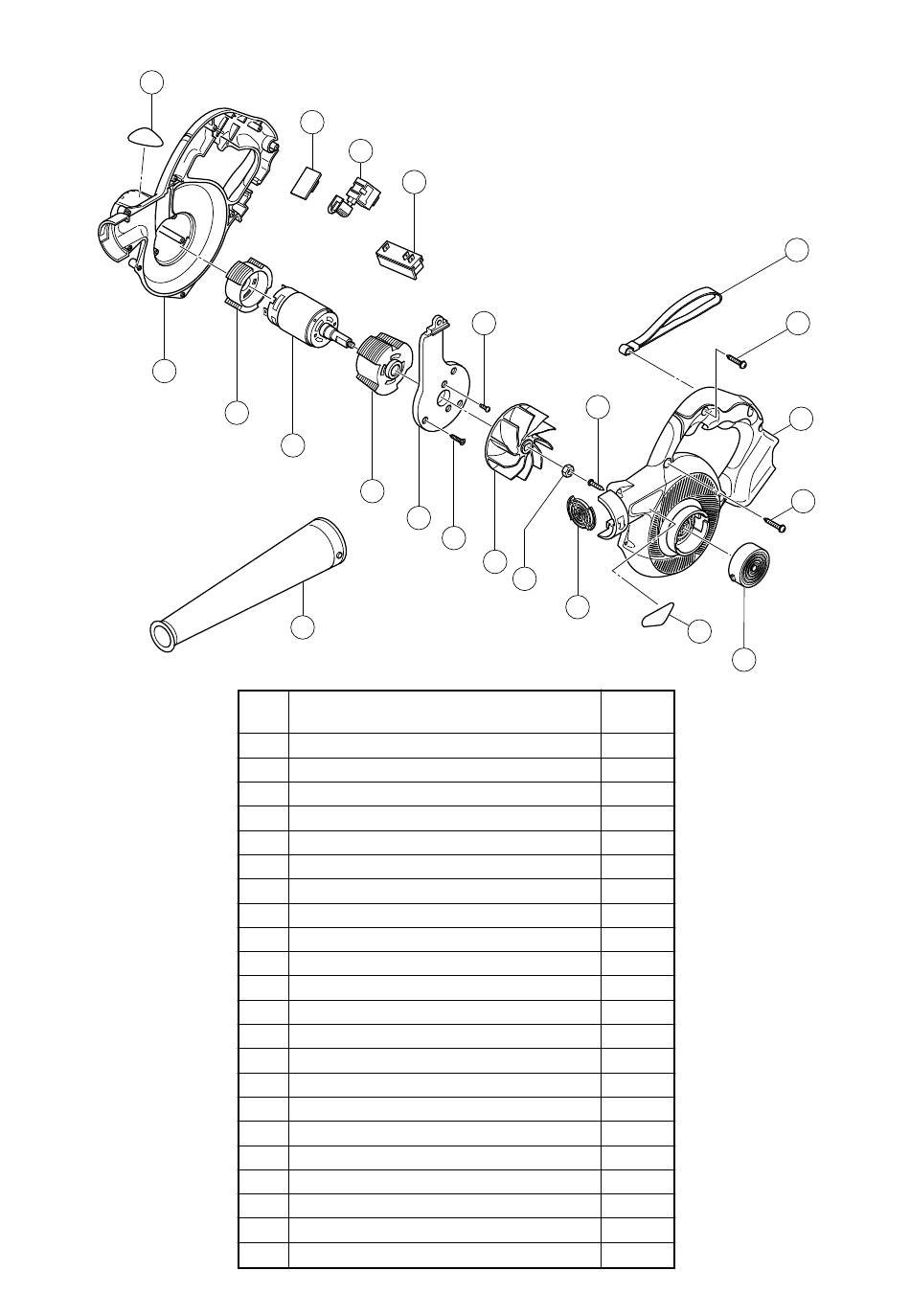

Item
No.
1 NAME PLATE
2 PRINTED CIRCUIT BOARD
3A DC-TRIGGER SWITC-H (W/FELT)
4 BATTERY HOLDER
5 MACHINE SCREW M4 × 10
6A HOUSING (R)
7 MOTOR HOLDER (B)
8 MOTOR (W/SPINDLE)
9 MOTOR HOLDER (A)
10 MOTOR PLATE
11 TAPPING SCREW D3.5 × 15
12 FAN
13 NUT M6
14 STRAP
15 TAPPING SCREW D3.5 × 15
16A HOUSING (L)
17 TAPPING SCREW D3.5 × 20
18 HITACHI LABEL
19 NOZZLE
22 FILTER
23 TAPPING SCREW D3.5 × 15
24 FILTER (B)
3A
4
5
9
10
11
12
13
Part Name
23
22
18
24
Q'TY
1
1
1
1
2
1
1
1
1
1
3
1
1
1
8
1
1
1
1
1
1
1
14
15
16A
17
35
