Once you clean the walls of the stove, you must be sure that the cleaning outlet is securely closed, since the
proper operation of the stove depends on this cleaning.
5.9. Cleaning of the exhaust circuit of the stove, extractor's collector.
For an optimal cleaning of the extractor's collector, it is recommended to dismantle the extractor itself in
order to have full access to this zone for a better cleaning. Once the extractor is dismantled, clean it with a
dry brush and be careful with the turbine and structure.

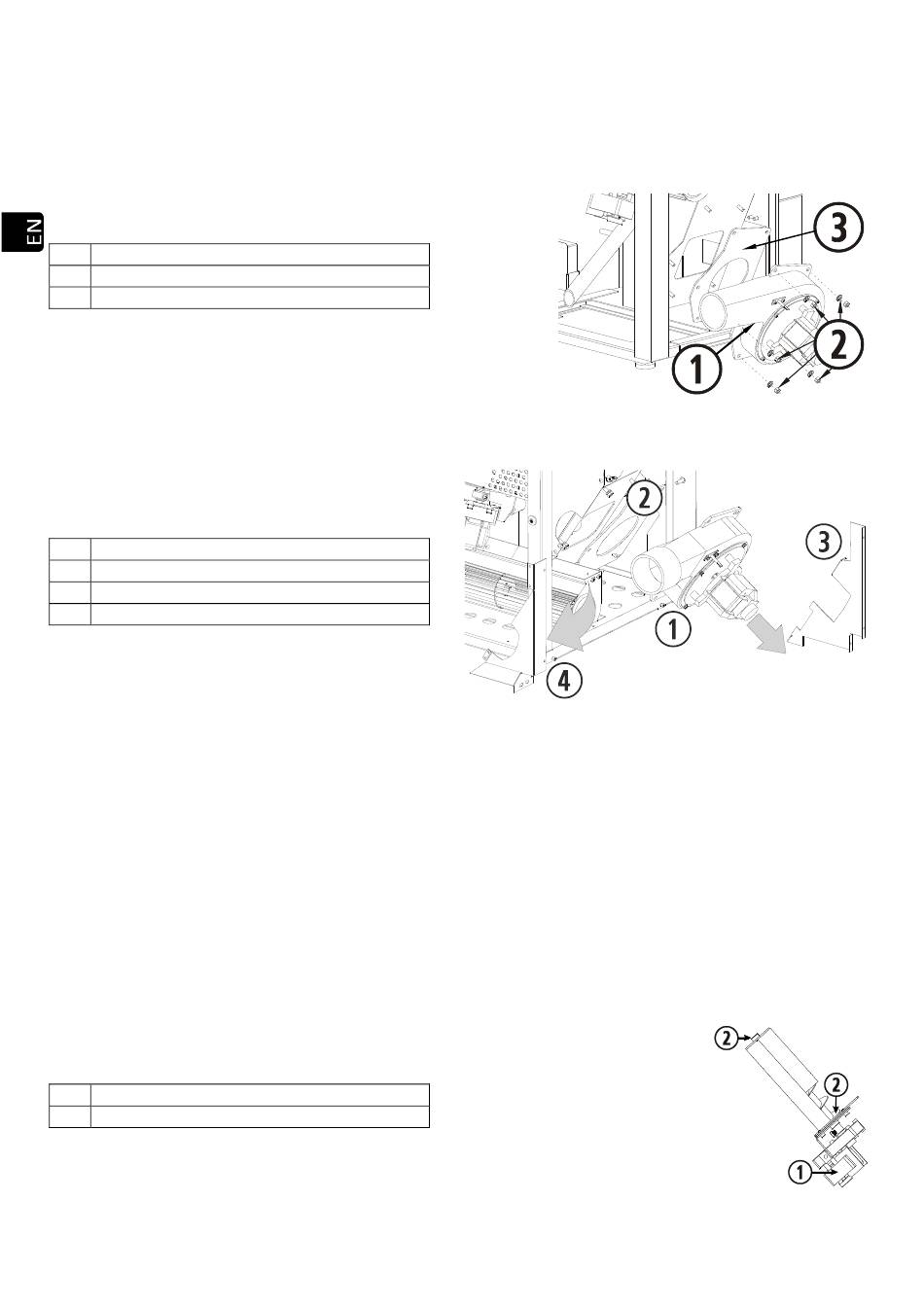

Exhaust circuit extractor.

Nuts and washers (5 units).

Ceramic fiber joint (replace).

In the 5,5kW and 7kW models the convection chamber plates must be removed.
Exhaust circuit extractor.

Ceramic fiber joint (replace).

Back convection chamber plate.

Front convection chamber plate.

When reassembling the exhaust it is COMPULSORY to replace the exhaust joint with a new one as you run
the risk of gas entering in our home.
5.10. Dismantling and Cleaning of gas outlet pipes.
When mounting the gas outlet pipeline, make sure it is well assembled, preferably sealed with silicone. If the
pipe has sealing joints, you must verify its good condition and replace it if necessary.
5.11. Lubrication of the brass tips of the endless shaft's upper and lower parts with lubricant oil; a small quantity is
enough for all the season. This operation is only recommended in the case of noise.
You get access to the lower tip from inside the hopper, you will see it clearly after removing all pellets.
In order to reach the upper tip, you have to dismantle the endless screw from the back side of the stove; this
shall be necessary only in case of noise as it has been lubricated at manufacturing, with a high quality
lubricant sufficient for many years.
Reducing motor of endless.

Brass fitting and lubrication point.

