Prepare The Installation Of The Charger; Fit The Upper Screw - Ingeteam NEO Pro Manuel D'installation Et Usage

Ingeteam
NEO Pro (single-phase)
25 cm
Connection tube
5.5 cm

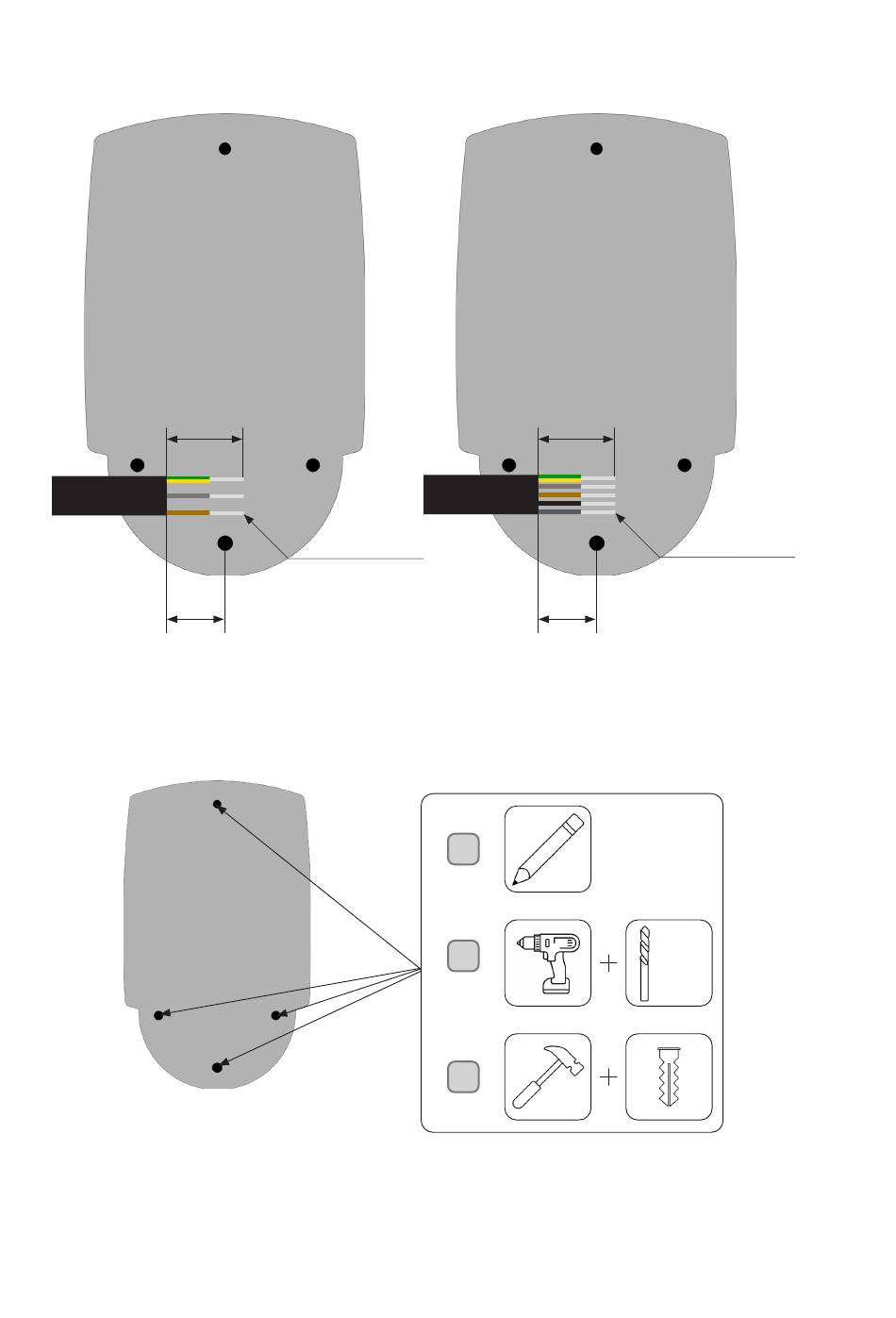

3.1.6. Prepare the installation of the charger

1. Mark the holes to be made.
2. Drill the holes.
3. Fit the wall plugs.

3.1.7. Fit the upper screw

Fit the screw of the upper part and tighten it until it stops on the bushing.
12
Connection tube
20 mm hollow
crimp ferrule
1
2
3
ABV2012IQM01_ - Installation and Operation Manual
NEO Pro (three-phase)
25 cm
5.5 cm
8 mm
Installation
20 mm hollow
crimp ferrule
