4. Plug the power cable into a sufficiently fused socket.
5. Press the on/off switch (8).
ð The switch lights up in green.
6. Set the pump controller (14) to 8 o'clock position.
ð The heating-up phase (9) indicator lights up in red.
ð The heating-up phase of the device starts.
7. Wait for approx. 7 minutes until the heating-up phase is
completed.
ð The heating ready (10) indicator is illuminated in green,
showing that the device is ready for operation.
8. Turn the turbine controller (13) to the left stop (OFF).
ð It must click into place noticeably.
9. Turn the pump controller (14) to the right stop (MAX).
ð The fluid pump now operates at full power for a few
seconds.
ð The capillary tube system is completely filled with fluid
and fog starts emerging from the connection of the fog
transport hose (6).
10. Once fog starts to emerge, turn the turbine controller (13)
and the pump controller (14) to 10 o'clock position.
11. Use the pump controller (14) to adjust the desired amount
of fog.
ð Fog starts being emerging from a position of approx.
9 o'clock and the pump (11) indicator is illuminated in
blue.
12. Gradually rotate the pump controller (14) clockwise until
fog is conveyed constantly (roughly 12 o'clock position).
13. Use the turbine controller (13) to adjust the air volume as
desired.
Info
Keep in mind that the density of the fog depends on
both the set pump capacity and the turbine
performance.
Info
If fog emerges from the ventilation grilles of the device,
the counter-pressure at the outlet nozzle of the device
is too high and the turbine power is set too low! This
causes the formation of condensate in the housing
interior.
In any case, avoid the formation of condensation so
that the device is not damaged by fluid residues.
EN
Operation with flue gas chamber and smoke cartridges
Wear protective gloves
Always wear protective gloves when working with the
device, especially when using the flue gas chamber!
Wear a protective mask
When working with the device in closed rooms and
when using the flue gas chamber always wear
respiratory protection!
Fire simulations as for fire brigade training exercises or the
tightness test of certain measurement environments (e. g.
ducts) often demand the application of coloured smoke. For
these applications please use the TROTEC
combined with the coloured TROTEC
Info
If the coloured smoke is later to be mixed with the fog
generated by the FS 200, the heating must be
preheated and ready for operation.

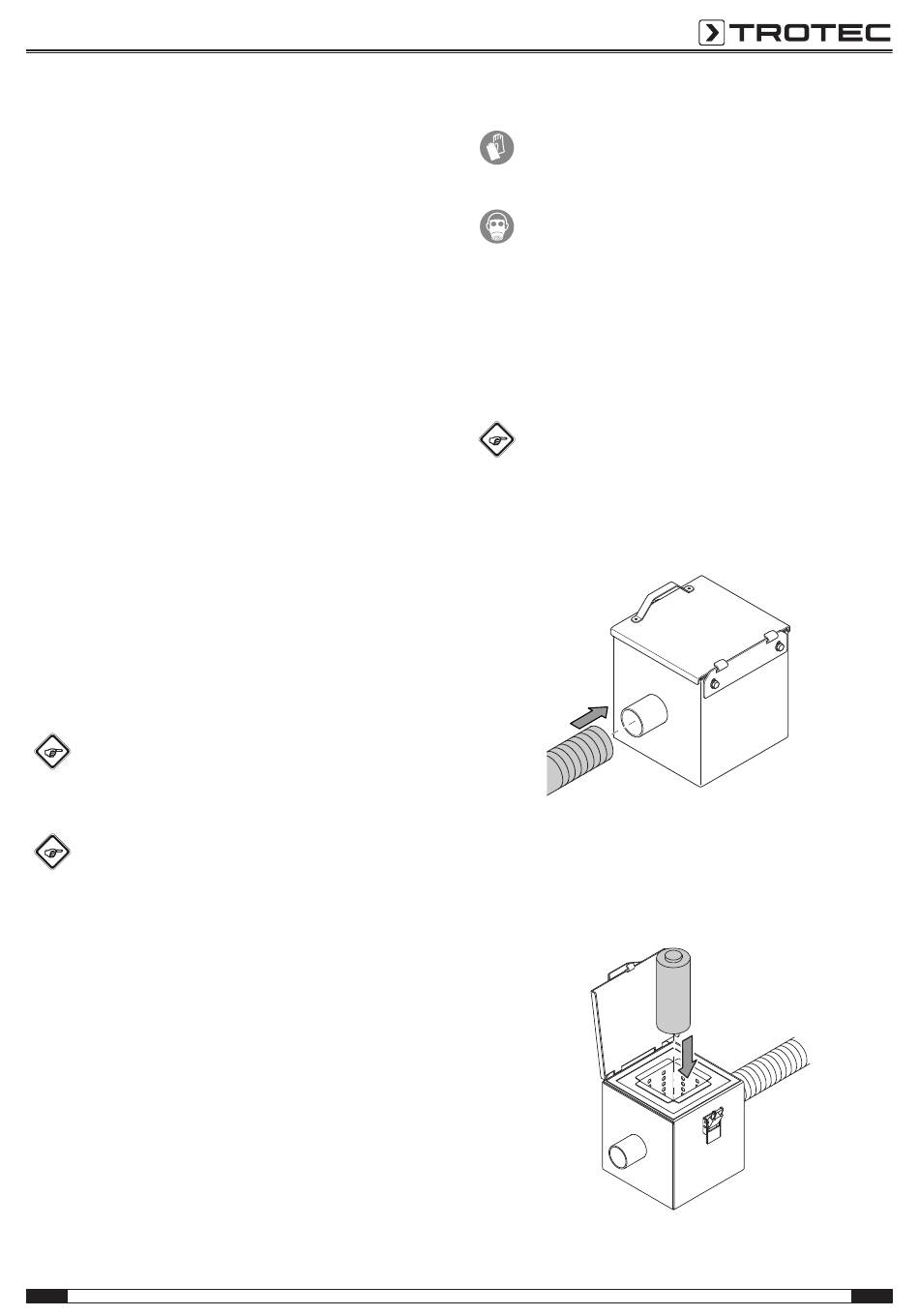

1. Connect the flue gas chamber to the fog transport hose
coming from the FS 200.
2. If required, connect another hose (Ø 38 mm) to the outlet
of the flue gas chamber.
3. Start the turbine of the device at low speed.
4. Open the cover of the flue gas chamber.
5. Put the smoke cartridge into the container.
Fog and flue gas simulator FS 200
®
flue gas chamber
®
smoke cartridges.
