Operation
Positioning
The location for the fog generator has to meet the following
requirements:
• sufficiently dimensioned
• solid, incombustible ground insensitive to heat
• vibration-free
• minimum distance of 2 m to combustible or heat-sensitive
objects
• sufficient supply of fresh air
Information regarding the operation with emergency power
units:
• The applied emergency power generators must be
asynchronous, feature a nominal capacity of min. 4 kVA
(230 V) and be checked for proper functioning.
• Before connecting the fog generator, the emergency power
unit must be brought to operating temperature while
unloaded (depending on the device approx. 1 to 2 min).
Only after this is completed can failure-free operation be
guaranteed.
Information regarding the use of extension cables:
• Ensure a high quality of the cable.
• The cable's cross-section should amount to at least
2.5 mm².
• All extension cables must have been rolled off completely.
Folding holder out
Folding the holder out works just as folding it up, only in reverse
order (see "Folding the holder up").

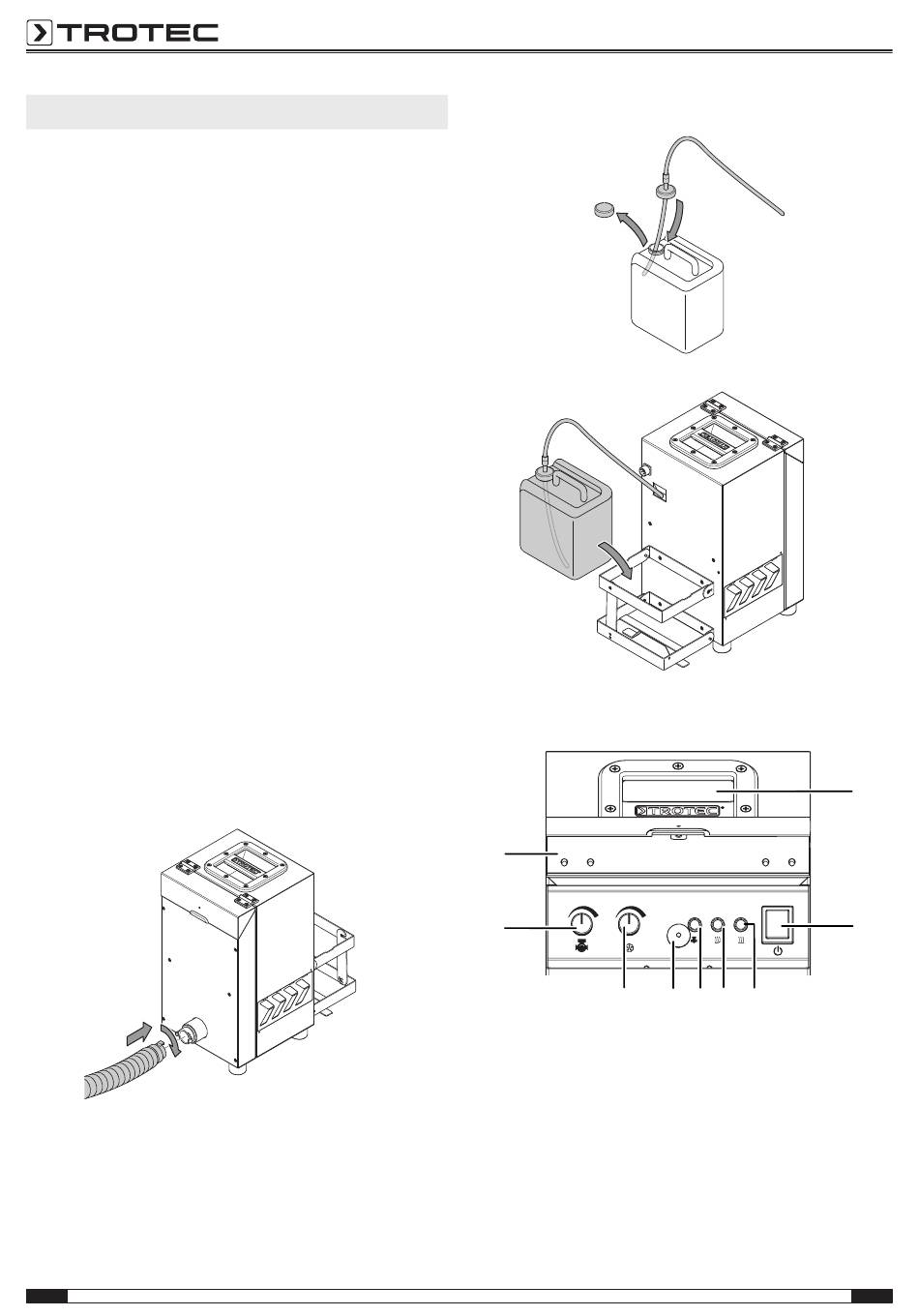

Connecting the fog transport hose
1. Connect one end of the fog transport hose to the
connection coupling at the device.
2. Connect the other end of the fog transport hose with the
object to be tested.
B - 18
Connecting the canister
A.
B.
Switching the device on
15
14
1. Check the canister's filling level and exchange it, if
required (see the "Exchanging the canister" chapter).
2. Unscrew the sealing cap on the canister by a half-turn to
avoid the creation of a vacuum.
3. Check that the connection hose is correctly connected to
the connection at the canister lid.
ð The hose connection must be fully engaged in the lid's
connection! If not properly connected, air will be sucked
into the system, which can lead to a malfunction or
even defect of the fluid pump.
Fog and flue gas simulator FS 200
13
12 11 10 9
1
8
