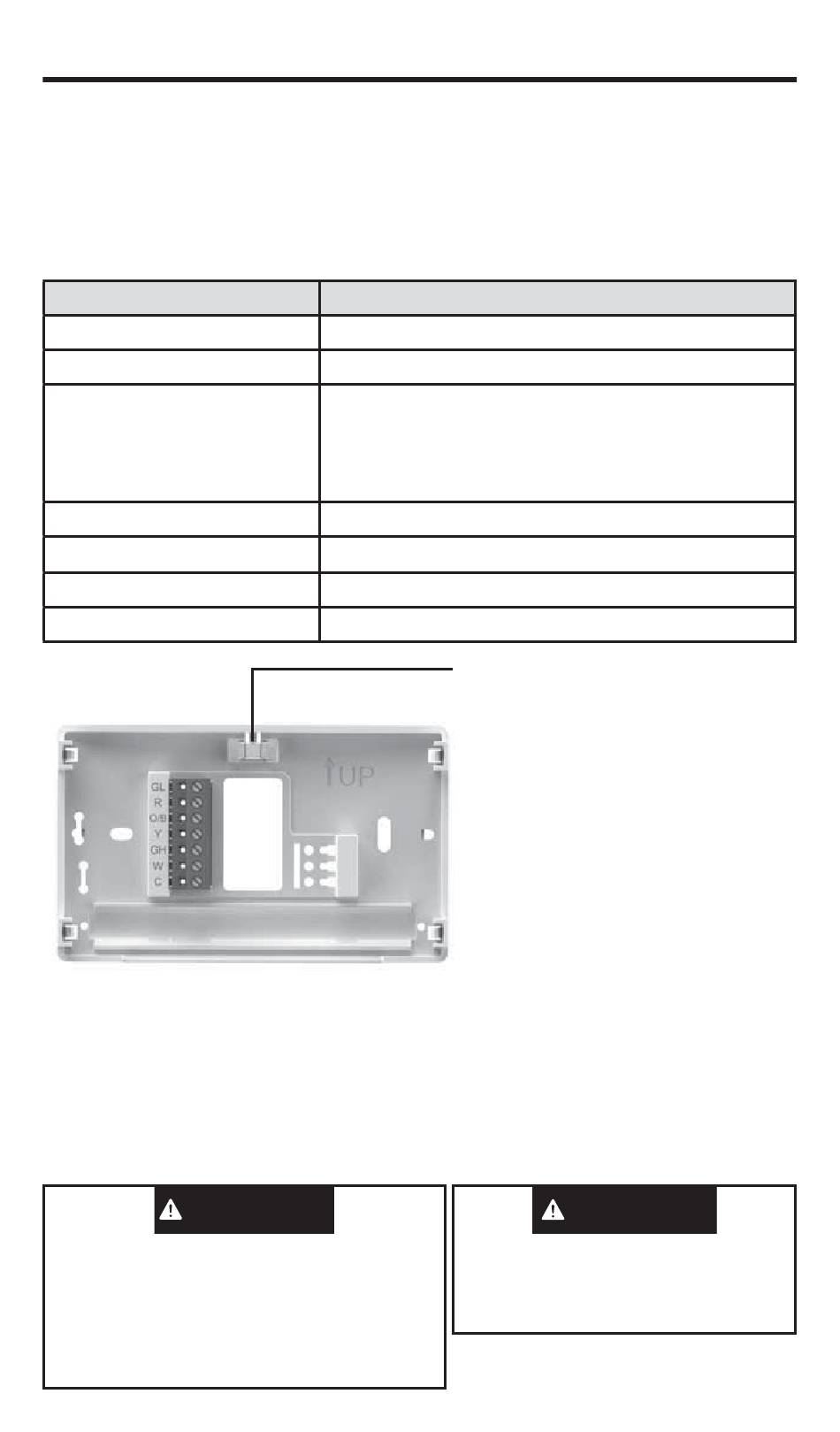

INSTALLATION INSTRUCTIONS

WIRING

Refer to equipment manufacturer's instructions for specific system wiring
information. After wiring, see INSTALLER MENU for proper thermostat
configuration. Wiring table shown are for typical systems and describe the
thermostat terminal functions.
Terminal Designations
GL
R
O/B
Y
GH
W
C
Precautions
• Do not exceed the specification ratings.
• All wiring must conform to local and national electrical codes and
ordinances.
• This control is a precision instrument, and should be handled carefully.
Rough handing or distorting components could cause the control to
malfunction.
WARNING
Do not use on circuits exceeding specified
voltage. Higher voltage will damage control and
could cause shock or fire hazard.
Do not short out terminals on primary control
to test. Short or incorrect wiring will burn out
thermostat and could cause personal injury and/
or property damage.
49-5000770 Rev. 1
Terminal Function
Low Speed Fan Relay
Power (24V)
Changeover Terminal-Energized in Cool (O) or
Heat (B) for Heat Pump
NOTE: All Zoneline applications are B type heat
pump.
Heat and Cool Mode 1st Stage Compressor
High Speed Fan Relay
Heat Mode – 2nd Stage Heat (Electric)
Common wire for 24V
Leveling Thermostat
Leveling is for appearance only and
will not affect thermostat operation.
equipment damage, disconnect electrical
power to system, at main fuse or circuit
breaker box,until installation is complete.
CAUTION
To prevent electrical shock and/or
3
