INSTALLATION INSTRUCTIONS
WIRING (cont)

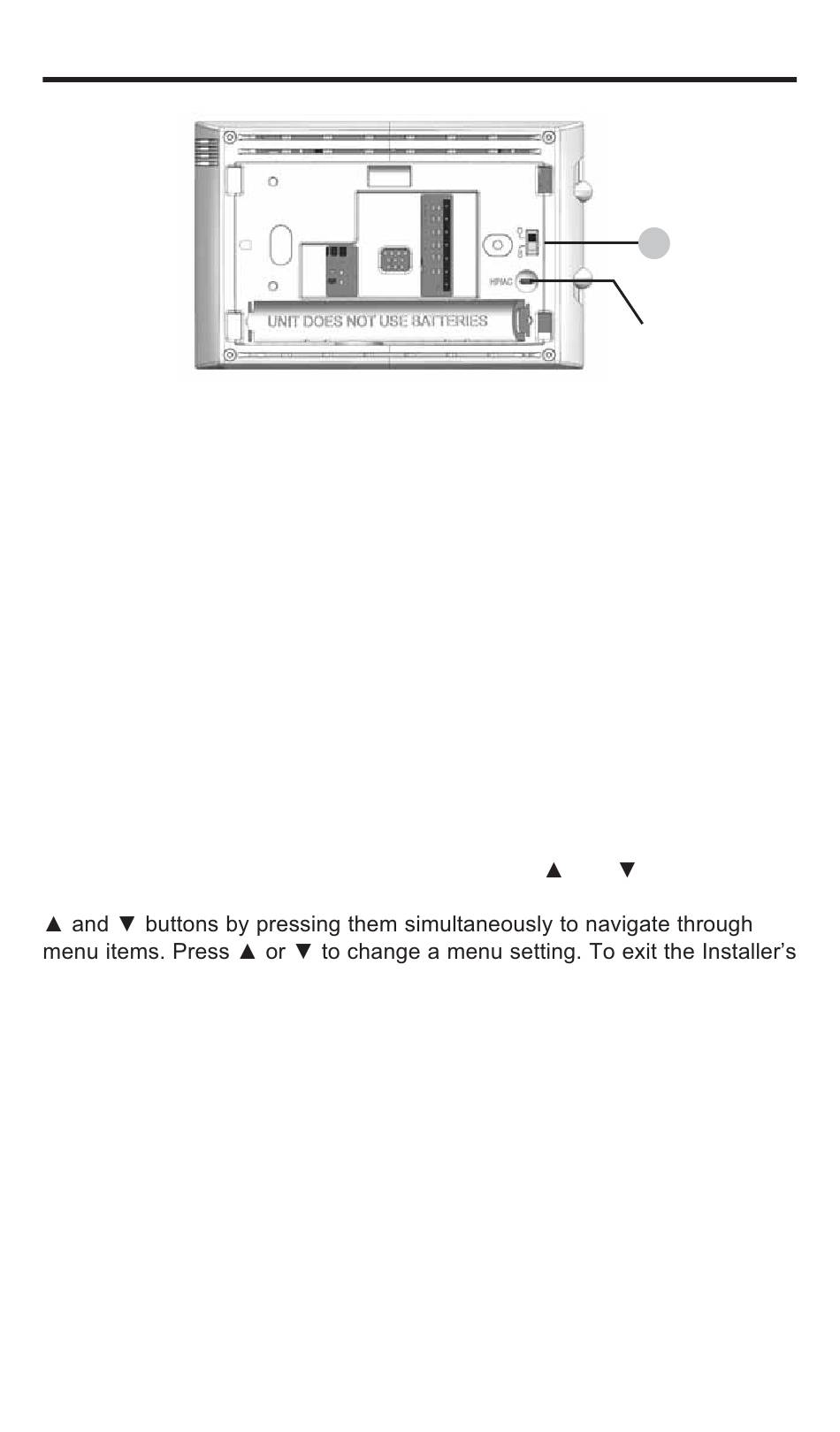

Instructions: To convert the system from PTHP to PTAC, change
menu item #20 from default HP to AC. Additionally, if you are using this
thermostat on a Hotpoint PTAC (non-heat pump), you will need to cut the
jumper wire located on the back of the thermostat.
Note: Menu item #32 will not be displayed in AC mode.
1.) O/B Terminal Switch
The O/B switch on this thermostat is factory set to the B position. This will
accommodate heat pump applications, which require the changeover relay
to be energized in Heat. If the heat pump being installed requires an O
terminal to energize the changeover relay in Cool, the O/B switch must be
moved to the O position.

INSTALLER MENU

To access the INSTALLER'S MENU, set the system switch to the OFF
position and then press and hold the temperature
seconds. The display will show item 20 in the table. Use the temperature
Menu at any time, move the system switch to Heat or Cool.
4
1
Jumper
Wire
and buttons for 3
49-5000769 Rev. 1
