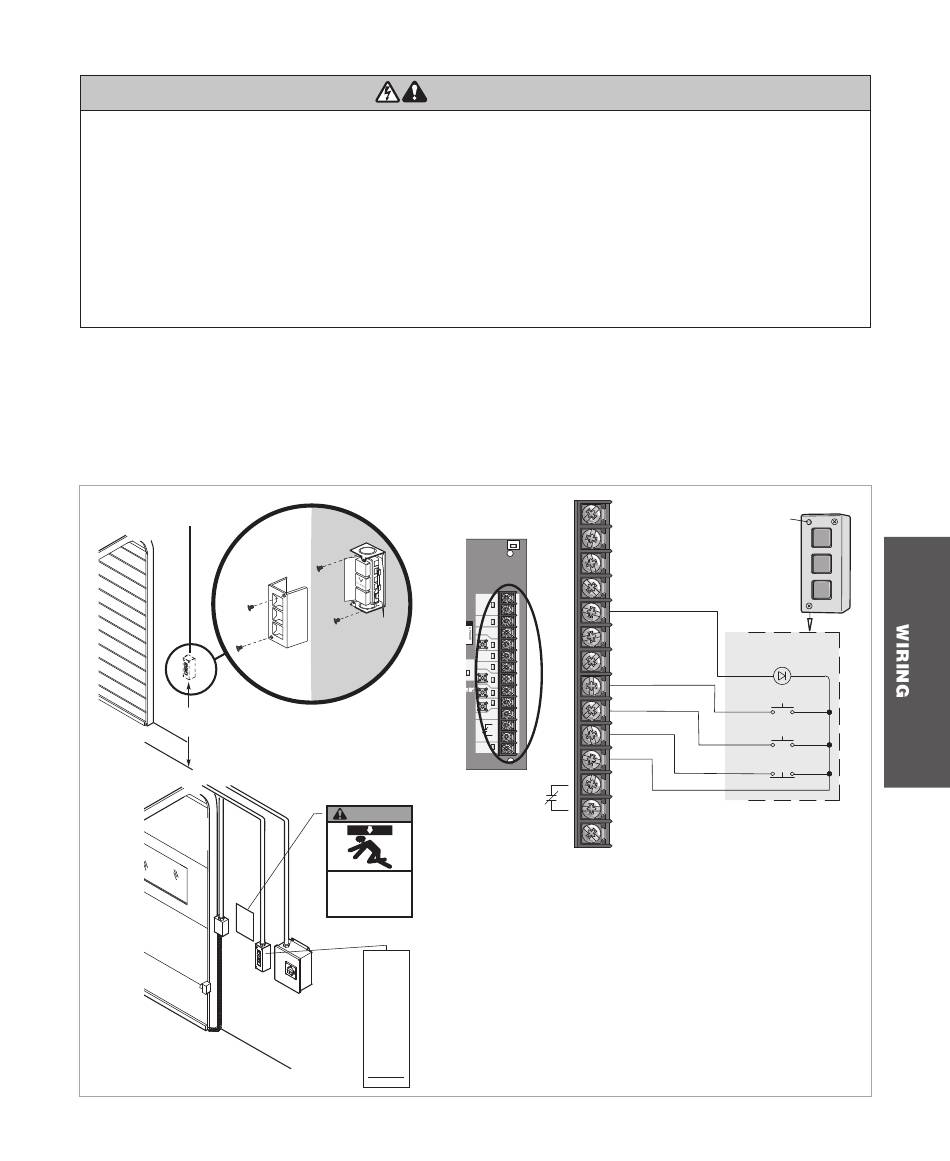

CONTROL STATION

To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is NOT connected BEFORE installing door
control.
To prevent possible SERIOUS INJURY or DEATH from a closing
door:
• Install door control within sight of door, out of reach of
children at a minimum height of 5 feet (1.5 m) and away from
ALL moving parts of door.
• Install the control station far enough from the door to prevent
the user from coming in contact with the door while operating
the controls.
NOTE: The low voltage control circuit wiring requires insulated,
20 AWG or greater wire. Refer to back page for additional control
wiring.
1
Remove the control station cover.
2
Fasten the control station to the wall at least 5 feet above the
ground. The installation surface must be smooth and flat.
Attach the MAS label to the side of the control station.
3
5'
5
WARNING WARNING
1
^
O P
E N
O
S T
O P
2
UL Entrapment Placard
WARNING
Moving Door Can Cause
Serious Injury or Death
Keep Clea ! Doo May Move at any me
W thout io Wa n ng
Do Not et Chi d en Ope a e he Doo o ay
n he Doo A ea
Keep Doo n S ght at a l imes When Doo is Moving
MAS Label
Maintenance
A ert System
f ight is Flashing
Rapidly, t s time
or routine door
maintenance.
f l ght is Flashing
Slowly, o lowed
by a pause, ca l or
immed a e serv ce.
Service every
cycles/months
• Install the entrapment warning placard on wall next to the
control station in a prominent location that is visible from the
door.
• NEVER permit children to operate or play with door control
push buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is properly
adjusted and there are no obstructions to door travel.
• ALWAYS keep door in sight until completely closed. NEVER
permit anyone to cross path of closing door.
3
Select appropriate knockout and run the wires to the
operator.
4
SSEMENT
Connect wires to the control station and replace the control
station cover.
5
Fasten the entrapment warning placard next to the control
station.
4
24VAC
14
24VAC
13
DATA
TIMER
DEFEAT
12
COMMON
11
24VAC
POWE
MAS
24V C
10
T ER
D EAT
C MMON
LMEP
MAS
9
LMEP
MER
EDGE EDGE 8
BLE
OPEN
OPEN
CLOSE
7
T IA
TOP
CLOSE
6
OMMON
STOP
5
SBC
N I
COMMON
4
3
2
SBC
1
19
LED
OPEN
3-Button
CLOSE
Station
STOP
Maintenance
Alert LED
(RD) (WH)
Open
Close
Stop
Wiring
