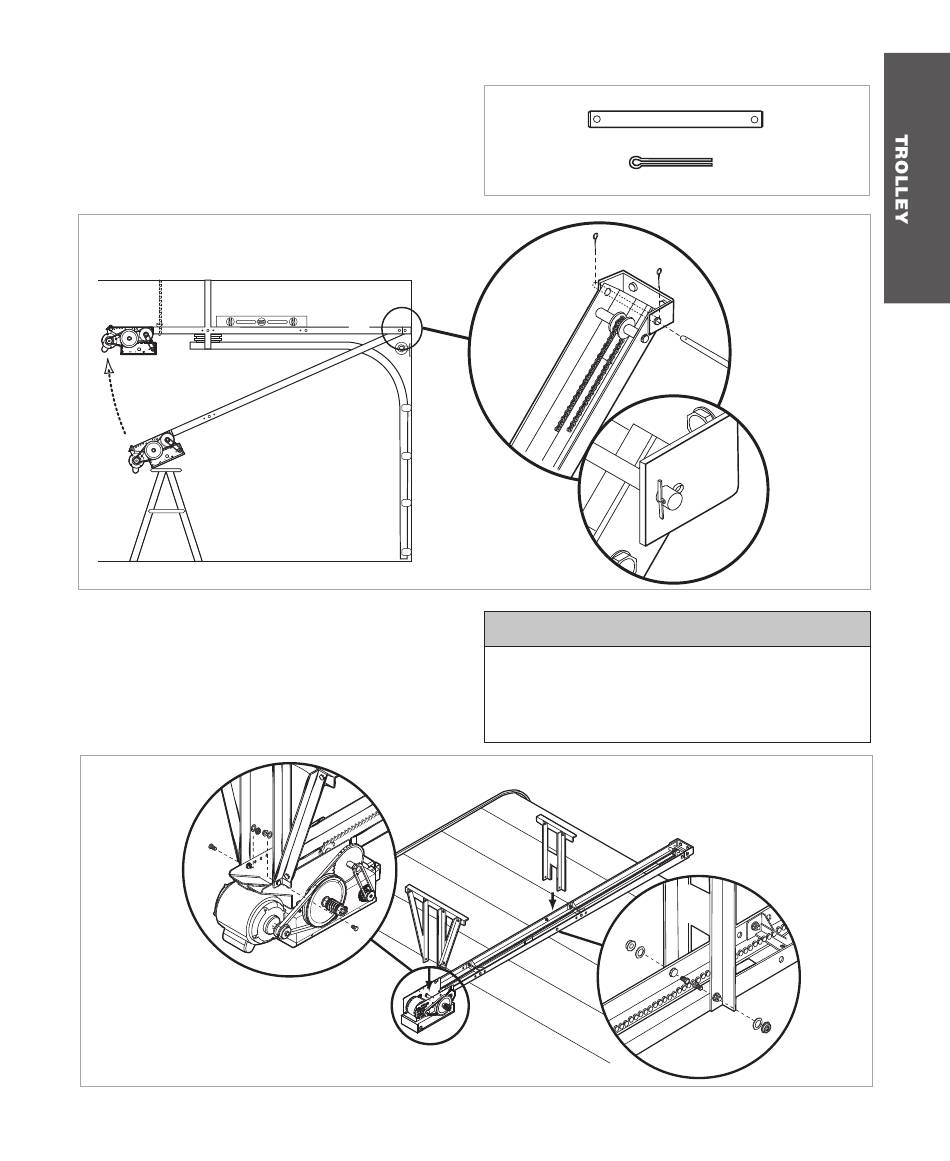

ATTACH THE TRACK TO THE HEADER BRACKET

1
Align the track with the header bracket.
2
Insert the pin through the track and header bracket holes.
Secure with the fasteners.
3
Swing the operator up and ensure the operator is level.
3

HANG THE OPERATOR

1
Secure the operator using the appropriate fasteners and
locking hardware that will support the weight of the operator.
1
2
1
To avoid possible SERIOUS INJURY from a falling operator:
• Fasten the operator SECURELY to structural supports of the
building.
• Concrete anchors MUST be used if installing ANY brackets
into masonry.
11
HARDWARE
Header Pivot Pin (1)
Cotter pins (2)
CAUTION CAUTION
Typical Installation - Trolley
