MAINTENANCE

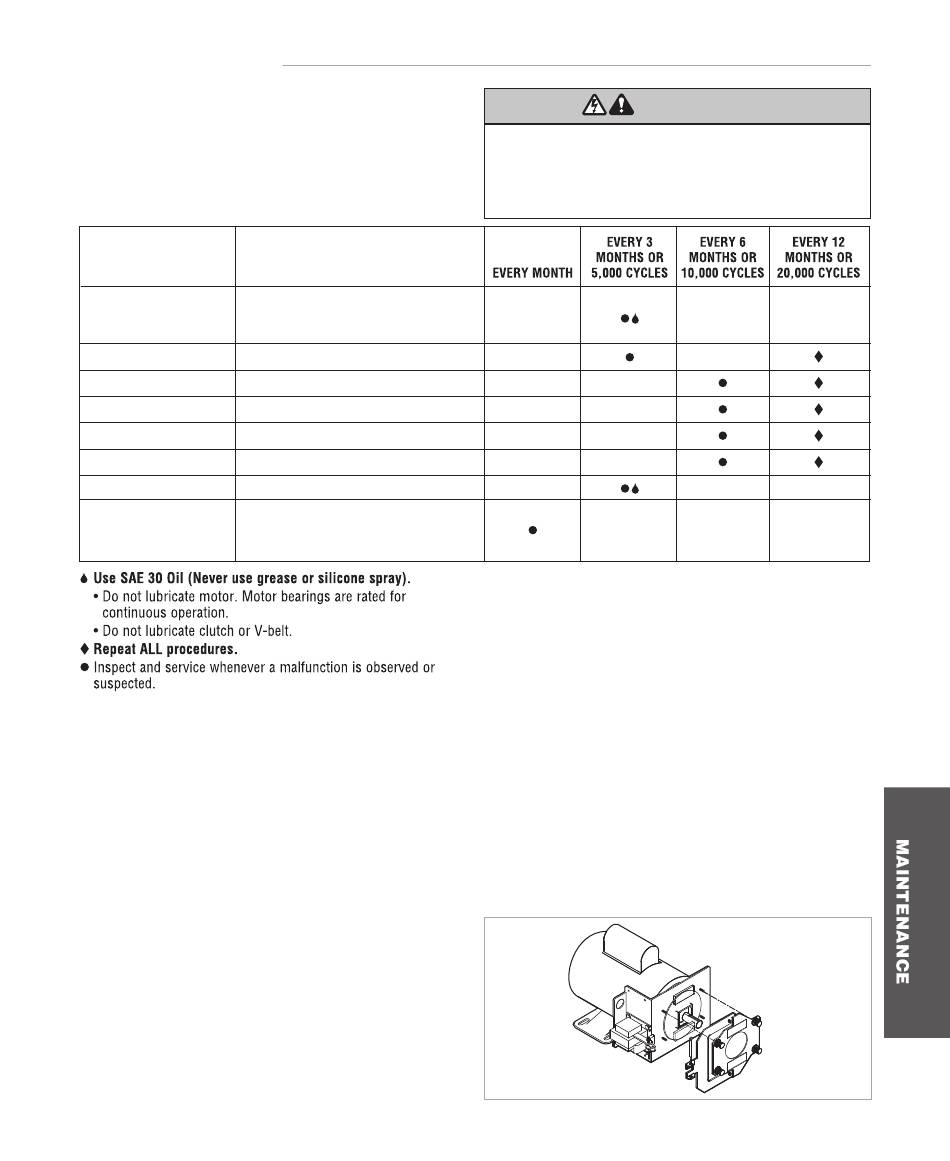

MAINTENANCE SCHEDULE

CAUTION
For use with Maintenance Alert System.
Check at the intervals listed in the following chart:
ITEM
Check for excessive slack.
Drive Chain
Check and adjust as required.
Lubricate.
Sprockets
Check set screw tightness.
Clutch
Check and adjust as required.
Belt Check condition and tension.
Fasteners Check and tighten as required.
Manual Disconnect
Check and operate.
Bearings and Shafts Check for wear and lubricate.
Check alignment and
LiftMaster Monitored
functionality.
Entrapment Protection
(LMEP)

LIFE OF OPERATOR FEATURE (ODOMETER/CYCLE COUNTER)

The operator is equipped with an odometer to show how many months and cycles the operator has performed from the time it as
installed. This feature can help determine how long the operator has been in service.
1. Start with the door in the closed position.
2. Turn the SELECTOR DIAL to DIAG (diagnostic mode).
3. Press and release the MAS button on the logic board.
4. Press and release the MRT button on the logic board.
5. The open and close lights will flash. OPEN for every 5,000 cycles and CLOSE for every 3 months.
6. Return the SELECTOR DIAL to the desired wiring type.
NOTE: If the operator has not reached 5,000 cycles or 3 months, there will be no indications.

BRAKE (IF PRESENT)

A solenoid brake is available as an option for some models. The
brake is adjusted at the factory and should not need additional
adjustment for the life of the brake assembly.
Inspect the brake pad and replace brake assembly when
necessary.
NOTE: Your operator may look different than the operator shown.
To avoid SERIOUS personal INJURY or DEATH:
• Disconnect electric power BEFORE performing ANY
adjustments or maintenance.
• ALL maintenance MUST be performed by a trained door
systems technician.
PROCEDURE
35
WARNING WARNING
