INTRODUCTION

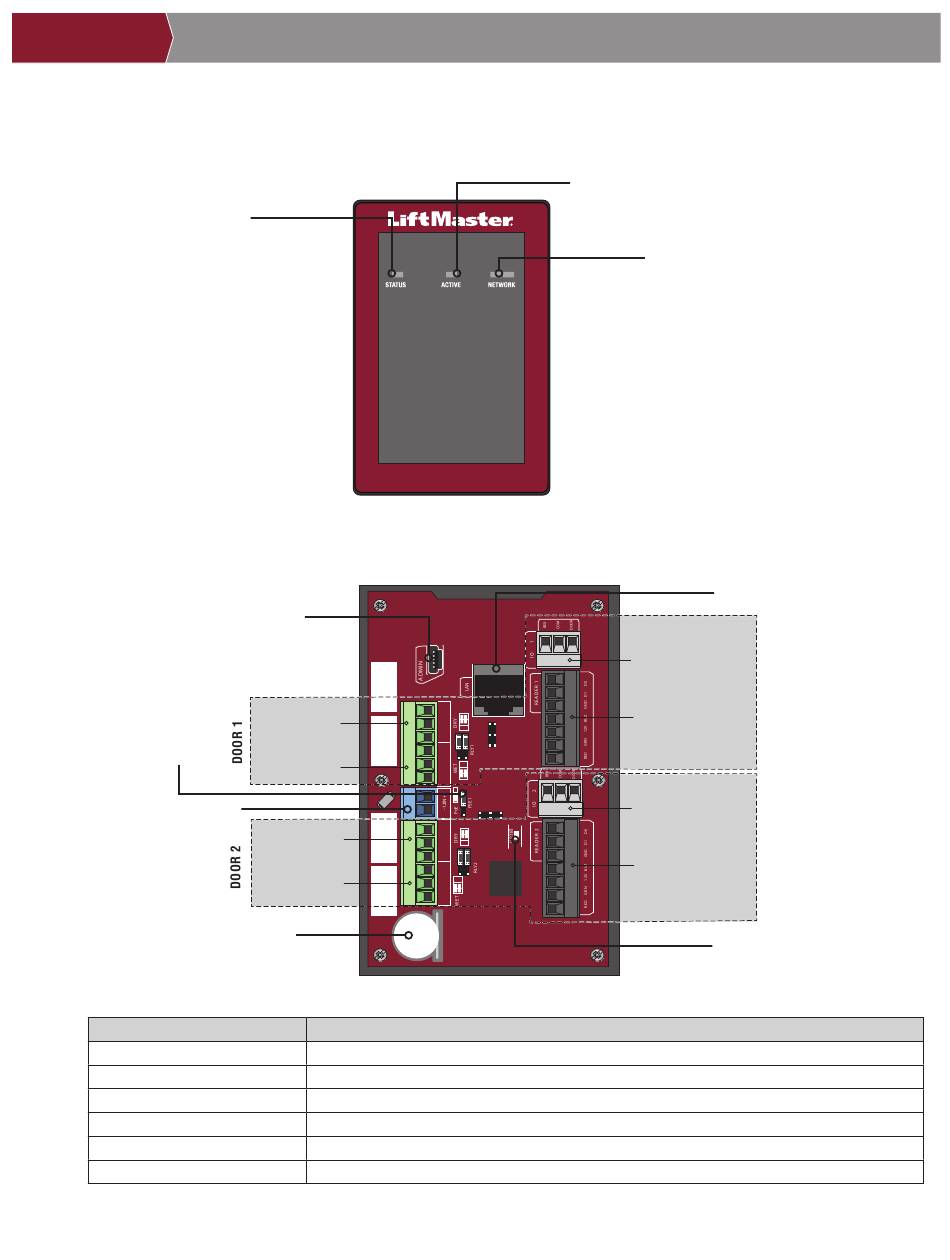

Controller Overview

STATUS LED
Solid: System has power

Control Board Overview

ADMINISTRATIVE USB
POWER CONFIG
JUMPER
EXTERNAL 12V POWER
BACKUP LITHIUM COIN BATTERY
(CR1220)
Control Board Connection
Administrative USB
LAN/PoE
Backup Lithium Battery
Local Heartbeat
Relay Indicator
Power Confi guration
PRE-INSTALL WIRING
Auxiliary Relay 1
Primary Relay 1
Auxiliary Relay 2
Primary Relay 2
Connect via Mini-USB to access administrative
Connect to network. May also carry 802.3af/at power
Battery preserves the system's data during primary power outages
LED indicates proper function
LED lights when relay is engaged (one per relay)
Jumper selects between PoE and Auxiliary Power
NETWORK
FRONT VIEW
ACTIVE LED
OFF/Solid: System is starting
Blinking: System operational.
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
4
ACCESS CONTROL
NETWORK LED
Orange LED: 100MBit Link
Blue LED: Network activity
Right Blue LED: Good connection to the network
LAN/PoE Connector
REQUEST TO EXIT
STATUS
WIEGAND INPUT
REQUEST TO EXIT
STATUS
WIEGAND INPUT
LOCAL HEARTBEAT LED
Description
INSTALL
