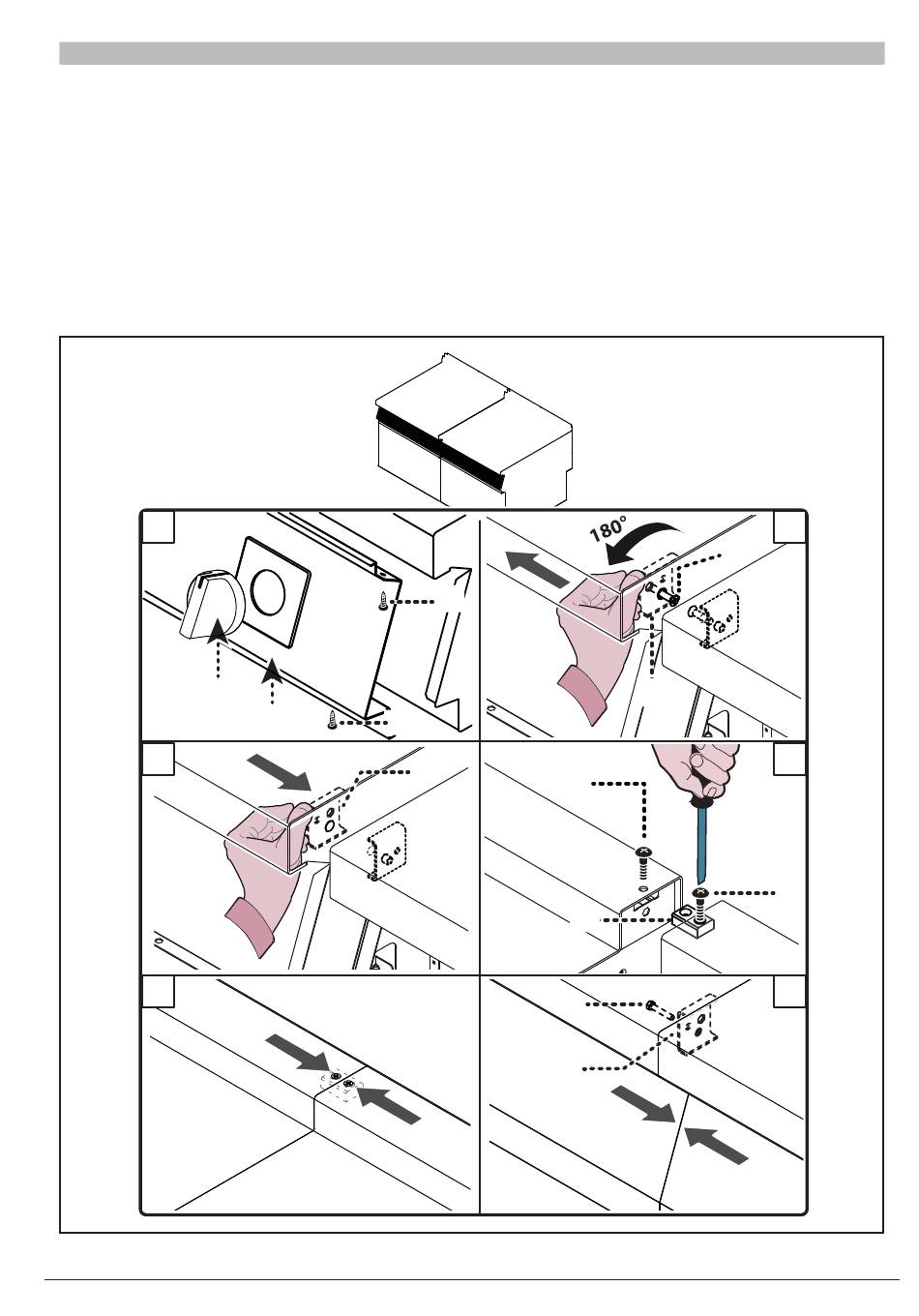

HANDLING AND INSTALLATION
To assemble appliances in banks (side by side)
proceed as described below.
Pull off the knobs (A) (fi g.1).
1)
Undo the screws (C) and remove the control
2)
panels (B) (fi g.1).
Undo the screw (D) and turn the bracket (E)
3)
of 180° anti-clockwise (fi g. 2-3).
Connect the appliances using the screws (F)
4)
and the bracket (G) (rear part) (fi g. 4-5).
1
A
3
5
3395270_inst_GB_rev.1
BANK ASSEMBLY OF APPLIANCES
B
C
E
Connect the appliances using the screw (H)
5)
(supplied) and the bracket (E) (front part)
(fi g.6).
After completing the operation, fi t the con-
6)
trol panels (B) and the knobs (A) back in
place (fi g.1).
A variety of optional installation kits are avail-
able for arranging appliances in banks (see the
"general catalogue"):
C
F
G
H
E
ENGLISH
