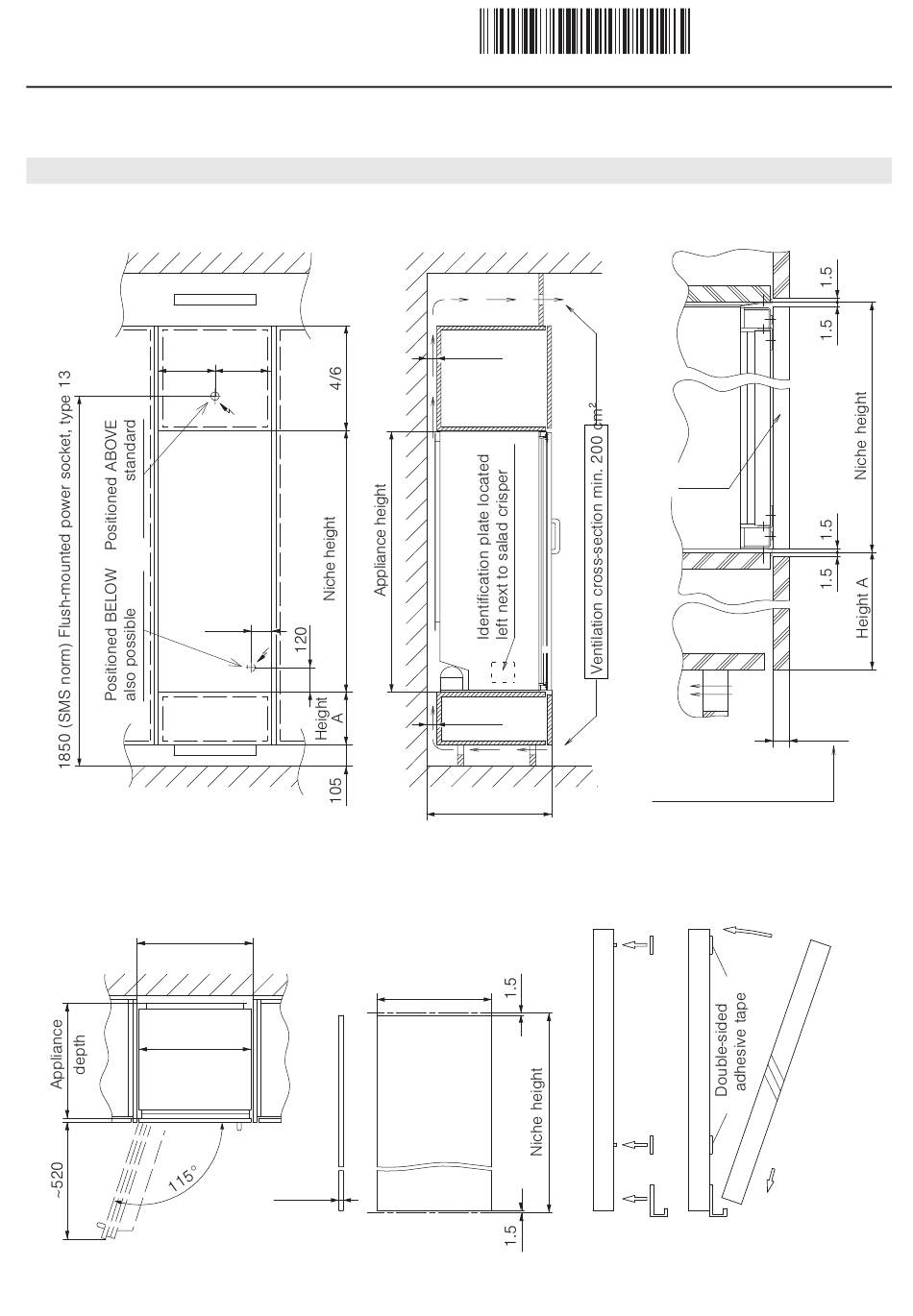

Installation instructions
Refrigerator Optima 2 KO2i, Optima 2 eco KO2ieco, Optima 3 KO3i
Built-in SMS
Built-in, integratable door
=
*
Allow a gap – at the top and bottom – less than the width of the appliance to ensure proper ventilation
(sheets 5–13 in the technical guide on kitchen planning and design from the Swiss Kitchen Association (KVS)).
Shadow gaps alone – even if extended over several elements – are not sufficient.
Niche
550
Appliance
width
=
100
16–20
min. 50
min. 50
Niche
605
Door panel
0
547
-2
8
J51014.050-1
30.10.14
Door panel width with 3 mm ga
Wall unit
Door panel
16–20
For door panel thickness
> 20 mm, see H7.0314
4
2
2
3
1
