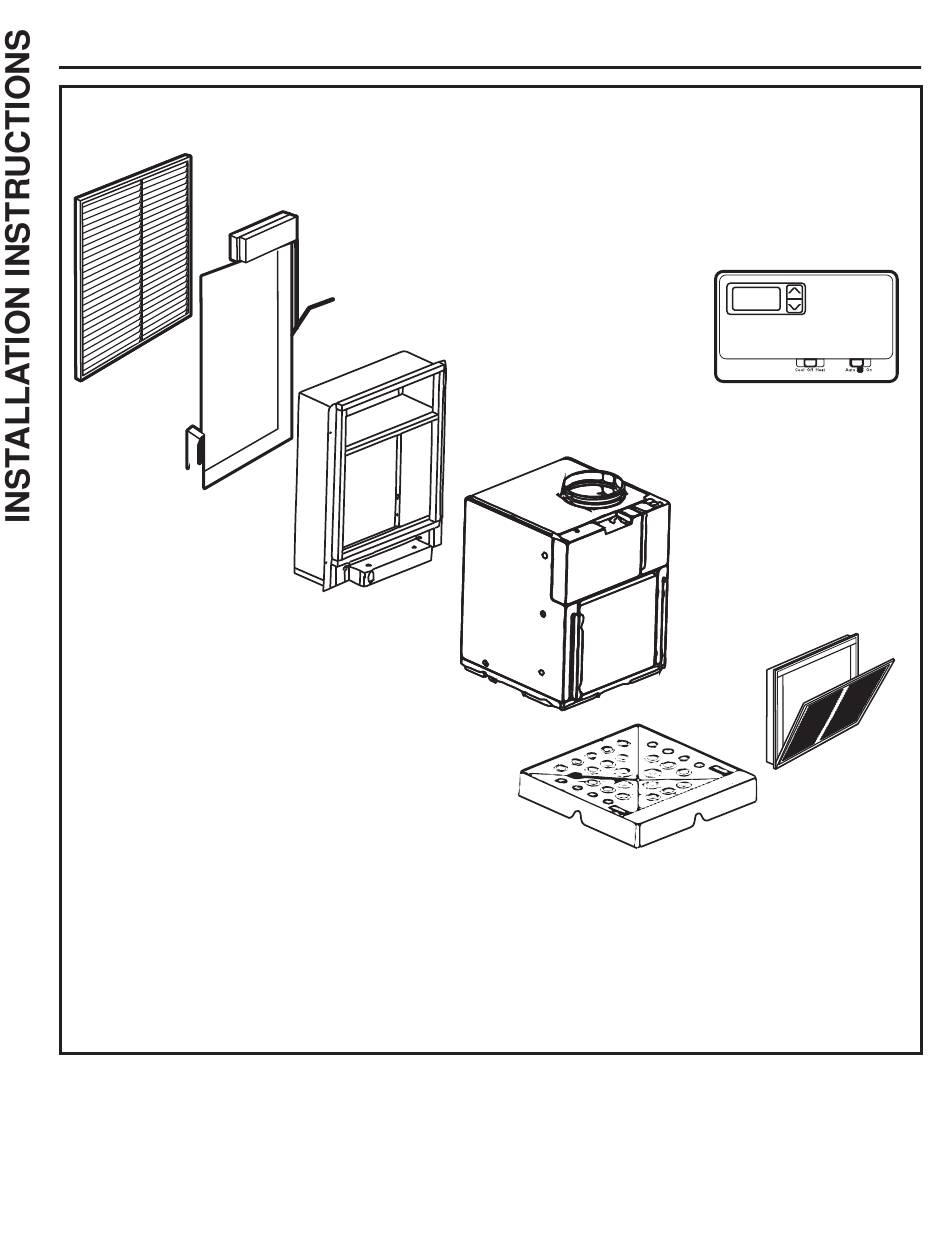

Installation Overview
ZONELINE COMPONENTS
Architectural
Louver
RAVAL3
Exterior/Outside
Wall
Wall Plenum (telescoping)
RAVWP15 – 8"-15
• Install the wall plenum through the exterior wall in accordance with the Installation Instructions provided with
the plenum.
IMPORTANT:
loads. Proper wall header construction is required. The plenum requires
proper flashing, shim, and caulk for a weather resistant installation.
10
Proper header for
structural support.
Apply proper caulking
and flashing.
"
"
"
D x 23
⁄
W x 31
⁄
H
3
3
4
4
The wall plenum is not designed to carry structural
Properly square
and level plenum.
Zoneline unit
Drain Platform
RAVDPLAT
Wall Thermostat
Return Air Grille
RAVRG2B
49-5000561 Rev. 1
