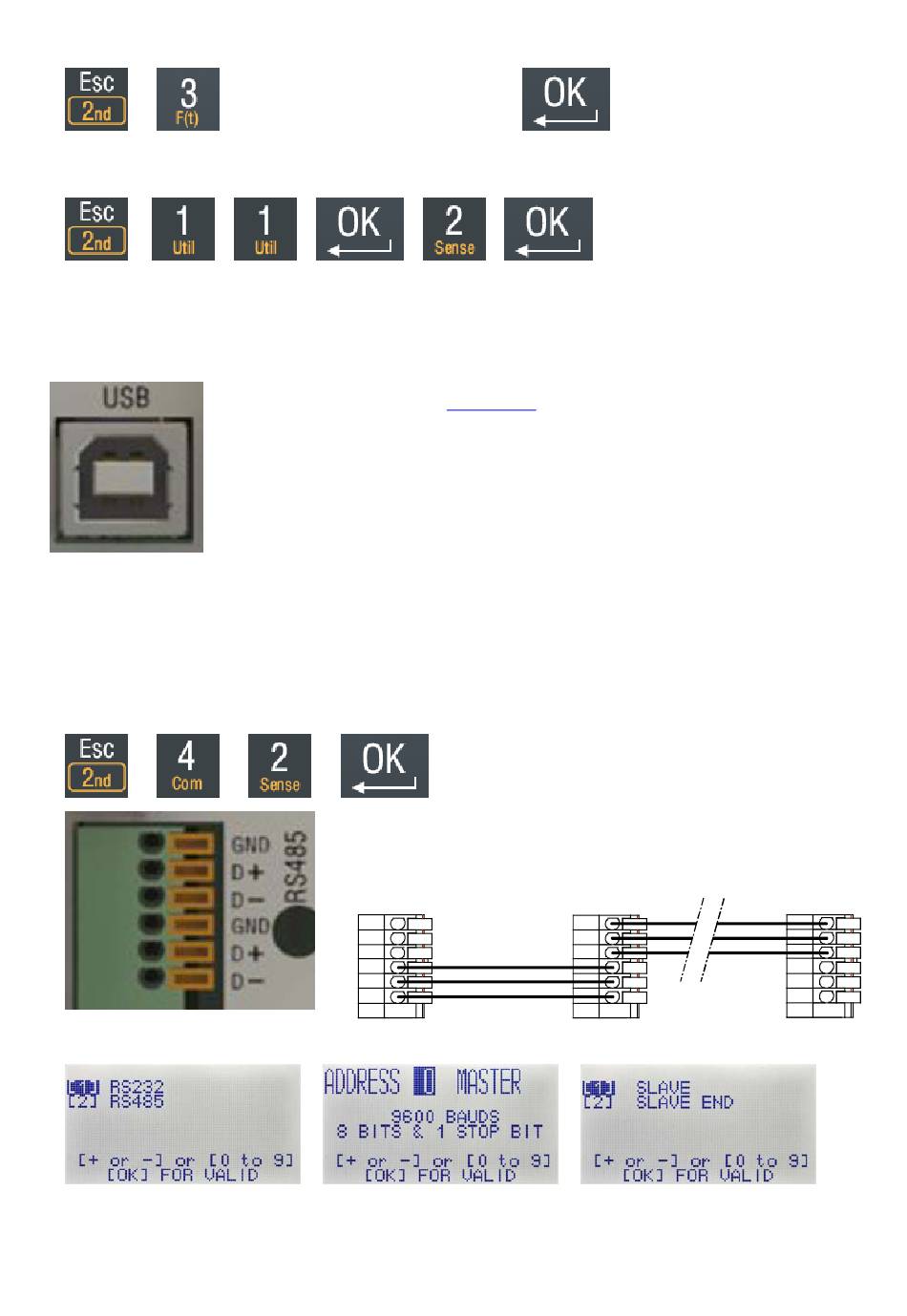

6.10 START PROGRAMMED FUNCTIONS:
→
→
6.11 CHANGE DISPLAY LANGUAGE (english) :
→
→
.
selected
7 USB CONNECTION
Preparation of communication :
Download on our website
Connect the power supply to the USB2.0 PC port with a USB cable
as A / B type USB (its length shouldn't exceed 5 meters).
Install the file.
Your PC is ready to communicate with the ALR3220.
Use "Hyper Terminal ®" simple utility to communicate via the serial
port, present on all PCs with Windows 95®, 98®, XP®, Seven®.
You will find on the website www.elc.fr, LabVIEW ® drivers and user manual.
The USB connection allows to upgrade the Firmware" (see website).
8 RS485 CONNECTION
→
→
Configure addresses of the power supplies.
4000 4 356_11-20
Follow and valid choices with key
→
→
→
adresse = 0
MASTER
→
→
www.elc.fr
the file : ALR32xx.inf
.
adresse = 1
SLAVE
GND
D+
D-
23
English language
adresse = 31
SLAVE END
GND
D+
D-
ENGLISH
