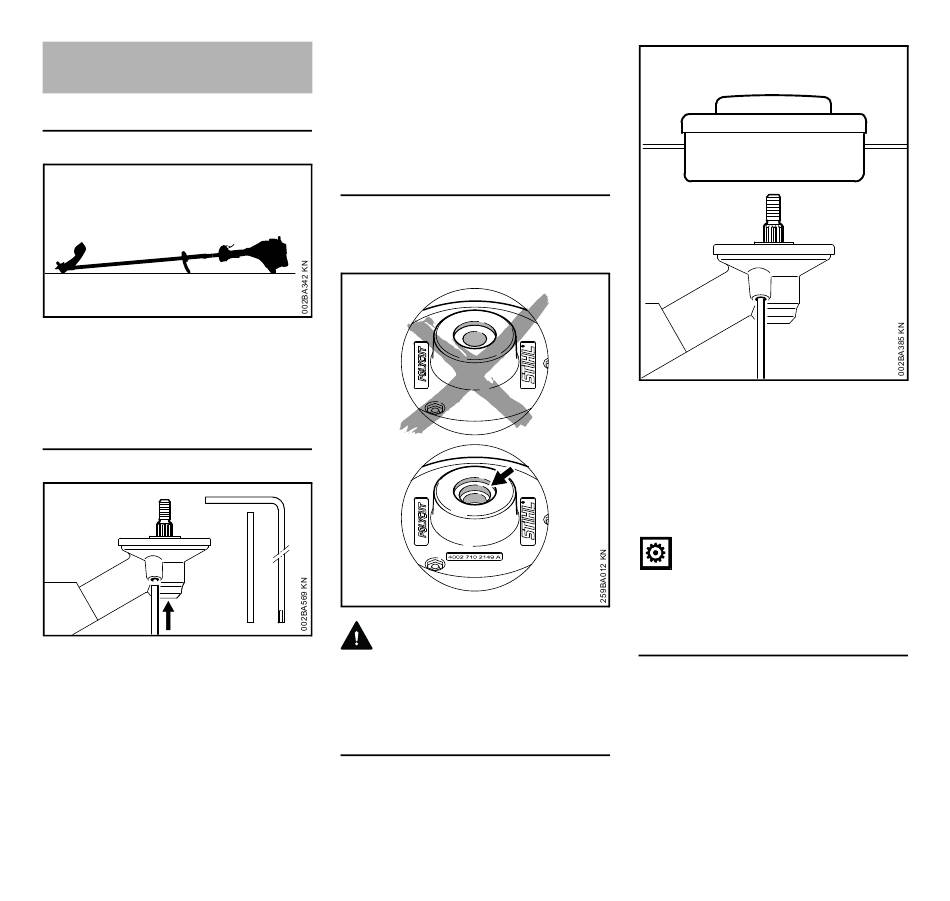

Mounting the Cutting
Attachment
Laying down the machine
Switch off the engine
N
Lay down the machine so that the
N
mount for the cutting attachment
faces upward
Blocking the shaft
1
3
2
To mount and remove the cutting
attachments, the shaft (1) must be
blocked with the locking pin (2) or Allen
wrench (2). The parts are included in the
scope of delivery and are available as
special accessories.
FS 111 RX
Push the locking pin (2) or Allen
N
wrench (2) as far as it will go into the
hole (3) in the gear – press gently
Turn the shaft, nut or cutting
N
attachment until the locking pin
engages and the shaft is blocked
Mounting the STIHL PolyCut 20-3
Keep the supplement sheet for the
mowing head in a safe place.
2
WARNING
Install only the mowing head with a
double-stepped seat as shown above.
Fitting the mowing head with screw
mounting
Keep the supplement sheet for the
mowing head in a safe place.
1
Fit the thrust plate
N
Turn the mowing head
N
anticlockwise on the shaft (1) as far
as it will go
Retain the shaft
N
Tighten the mowing head
N
NOTICE
Remove the tool that was used to block
the shaft.
Removing the Mowing Head
Retain the shaft
N
Turn the mowing head clockwise
N
English
