MOUNTING THE GUARD
WARNING:
the attachment is connected to the power
head.
WARNING:
injury to people, do not operate without
guard in place.
WARNING:
when mounting or replacing the guard. Be careful of the line-cutting blade on the guard and
protect your hands from being injured by the blade.

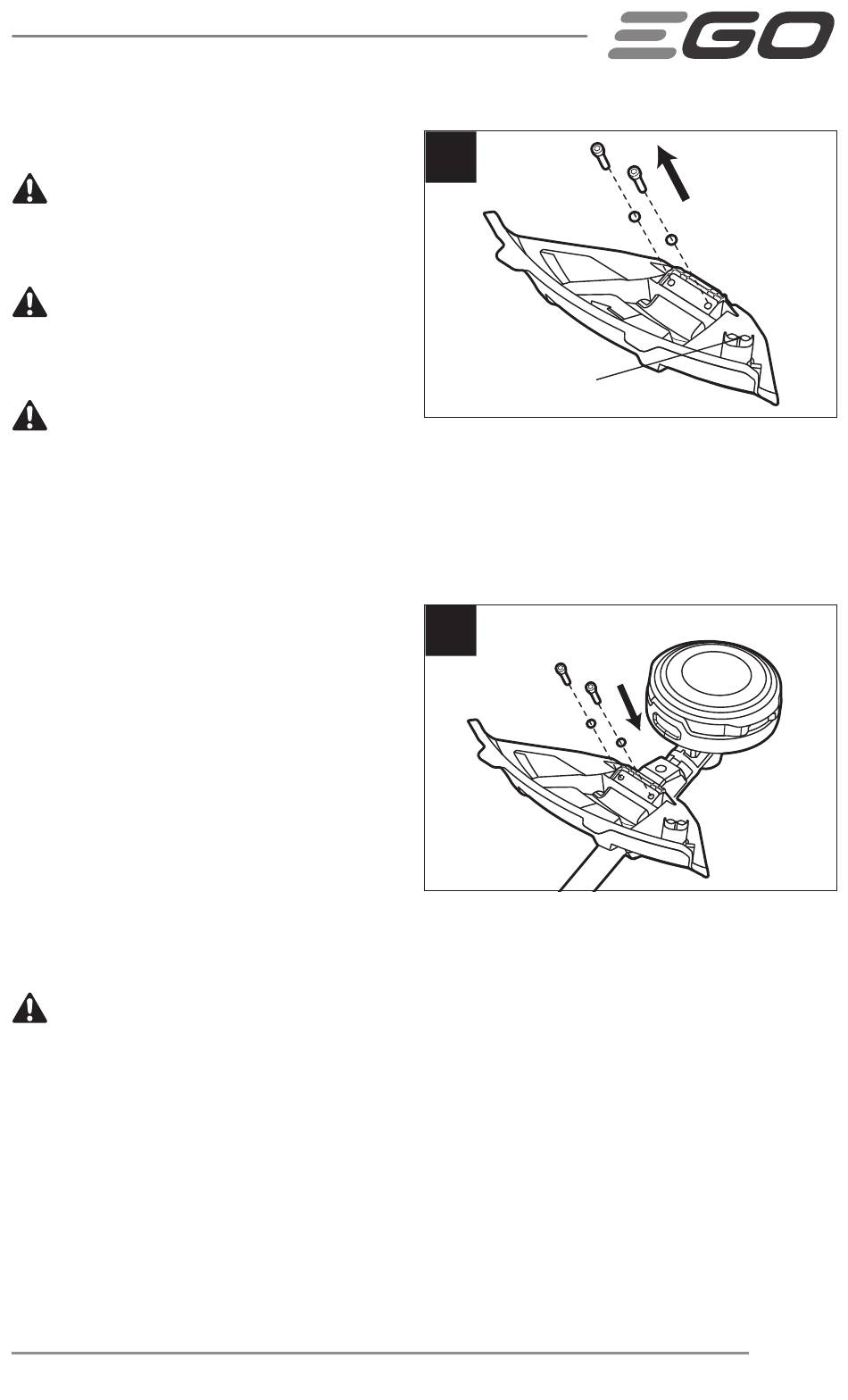

1. Loosen the two bolts in the guard with the supplied hex key; remove the bolts and
spring washers from the guard (Fig. 2).
2. Lift the trimmer head and face it
upward; align the two mounting
holes in the guard with the two
assembly holes in the base of the
shaft. Make sure that the internal
surface of the guard faces towards
the trimmer head (Fig. 3).
3. Use the supplied hex key to secure
the guard in place with the bolts and
washers.
CONNECTING THE STRING TRIMMER ATTACHMENT TO THE POWER HEAD
WARNING:
running or with the battery installed. Failure to stop the motor and remove the battery
may cause serious personal injury.
This string trimmer attachment is designed for use with EGO Power Head PH1420/PH1420-FC/
PHX1600/PHX1600-FC.
The string trimmer attachment connects to the power head by means of a coupler device.
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob on the power-head coupler.
Install the guard before
To reduce the risk of
Always wear gloves
Never attach or adjust any attachment while the power head is
STRING TRIMMER ATTACHMENT — STA1700/STA1700-FC
2
Line-cutting Blade
3
17
