5 CONNECTING THE UNIT
CAUTION: A 5-micron filter (TSD800-6), not included, is recommended to be installed
with the unit to ensure proper air filtration.
Items Description
1 To Air Source
2 Air Filter
3 Power Adapter
4 Foot Switch
6 SETUP INSTRUCTIONS

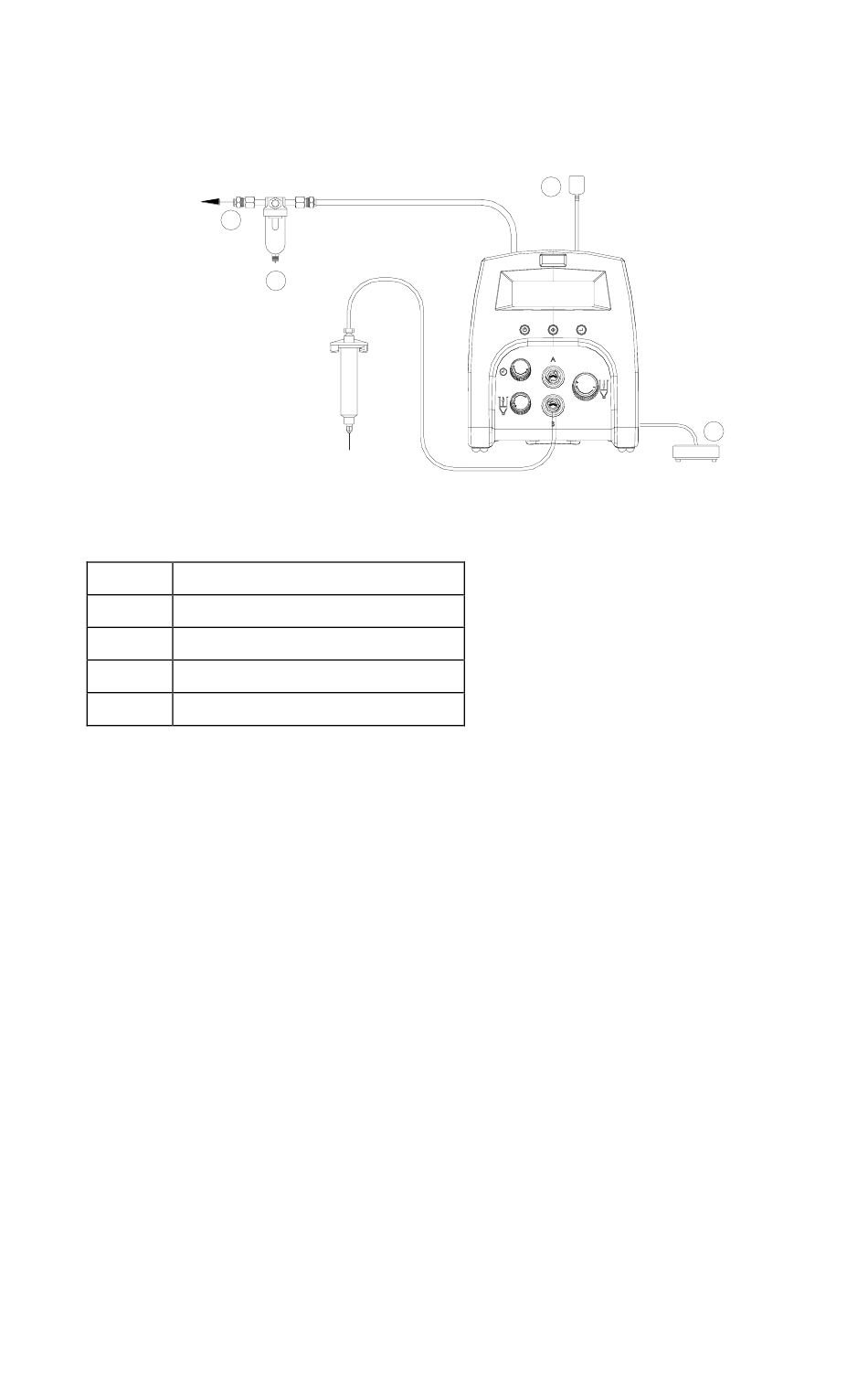

Refer to Figure 1.0
6.1 Manual/Purge Dispense Cycle Setting:
1. Turn on the unit by pressing the Power button (1).
2. Press the Mode button (2) until "PURGE" appears on the Display.
3. Turn up the air pressure by rotating the Air pressure regulator knob (5) until
the desired pressure is indicated on the Display.
4. After filling the barrel or using pre-packaged adhesive, attach syringe to
receiver head assembly. Make certain that the syringe locks into place.
5. Connect the plug end of the receiver head assembly to one of the air
dispense outlet (6).
6. If vacuum "suck back" is needed, rotate the Vacuum regulator (7) counter
clockwise until the desired vacuum pressure is indicated on the Display.
7. Press and hold the Foot switch to activate dispensed cycle. (The
Manual/Purge Mode is now activated)
6.2 Automatic Dispense Cycle Setting
6.2.1 Program selection
1. Press the reset button (3) until "P:" is flashing
2. Rotate the Setup Control Knob (8) to select desired program
6.2.2 Timed Mode setting
1. Press the Mode button (2) to select "TIMED" mode
