PRODUCT CONCERNED : GEO CITY GRIP VISION / GEO CITY GRIP / TRAIL GRIP
Before installing your pedals, ensure the screw threads on the crank arms are BSA standard (9/16x20).
Clean and grease the crank arm threads before inserting the pedal. Locate the left pedal, marked with a
ring around the axle (See diagram A). The pedal screws in counterclockwise. Using an 8mm Allen wrench,
tighten to a torque of 25Nm (See diagram B).

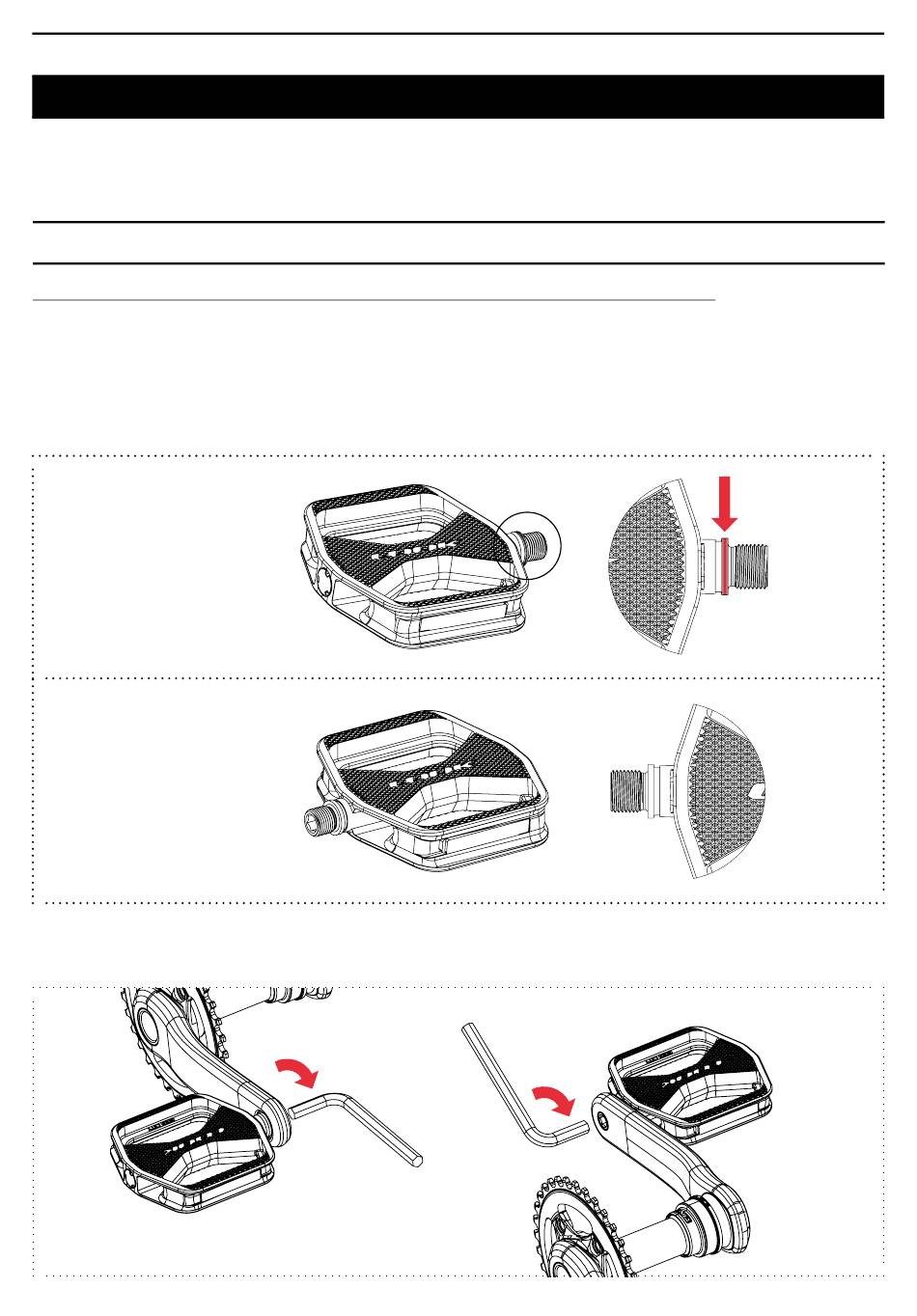

A / LOCATING THE LEFT AND RIGHT HAND PEDALS
LEFT PEDAL
B
RIGHT PEDAL
B/ SERRAGE DE LA PEDALE SUR MANIVELLE
B / TIGHTENING THE PEDAL ON THE CRANK ARM
B/ SERRAGE DE LA PEDALE SUR MANIVELLE
All manuals and user guides at all-guides.com
INSTALLING THE PEDALS ON THE CRANK ARMS
B
A
B
A
A
25 Nm
EN
B
DÉTAIL
B
ECHELLE 2 : 1
25 Nm
