ENGLISH

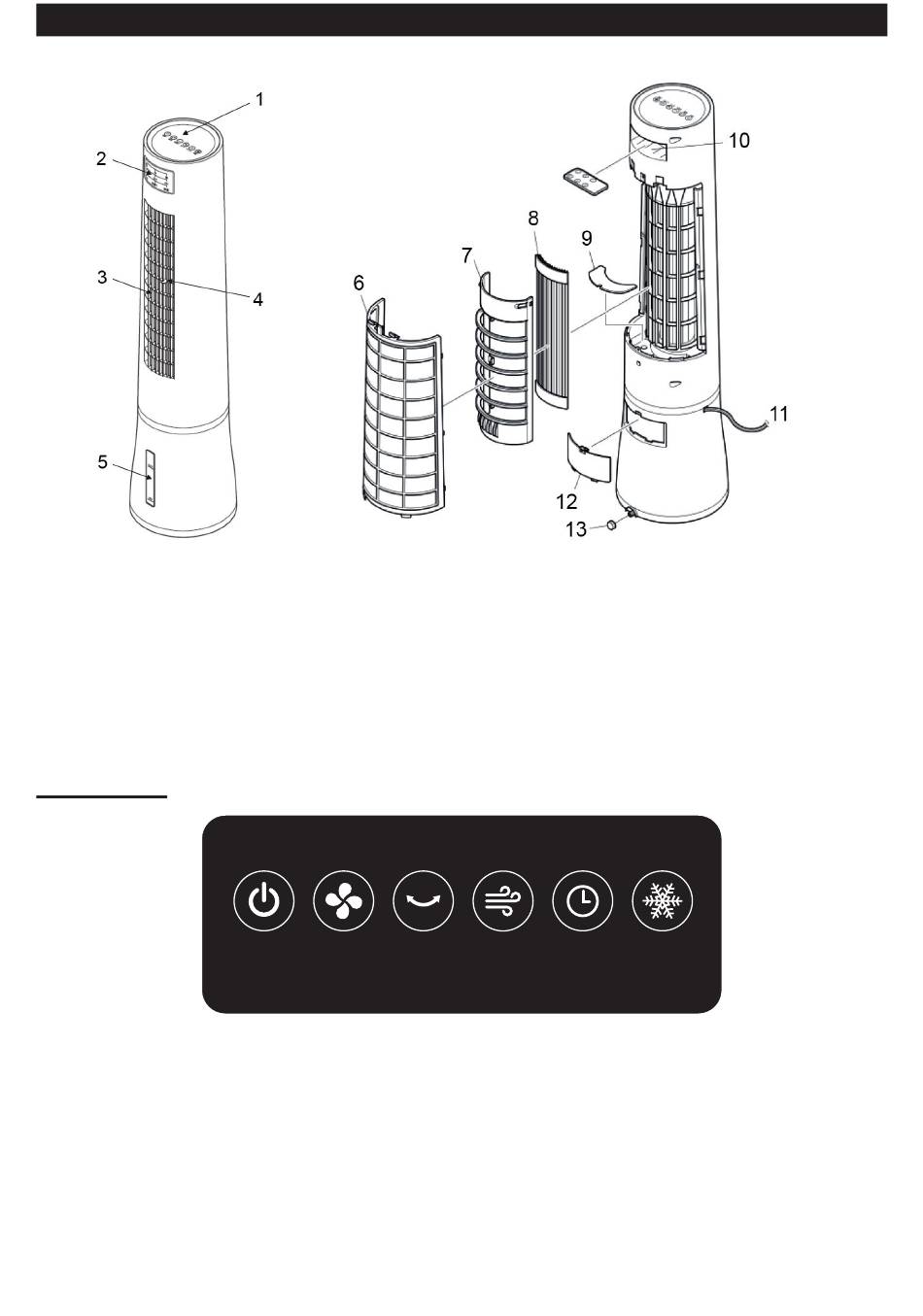

1. Control panel
2. Display
3. Air outlet
4. Wind direction knob
5. Water level display
6. Cover of air inlet
7. Water screen frame
Operation
ON/OFF
When pressed the fan starts working at LOW speed and normal mode. (indicated on the frontal Display).If
pressed again the fan will switch OFF.
SPEED
When pressed the fan will cycle between 3 different speeds Low-Mid-Hi.
OSC
If pressed it will turn ON and OFF the oscillation of the fan (60° as indicated on the display).
12
O O N N / / O O F F F F
S S P P E E E E D D
O O S S C C
8. Water screen
9. Filter
10. Remote storage
11. Power cord
12. Cover of the water tank
13. Drain plug
M M O O D D E E
T T I I M M E E R R
C C O O O O L L
