Remove Trim Pieces
1. Remove all tape and door bracing from the refrigerator and
freezer doors.
2. Open the refrigerator and freezer doors.
3. Remove the hinge cover pieces from the top and bottom of
the door to expose the holes in the hinges.
A
A. Hinge cover pieces

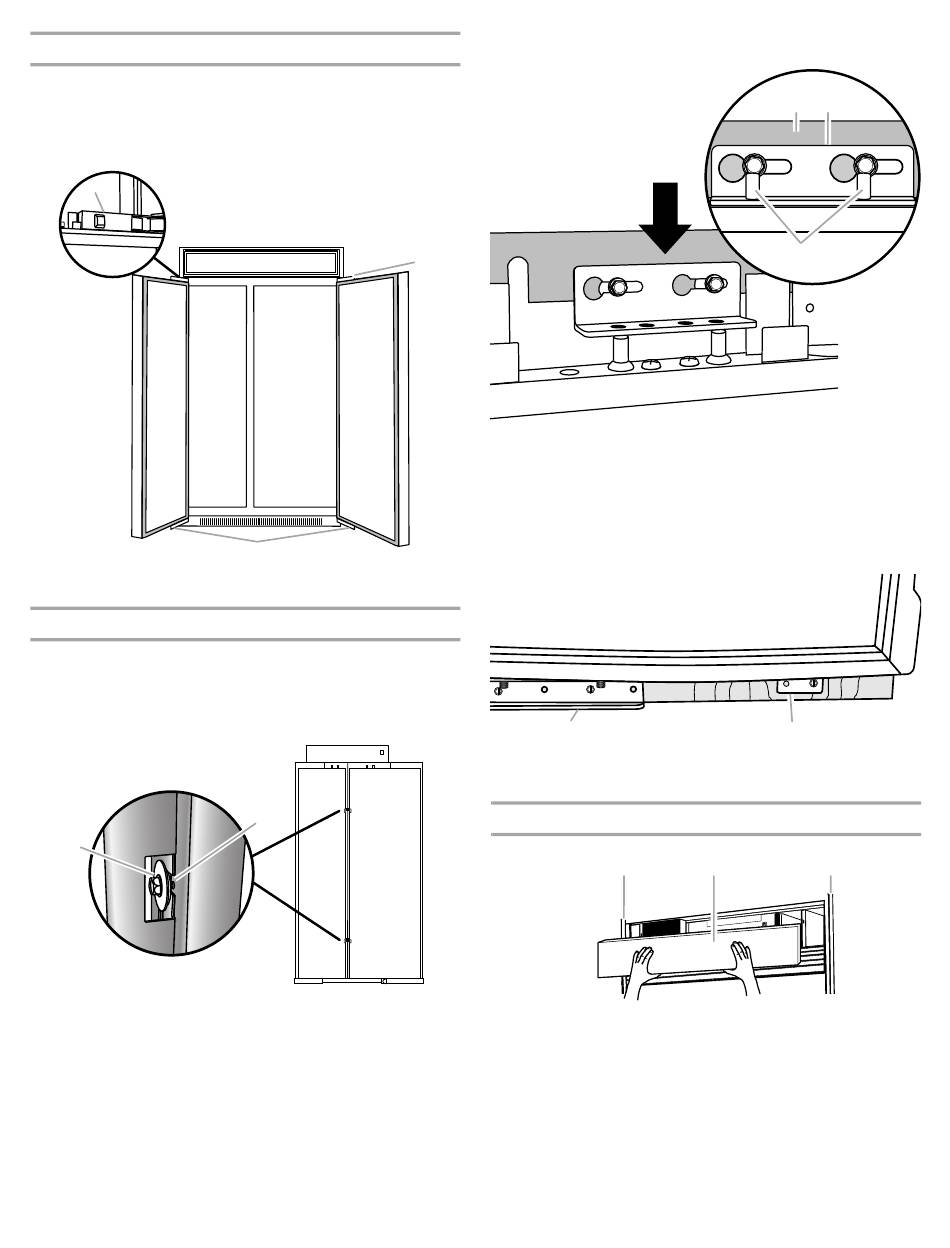

Install Door Panels
IMPORTANT: Use the foam packaging to prop and hold the
door(s) open while installing a door panel.
1. Align the two shoulder washers, on the back of the door
panel, with the "J" slots on the side of the refrigerator door.
Slide the panel onto the door.
A
A. Shoulder washer and hex head pointed screw
B. "J" pocket
A
A
B
2. Lower the panel bracket down onto the adjustment pins at the
top of the door.
A. Door panel
B. Mounting bracket
3. Repeat steps 1 through 2 to install the second door panel.
4. Using slotted hex-head screws (provided with refrigerator),
attach the mounting bracket (factory installed), located at the
bottom of the refrigerator and freezer doors, to the respective
door panels. Do not fully tighten the screw.
A
A. Bottom hinge
B. Mounting bracket
Install Top Grille Panel
B
A. Top grille panel
B. Cabinet sides
A
B
C
C. Adjustment pins
B
A
B
