Use the Integrated Grille brackets for a Fully Integrated
Grille installation with a full height grille.
Use the Standard Grille brackets for a Standard Integrated
Grille Installation with a closed or open soffit.
A. Top grille brackets
B. White, grille trim piece
(taped to refrigerator door)
2. Using round-head screws (provided with refrigerator), attach
the grille trim piece to the bottom of the grill panel.
NOTE: The grille trim is preinstalled on the panel kits.
Remove Trim Pieces
1. Remove all tape and door bracing from the refrigerator and
freezer doors.
2. Open the refrigerator and freezer doors.
3. Remove the hinge cover pieces from the top and bottom of
the door to expose the holes in the hinges.
A
A. Hinge cover pieces
A
B
A
A
Install Door Panels
IMPORTANT: Use the foam packaging to prop and hold the door(s)
open while installing a door panel.

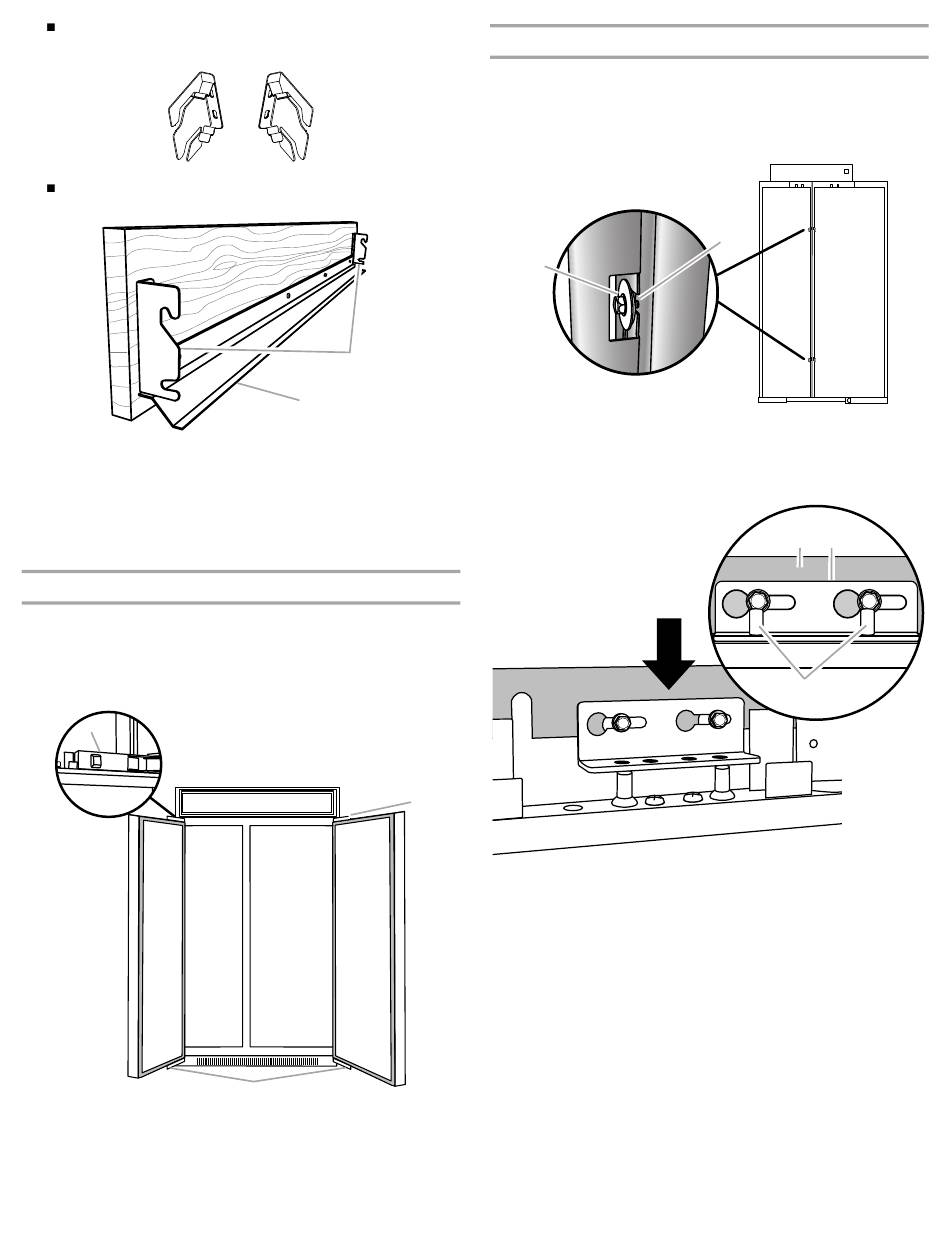

1. Align the two shoulder washers, on the back of the door panel,
with the "J" slots on the side of the refrigerator door. Slide the
panel onto the door.
A
A. Shoulder washer and hex head pointed screw
B. "J" pocket
2. Lower the panel bracket down onto the adjustment pins at
the top of the door.
A. Door panel
B. Mounting bracket
3. Repeat steps 1 through 2 to install the second door panel.
B
A
B
C
C. Adjustment pins
