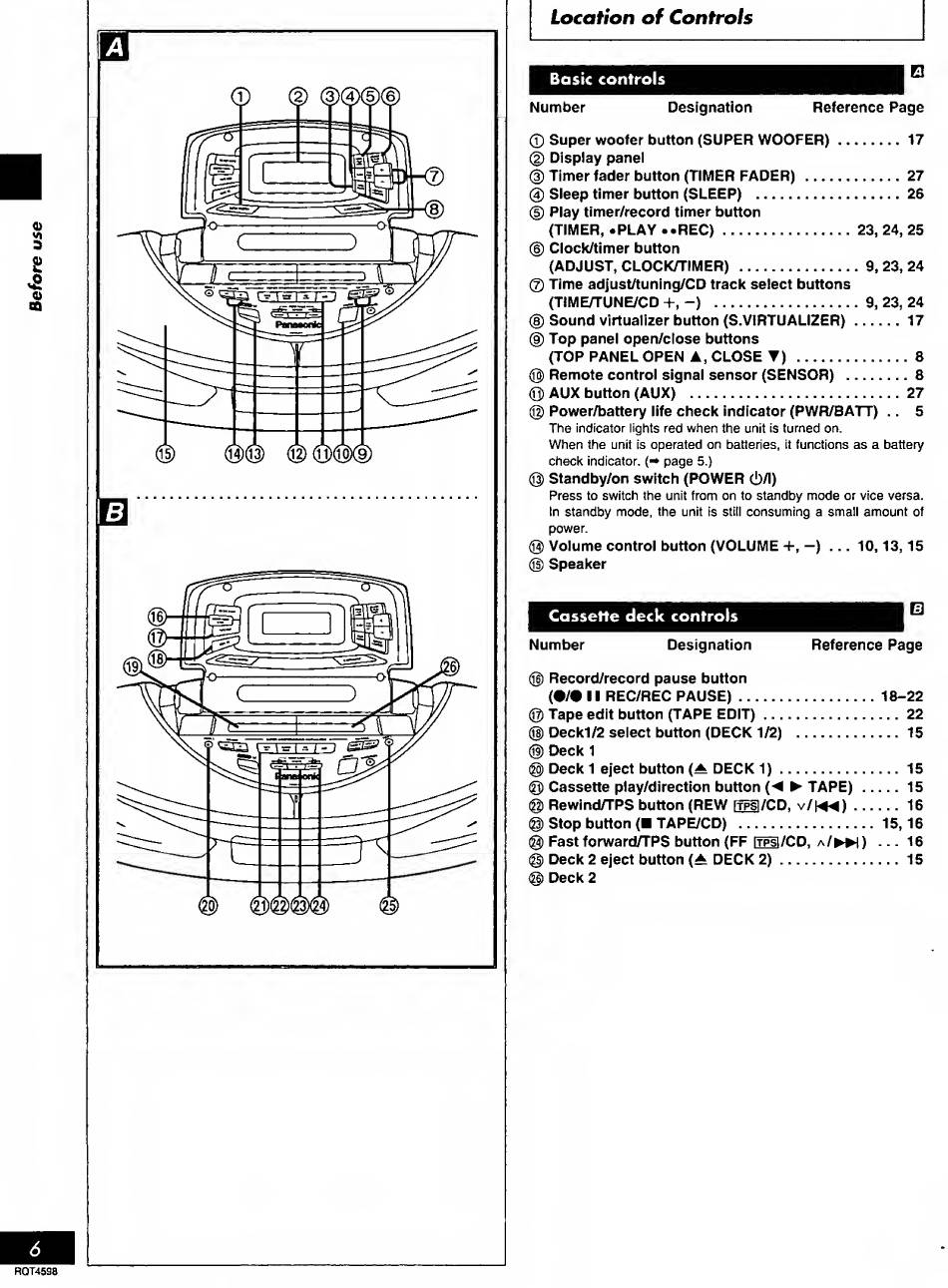

Location of Controls
Basic controls
Number Designation Reference Page
© Super woofer button (SUPER WOOFER).17
© Display panel
(D Timer fader button (TIMER FADER) .27
@ Sleep timer button (SLEEP) .26
© Play timer/record timer button
(TIMER, .PLAY ..REC). 23, 24, 25
© Clock/timer button
(ADJUST, CLOCK/TIMER) .9, 23, 24
© Time adjust/tuning/CD track select buttons
(TIME/TUNE/CD +, -) .9, 23, 24
(§) Sound virtualizer button (S.V1RTUALIZER).17
© Top panel open/close buttons
(TOP PANEL OPEN ▲, CLOSE ▼) .8
© Remote control signal sensor (SENSOR) .8
© AUX button (AUX) .27
© Power/battery life check indicator (PWR/BATT) .. 5
The indicator lights red when the unit is turned on.
When the unit is operated on batteries, it functions as a battery
check indicator. (■* page 5.)
@ Standby/on switch (POWER (!)/l)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
© Volume control button (VOLUME +, -) ... 10,13,15
© Speaker
Cassette deck controls
Number Designation Reference Page
© Record/record pause button
(•/•II REC/REC PAUSE).18-22
© Tape edit button (TAPE EDIT).22
© Deckl/2 select button (DECK 1/2) .15
® Deck 1
© Deck 1 eject button (A DECK 1).15
© Cassette play/direction button (◄ ► TAPE).15
@ Rewind/TPS button (REW [Tpg/CD, v/«^).16
@ Stop button (■ TAPE/CD) .15, 16
@ Fast forward/TPS button (FF mn/CD, a/*X) ... 16
© Deck 2 eject button (± DECK 2).15
© Deck 2
