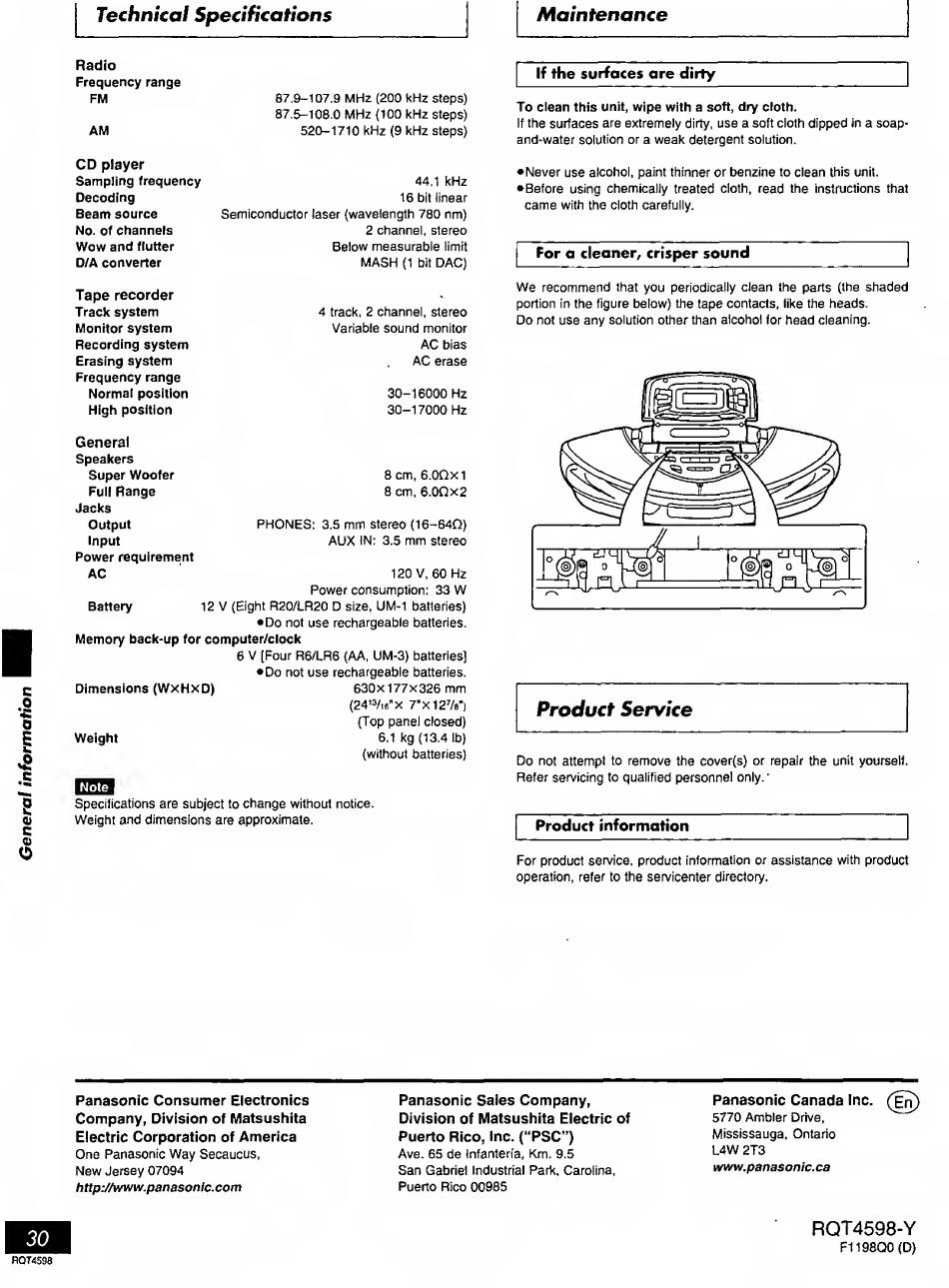

Technical Specifications; Maintenance; Product Service - Panasonic Rx-Ed707 Manuel D'utilisation

Maintenance
Technical Specifications
Radio
Frequency range
FM 87.9-107.9 MHz (200 kHz steps)
87.5-108.0 MHz (100 kHz steps)
AM
520-1710 kHz (9 kHz steps)
CD player
Sampling frequency
Decoding
Beam source
No. of channels
Wow and flutter
D/A converter
44.1 kHz
16 bit linear
Semiconductor laser (wavelength 780 nm)
2 channel, stereo
Below measurable limit
MASH (1 bit DAC)
Tape recorder
Track system
Monitor system
Recording system
Erasing system
Frequency range
Normal position
High position
4 track, 2 channel, stereo
Variable sound monitor
AC bias
AC erase
30-16000 Hz
30-17000 Hz
General
Speakers
Super Woofer
8 cm, 6.0Ox
1
Full Range
8 cm, 6.0QX2
Jacks
Output
PHONES: 3.5 mm stereo (16-640)
Input
AUX IN: 3.5 mm stereo
Power requirement
AC
120 V, 60 Hz
Power consumption: 33 W
Battery
12 V (Eight R20/LR20 D size, UM-1 batteries)
• Do not use rechargeable batteries.
Memory back-up for computer/clock
6 V [Four R6/LR6 (AA, UM-3) batteries]
• Do not use rechargeable batteries.
Dimensions (WXHXD)
630x177x326 mm
(24,3/i6"x 7"X127/s")
(Top panel closed)
Weight
6.1 kg (13.4 lb)
(without batteries)
Note
Specifications are subject to change without notice.
Weight and dimensions are approximate.
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap-
and-water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
For a cleaner, crisper sound
We recommend that you periodically clean the parts (the shaded
portion in the figure below) the tape contacts, like the heads.
Do not use any solution other than alcohol for head cleaning.
Product Service
Do not attempt to remove the cover(s) or repair the unit yourself,
Refer servicing to qualified personnel only.'
Product information
For product sen/ice, product information or assistance with product
operation, refer to the servicenter directory.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
h ttp:/Avww.panasonlc. com
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. ("PSC")
Ave. 65 de Infanterfa, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc. (^n)
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
www. Panasonic, ca
30
RQT4598
RQT4598-Y
F1198Q0 (D)
