OCTODANGLE - LEDs multi beams light DJ effect

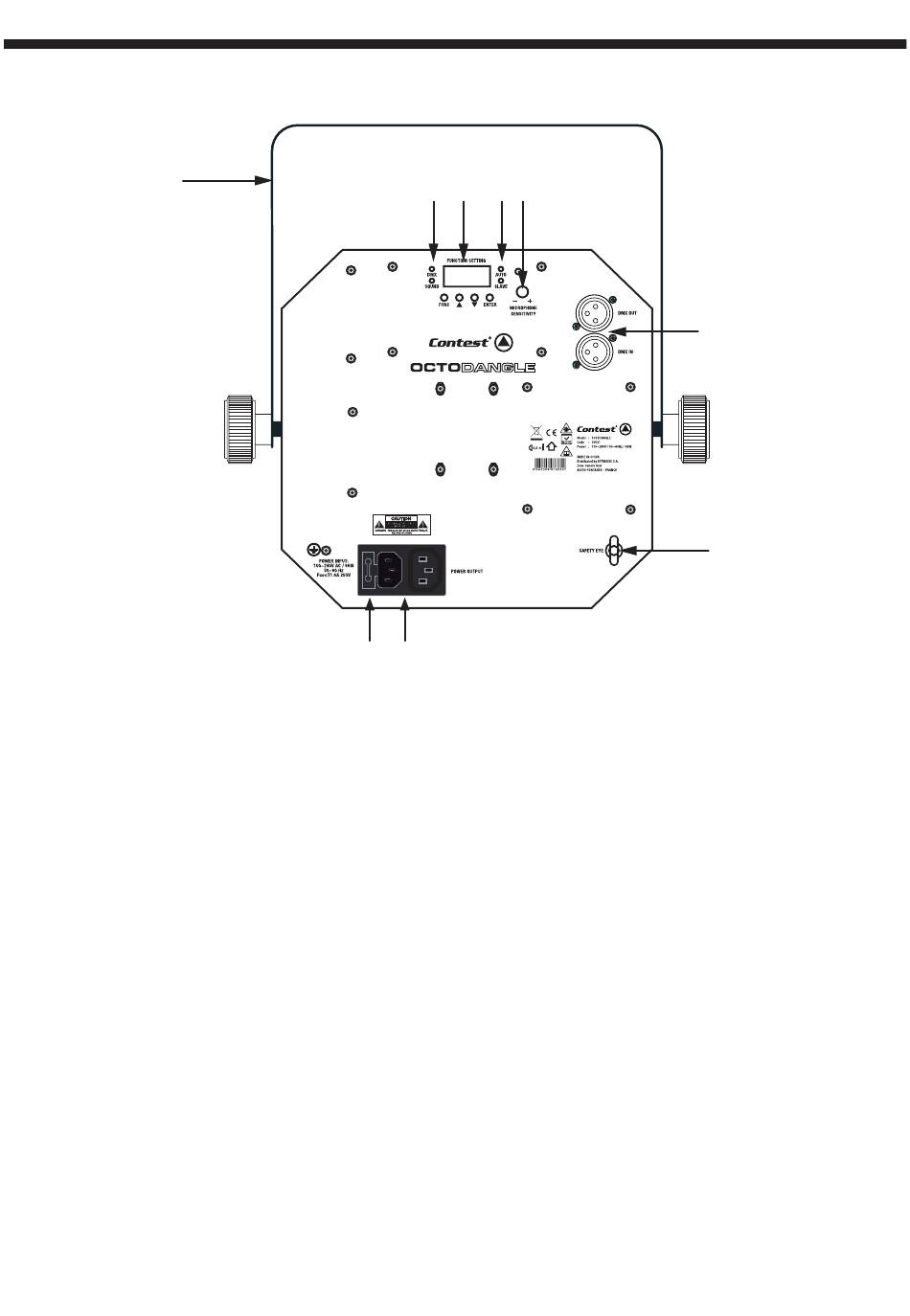

4 - Description
1
1 - Suspension bracket
Allows you to fix the OCTODANGLE on a
hook.
2 - DMX and SOUND LED
This LEDs give you some indications about
the modes
- DMX blinking slowly when the DMX is
activated
- SOUND light on the beat of the music
3 - Display
The display allows you to configure your
projector.
4 - AUTO and SLAVE LED
This LEDs give you some indications about
the modes
- AUTO light on when the OCTODANGLE is
set in this mode
- SLAVE light on when the OCTODANGLE is
set in this mode
5 - Micro adjustment
Allows to adjust the microphone sensitivity
Page 14
2 3 4 5
9 8
6 - DMX input and output
Allows to daisy chain the DMX from a
controller or a Master OCTODANGLE to other
DMX products.
7 - Safety eye
You must use a safety chain when you hook
the OCTODANGLE.
8 - Power input/output socket
Allows you to connect the projector to an
electrical outlet and to link several projectors
together
Please make sure the voltage is in adequation
with the product indications.
Caution : Do NOT go over 700W on the same
power source.
9 - Fuse
If need to replace the fuse, please make
sure the new fuse has exactly the same
characteristics as the original one.
6
7
via a Male/Female IEC cord.
