At least two installers are required due to the weight and
size of the hood.
•
This hood should be installed to a finished ceiling.
•
Turn off power circuit at the service panel before wiring
this unit.
•
All electrical work must be done by a qualified electrician
in accordance with all applicable codes and standards.
This range hood must be properly grounded.

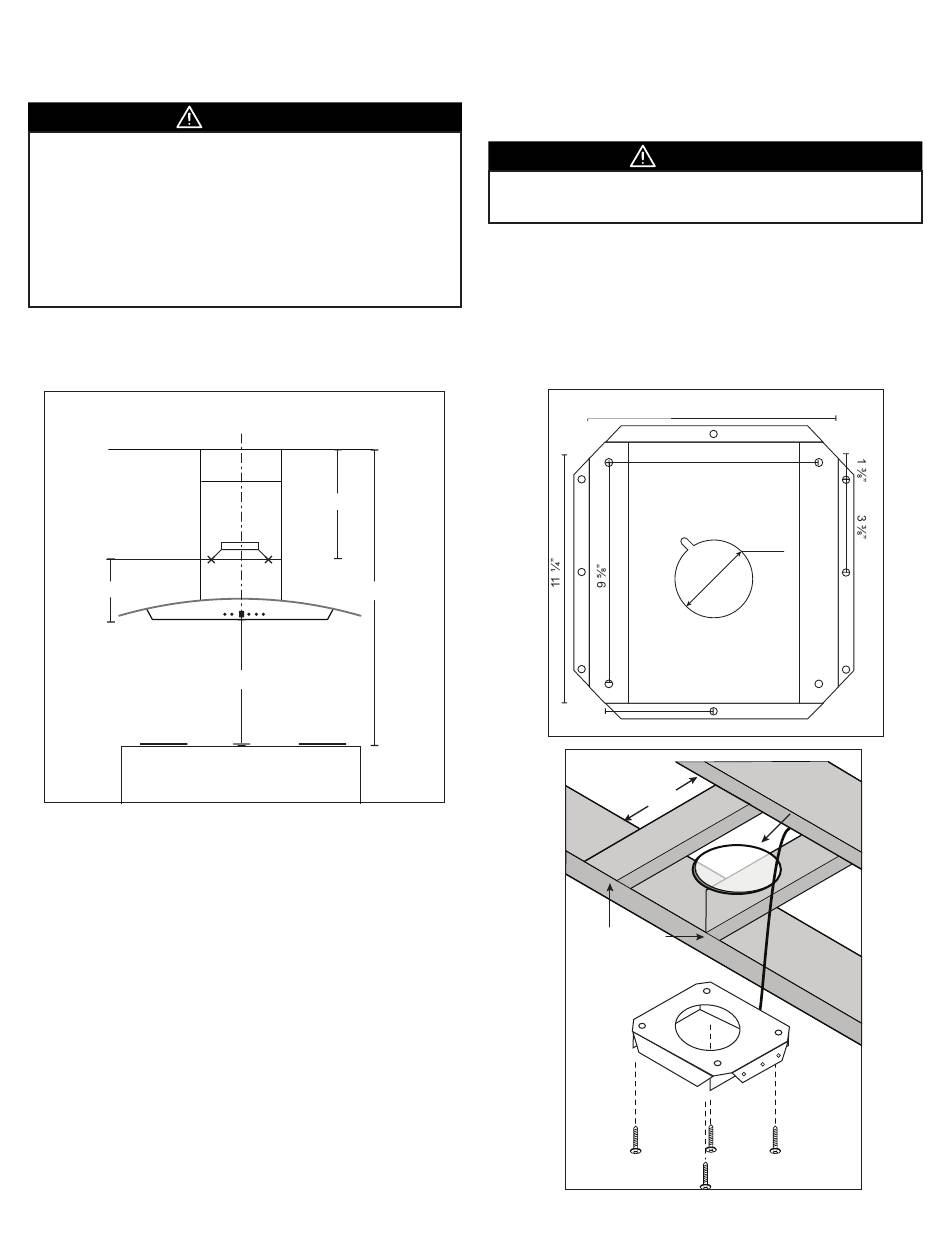

Measure Installation Height
Blower Top Box
B
Range Hood Bottom
Determine the required distance between the ceiling and the top of
the blower box (D) based upon ceiling height (C), desired height of
hood above cooktop (A) and unit height (B):
The height D is the installation height of the mounting bracket
(Figure 3) . If the installation height D is less than 22", the mounting
bracket and duct covers may need to be cut. The duct cover needs a
clean cut and must to be cut from bottom end sides for both inside
and outside pieces. For optimal clearance, the minimum mounting
should be 30" above the cooking surface.
10
Cyclone Canopy Installation - English
ISLAND HOOD INSTALLATION
CAUTION
C/L
D
C
A
D=C-A-B
Install Mounting Bracket
•
When building framework, always follow all applicable
construction codes and standards.
1.
Modify ceiling structure at hood location. Install 2 × 4
cross framing between ceiling joists using ceiling mounting
bracket dimension (Figure 4). The framework must be sized
to support the total weight of the hood.
2.
Finish ceiling surface. Be sure to mark the location of the
ceiling joists and cross framing. Bring house wiring through
finished ceiling.
Figure 4.
4 ⅜"
Figure 5.
Ceiling Joists
Cross Framing
Upper Mounting
Bracket
WARNING
10 ½"
8 ¾"
ø 6 ¾"
6" Round
Ductwork
