4.2 Operation of side doors.

Be careful not to get fingers caught when opening and closing the doors.
When the door is open, it must not be have weight put on it as the cot may tip
over. The maximum angle of opening is 90°.
- Open

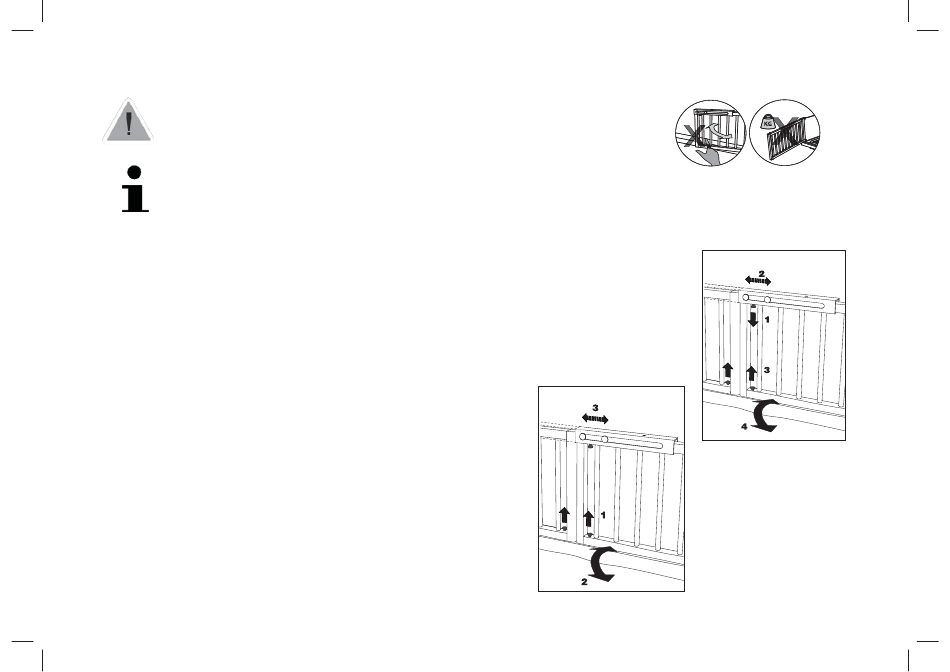

The child lock bracket is opened as follows:
1. Pull down on the locking pin at the top of the door.
2. Push the rail to one side.
3. Pull up the locking pins on the bottom of the doors.
(Folding doors have 2 locking pins on each door).
4. Open the doors.
- Close
1. Pull the locking pin on both doors at the bottom of the door up.
2. Close the doors. Ensure that the locking pin fits the hole in the
side rail.
3. Push the rail to one side until the locking pin is located.
4. Please ensure that the doors are sefely and securely closed.
