HOME
CONTROL

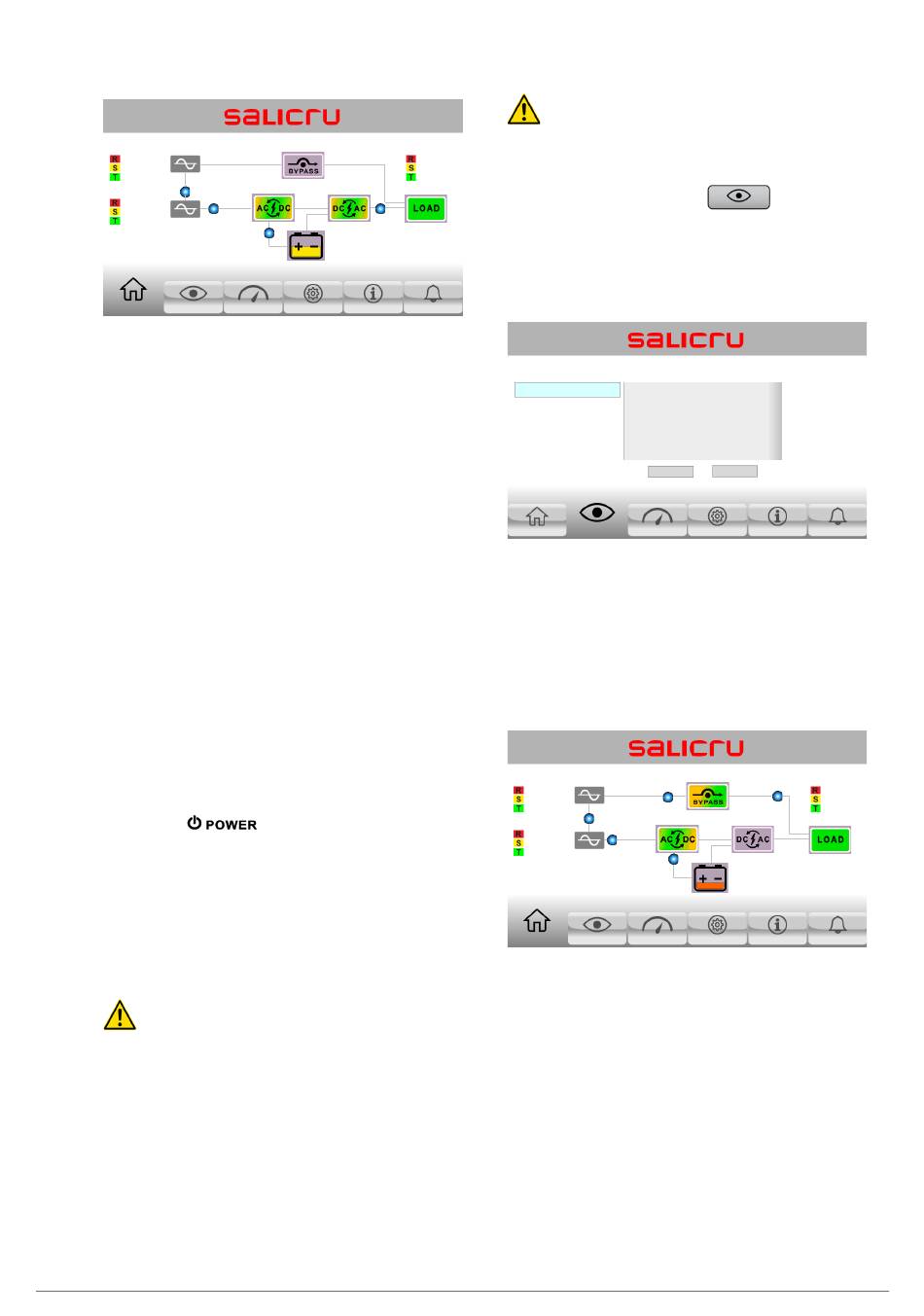

Fig. 54. Main screen in normal operation. The power flow should
match the one shown: input supplies rectifier; this simulta-
neously supplies the inverter and the battery charger; the
inverter supplies power to the output loads.
Set the switch corresponding to the UPS output on the
11.
control panel (external) to "On".
Set the output switch of the UPS to "On" (Q2) (only for
12.
tower format devices).
output terminals of the control panel.
Start the loads (or set their switches on the distribution
13.
board to "On", if any) progressively.
The system is operating fully, and the loads are pro-
14.
tected by the
UPS. You can obtain basic information on the
main screen of the control panel (synoptic, input, output and
battery voltages, battery and output load percentages). See
Fig. 54.
6.1.4. UPS start-up without mains power – Cold
Start (battery mode)
If necessary, the unit can be started up without an input line
•
and directly in battery mode.
Press the
•
screen then boots and after a few seconds, the home screen
appears. The unit starts in standby mode.
Press the "Control" icon. You are on the screen described in 7.2.
•
Press the UPS ON/OFF icon and validate; after a few seconds,
•
the UPS starts and switches directly to battery mode.
Start the load or loads, without exceeding the unit's nominal
•
power.
With this type of start-up, the level of charge must be con-
sidered and therefore the remaining autonomy available
and the risk posed by operating in this mode.
6.1.5. Procedure for transferring to bypass mode.
On specific occasions, for example temporarily while awaiting an
intervention on the UPS due to a fault, or as indicated by the Ser-
vice Technician, it may be useful to manually transfer the UPS to
bypass mode (see section 4.5.3).
108
50.0 Hz
0%
218. 9 V
218. 8 V
9 AH
98%
MEASURE
SETTING
INFO
The unit supplies voltage at the
key to start the power supply. The
In this operating mode, the loads will not be protected
2020.11.04
against power outages and line disturbances.
11:56:35
With the UPS operating in online mode (synoptic shown in Fig. 54),
230. 0 V
proceed as follows to switch to bypass mode:
230. 2 V
230. 1 V
Press the "CONTROL" icon
1.
screen described in 7.2.
Press "UPS ON/OFF".
2.
The "Turn off UPS" pop-up box appears with the options
3.
"YES" and "NO". Press "YES".
DATALOG
10 kVA
Line Mode
UPS ON/OFF
BATT TEST
MUTE ALL
EXIT PARALLEL
HOME
CONTROL
Fig. 55. "Turn off UPS" pop-up window. Press "YES".
The loads switch to being supplied directly from the
4.
static bypass
The unit's inverter is shutdown (waiting), but the rectifier and
charger are operating (the battery charge is maintained). The
operating mode indicated in the upper left corner of the main
screen switches to "Bypass Mode".
10 kVA
Bypass Mode
231. 8 V
233. 5 V
232. 8 V
50.0 Hz
231. 8 V
233. 5 V
232. 8 V
50.0 Hz
CONTROL
HOME
Fig. 56. Main screen in bypass mode. The power flow goes directly
from the bypass input to the output, via the static bypass
switch.
The unit is now in bypass operating mode, described in
5.
4.5.3.
6.2. PROCEDURE FOR STOPPING THE UPS.
This section describes the correct procedure for complete shut-
down of the UPS, leaving the loads without power, and the UPS
without any voltage at any of its input and output terminals.
This procedure may be necessary in interventions to change the
installation, remove the UPS, replace it, etc.
You are on the
Turn off UPS?
