Connections

Connecting the AV Receiver

Connecting Your Speakers

Connecting the Speaker Cables

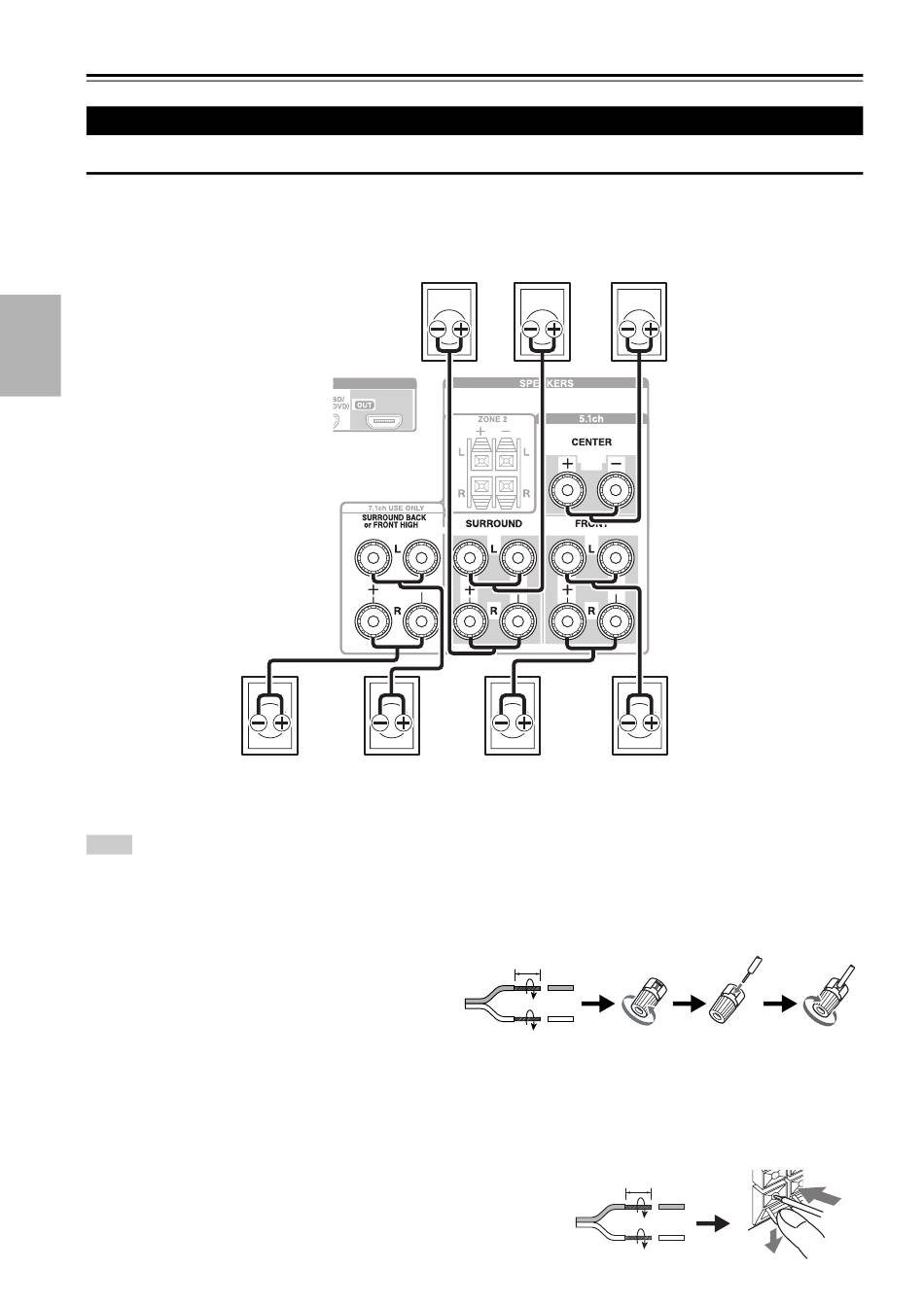

The following illustration shows which speaker should be connected to each pair of terminals. If you're using only one
surround back speaker, connect it to the SURROUND BACK or FRONT HIGH L terminals.
Tip
• You can specify whether surround back or front high speakers are connected in the "Speaker Configuration" menu
during Audyssey 2EQ
• The speakers you can connect will differ depending on the speaker system that you have.
■
Screw-type speaker terminals
Strip 1/2" to 5/8" (12 to 15 mm) of insulation from
the ends of the speaker cables, and twist the bare
wires tightly, as shown. (Supplied speaker cables are
already stripped.)
■
Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
■
Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown. (Supplied
speaker cables are already stripped.)
