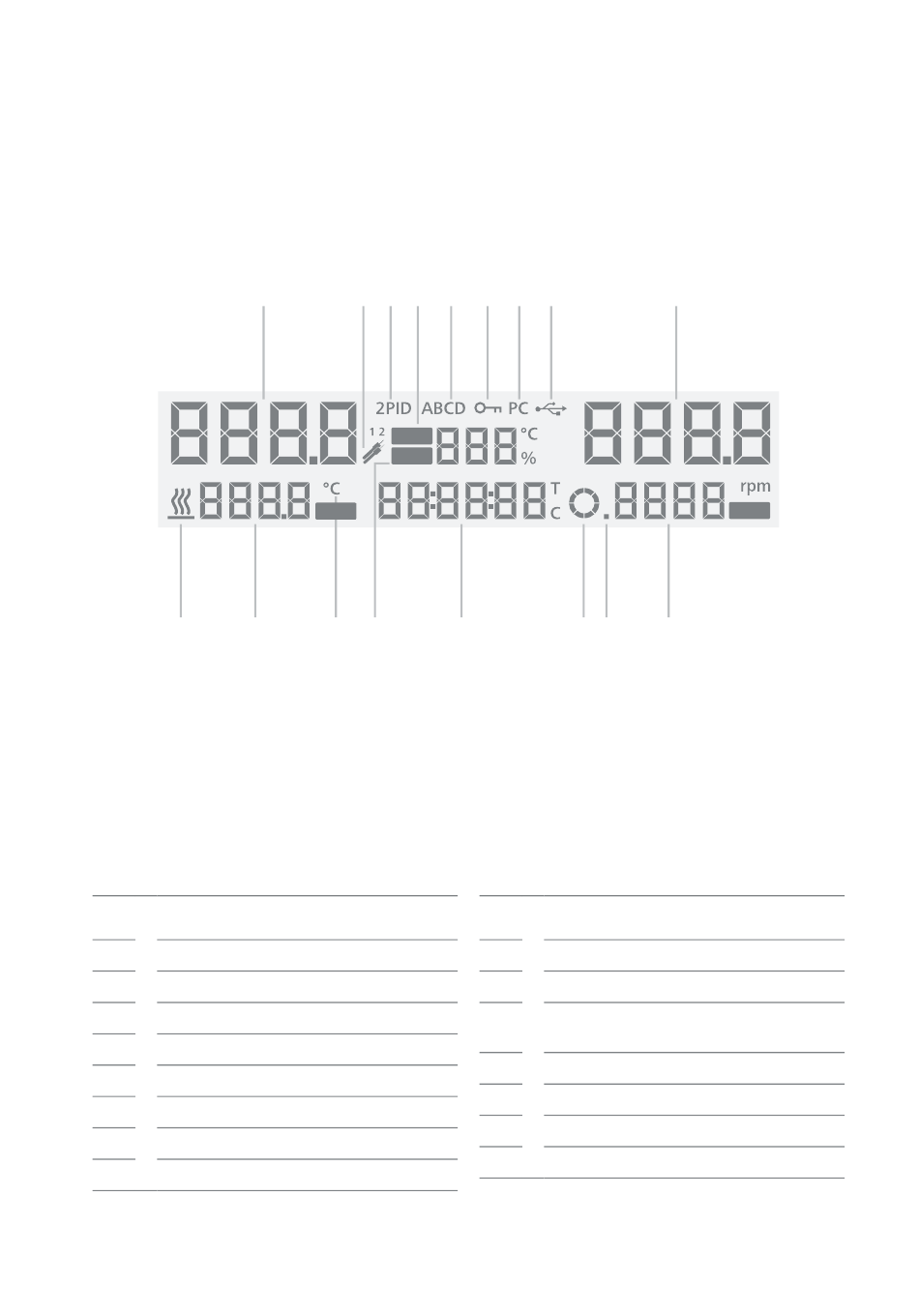

/// Display
07
06 02
Display
01 Set speed value
02 Set temperature value
03 Motor running / rotation direction
04 Timer / counter
05 Temperature value
06 Heating function activated
07 Actual hotplate temperature
08 Actual speed value
09 Temperature control mode
13 | 14 09 11 10 15 17
SAFE
VISC
SET
05 12 04
16
03 18 01
10 Operating mode
11 Safety circuit temperature
12 Viscosity trend value
13 | PT 1000 temperature sensor connected
14 ETS-D5 / ETS-D6 connected
15 All parameters locked
16 USB connection with PC
17 Connection with PC etablished
18 Intermittent mode activated
