■ If the ridger is not maintained or repaired cor‐
rectly, components may no longer operate cor‐
rectly and safety devices may be disabled.
This may result in serous or fatal injury to peo‐
ple.
► Do not maintain or repair the ridger your‐
self.
► If the ridger needs to be maintained or
repaired: consult a STIHL specialist dealer.
5 Preparing the Ridger for
Operation
5.1 Preparing the Ridger for Oper‐
ation
The following steps must be performed before
commencing work:
► Make sure that the following components are
in safe condition:
– Ridger, 4.5.1.
► Clean the ridger,
► Assemble the ridger,
► If the steps cannot be performed: do not use
the ridger and consult a STIHL specialist
dealer.
6 Assembling the Ridger
6.1 Assembling the Ridger

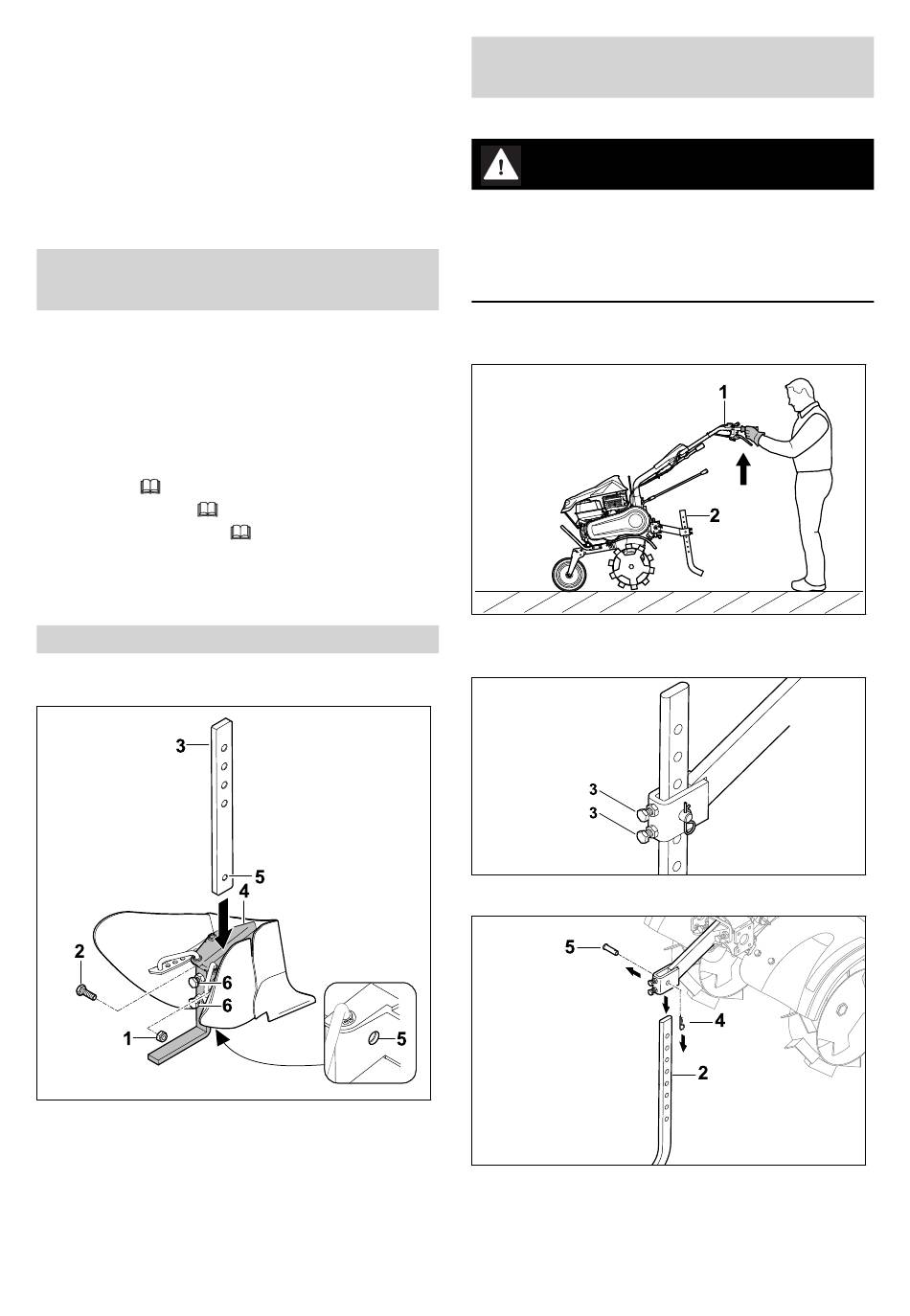

► Unscrew nut (1) and remove bolt (2).
► Insert bracket (3) into the guide of ridger (4) so
bores (5) align.
► Insert bolt (2).
► Screw on nut (1) and tighten firmly.
► Tighten screws (6).
Bracket (3) is secured.
12
12.
6.
5 Preparing the Ridger for Operation
7 Attaching and Removing
the Ridger
7.1 Attaching the Ridger
WARNING
■ The tiller may tip over or move when attaching
the ridger. This may result in injury to people
and damage to property.
► Always work in pairs when attaching the
ridger.
► Stop the engine.
► Place the tiller on a level surface.
► Have a second person lift and hold tiller (1) so
blade spur (2) can be removed.
► Loosen screws (3).
► Detach retaining pin (4) and remove pin (5).
Blade spur (2) can be removed.
