English

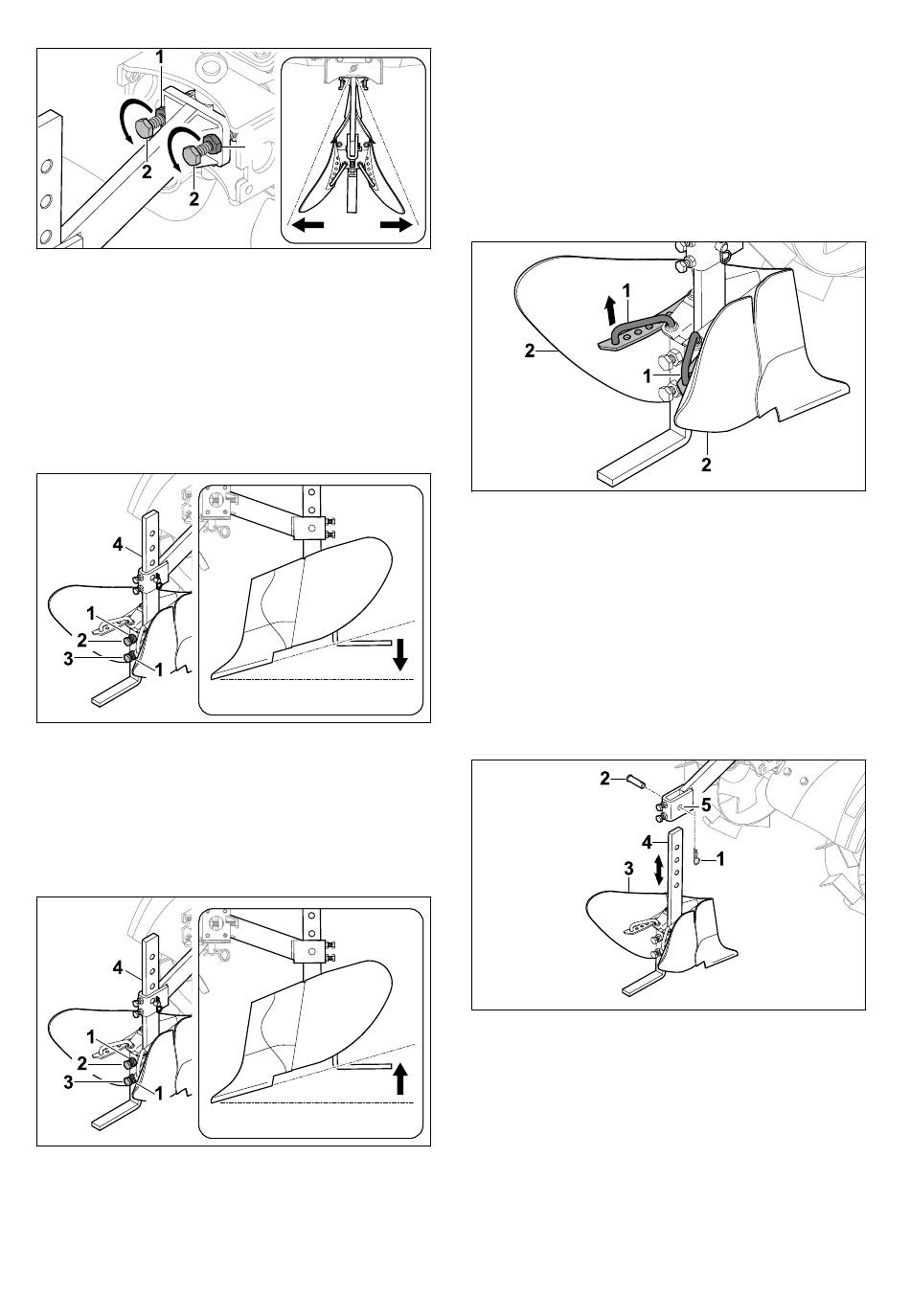

► Loosen lock nuts (1).
► Unscrew screws (2) by turning anti-clockwise.
► Tighten lock nuts (1) firmly.
The swivel range is increased.
8.2 Adjusting the Working Angle
The working angle of the ridger can be adjusted.
► Stop the engine.
► Place the tiller on a level surface.
► Loosen lock nuts (1).
► Loosen screw (2).
► Unscrew screw (3) by turning anti-clockwise.
► Tighten screw (2) so bracket (4) is locked in
place.
► Tighten lock nuts (1) firmly.
The working angle is decreased.
► Loosen lock nuts (1).
► Loosen screw (2).
► Screw in screw (3) by turning clockwise.
► Tighten screw (2) so bracket (4) is locked in
place.
14
► Tighten lock nuts (1) firmly.
The working angle is increased.
8.3 Adjusting the Working Width
The working width of the ridger can be adjusted
to five levels.
► Stop the engine.
► Place the tiller on a level surface.
► Lift catches (1).
► Adjust ridger wings (2) so catches (1) can be
hooked into a bore.
► Allow catches (1) to engage.
The ridger wings are adjusted.
8.4 Adjusting the Working Depth
The working depth of the ridger can be adjusted
to four levels.
► Stop the engine.
► Place the tiller on a level surface.
► Detach retaining pin (1) and remove pin (2).
► Adjust ridger (3) so the bores in bracket (4)
and adapter (5) align.
► Insert pin (2).
► Push retaining pin (1) through the bore in
pin (2).
The ridger is locked in place and the working
depth is adjusted.
8 Working with the Ridger
