4.0 CONTROLS

Before operating the machine ensure that you have
well understood the operation and function of all
the controls.
A. To turn the machine on, rotate the ON/OFF
switch to position 1: the pump motor starts
turning and remains in operation until when the
machine is turned off. The power required is
minimum when the hydraulic cylinders are not in
use.
NOTE:
IT IS SUGGESTED TO TURN THE MACHINE OFF AFTER
EVERY MOUNTING OR DEMOUNTING OPERATION, IF
THE TIME BEFORE THE NEXT OPERATION IS LONGER
THAN 5 MINUTES.

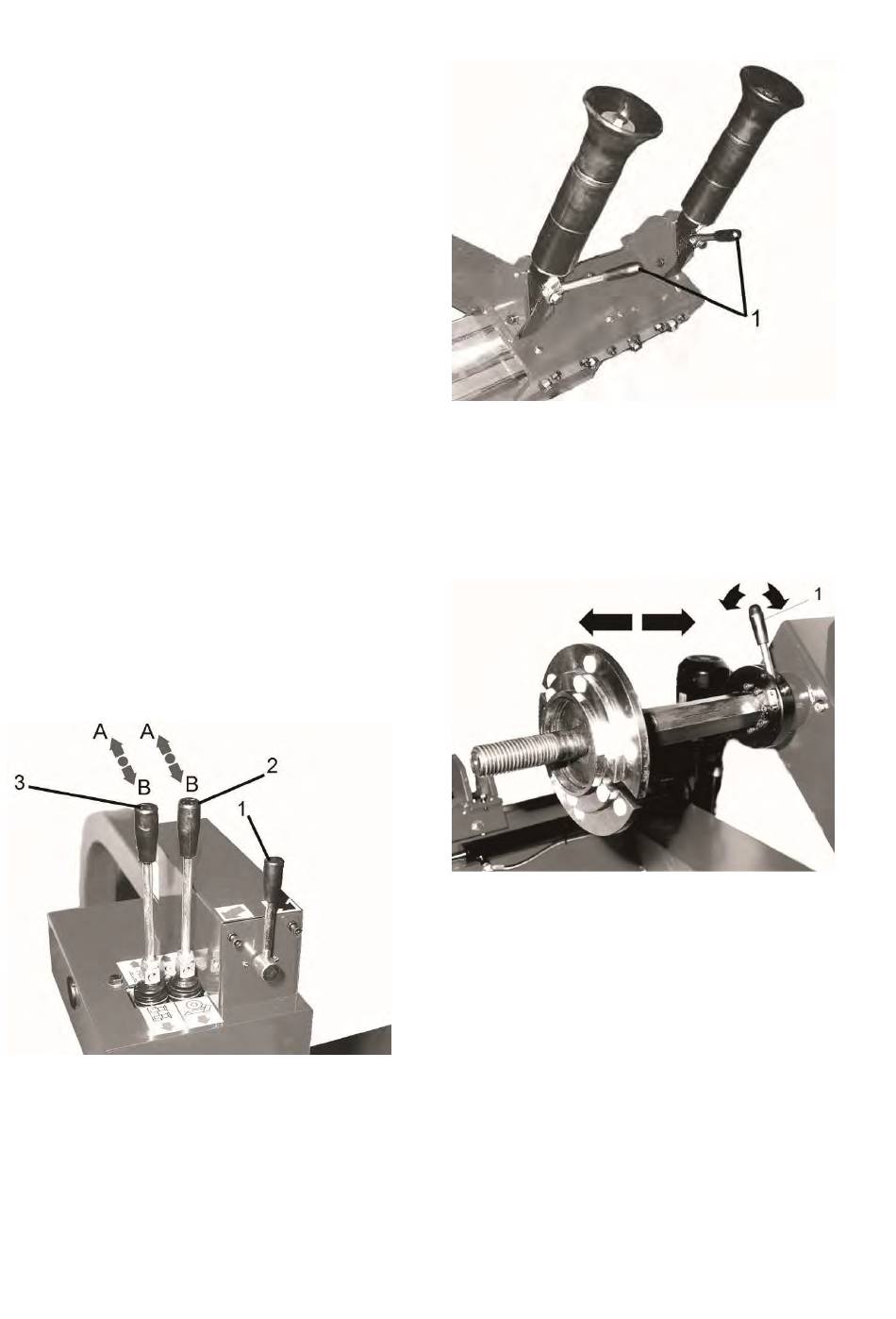

B. Operate the chuck rotation switch (#1 Fig.14) to
the right : the chuck rotates clockwise.
Operate the chuck rotation switch to the left : the
chuck rotates counter-clockwise.
C. Operate the chuck arm control (#2 Fig.14) to
position A : the chuck arm moves upwards.
Operate the control to position B : the chuck arm
moves downwards.
D. Operate the toolholder carriage control (#3
Fig.14) to position A : the carriage moves towards
the machine.
Operate the control to position B : the carriage
moves away from the machine.
Fig.14
E. Use the toolholder arm lock levers (#1 Fig.15) to
lock and release the toolholder arms.
HOFMANN behält sich das Recht zu Änderungen ohne Vorankündigung vor _ HOFMANN reserves the right of modification without notice _ Document non contractuel
monty 3650
Betriebsanleitung Operator's Manual Notice d' utilisation
270
Modéle: monty 3650_ DE-EN-FR_ Release December 2018
Fig.15
F. The hexagonal shaft can be locked in 3 different
positions. Operate the chuck shaft lock/release
lever (#1 Fig.16) and slide axially the shaft.
Make sure that the shaft is properly locked in
position.
Fig.16
